Parts Catalog

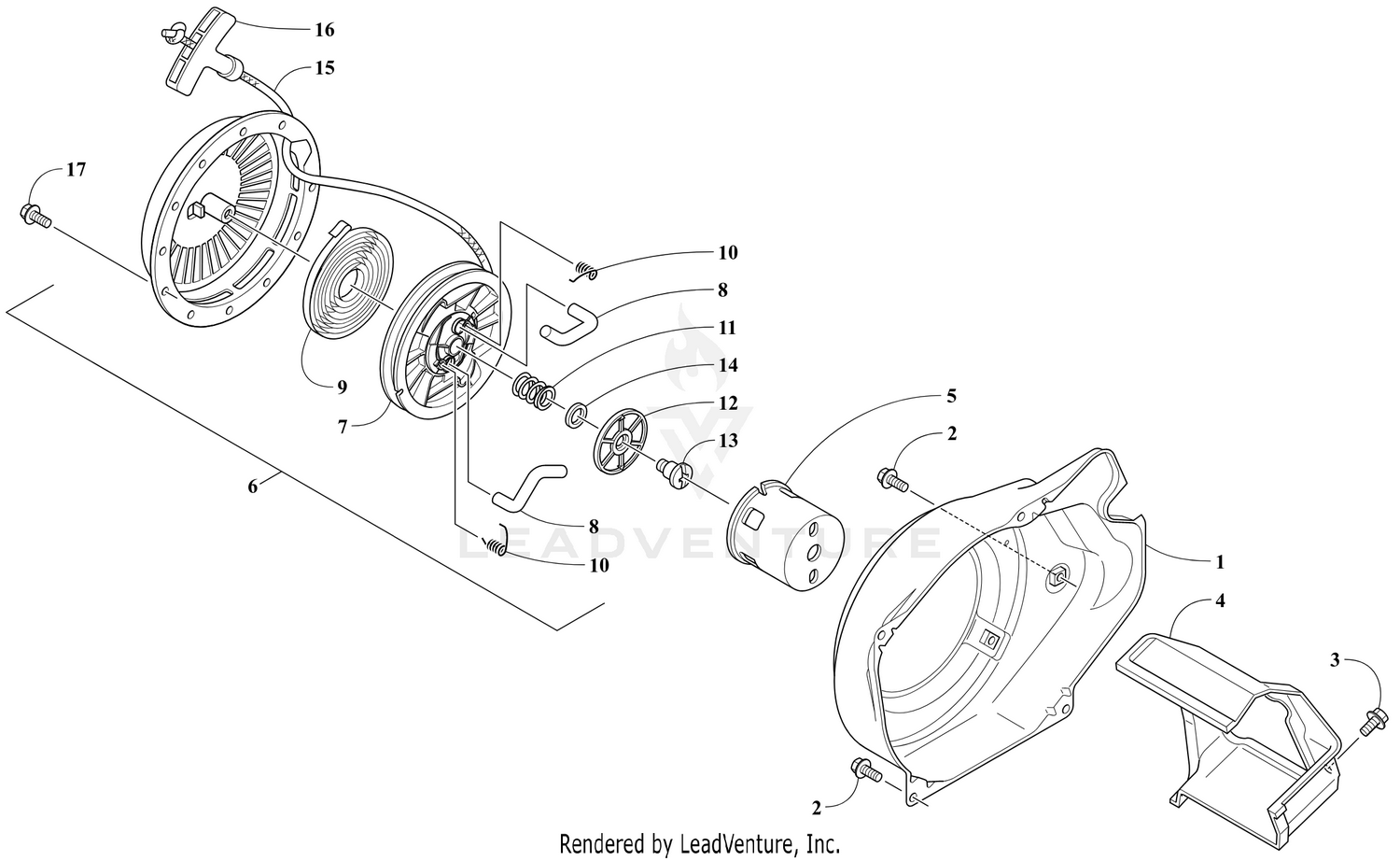

RECOIL STARTER AND AIR SHROUD ASSEMBLY [106091]

Parts (15)

Ref	Part Number	Description
1	3021-749	Cowling, Ventilation Price: $74.95
2	3021-628	Screw, Cap Price: $2.48
3	3021-717	Screw, Cap Price: $3.08
4	3020-052	Shroud, Air Price: $36.95
5	3021-763	Pulley, Starter Price: $29.95
7	3021-752	Reel Price: $37.95
8	3021-753	Arm, Ratchet Price: $13.04
9	3021-754	Spring, Spiral Price: $30.95
10	3021-755	Spring, Return Price: $8.27
11	3021-756	Spring, Friction Price: $8.27
12	3021-757	Plate, Drive Price: $15.42
13	3021-758	Screw, Shoulder Price: $15.42
14	3021-759	Washer, Thrust Price: $15.42
15	3021-760	Rope, Starter Price: $31.95
16	3021-761	Handle Price: $21.37
