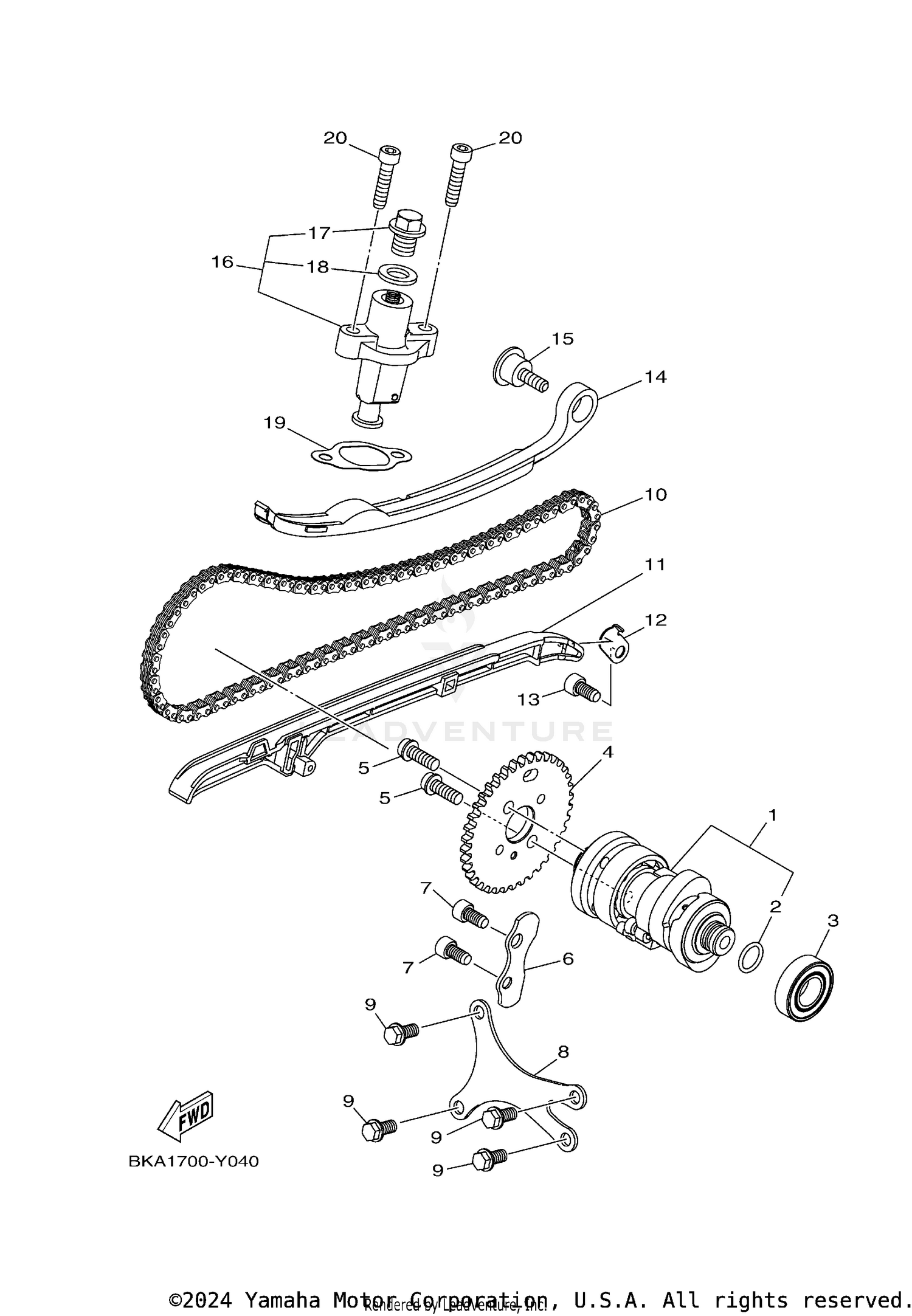

CAMSHAFT & CHAIN
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B74-E2170-00-00 | CAMSHAFT ASSY 1 Price: $124.99 |
| 2 | 93210-12801-00 | O-RING Price: $1.75 |
| 3 | 93306-002XM-00 | BEARING Price: $17.49 |
| 4 | B74-E2176-00-00 | SPROCKET, CAM CHAIN Price: $41.99 |
| 5 | 90110-06405-00 | BOLT, HEXAGON SOCKET HEAD Price: $1.50 |
| 6 | BKA-E112F-00-00 | PLATE 2 Price: $1.95 |
| 7 | 91317-06012-00 | BOLT This part replaces 90110-06187-00. Price: $9.49 |
| 8 | BKA-E111F-00-00 | PLATE Price: $6.49 |
| 9 | 95E32-06012-00 | BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 10 | 94568-H8110-00 | CHAIN Price: $71.99 |
| 11 | B74-E2231-00-00 | GUIDE, STOPPER 1 Price: $46.99 |
| 12 | B74-E2233-00-00 | PLATE, GUIDE STOPPER 1 Price: $1.55 |
| 13 | 91317-06012-00 | BOLT This part replaces 90110-06182-00. Price: $9.49 |
| 14 | B74-E2241-01-00 | GUIDE, STOPPER 2 Price: $32.99 |
| 15 | 1DB-E2228-00-00 | BOLT Price: $2.75 |
| 16 | 31G-12210-01-00 | TENSIONER ASSY, CAM CHAIN Price: $187.99 |
| 17 | 31G-12222-00-00 | PLUG Price: $26.99 |
| 18 | 31G-12214-00-00 | GASKET Price: $15.49 |
| 19 | B74-E2213-00-00 | CASE, CHAIN TENSIONER Price: $4.65 |
