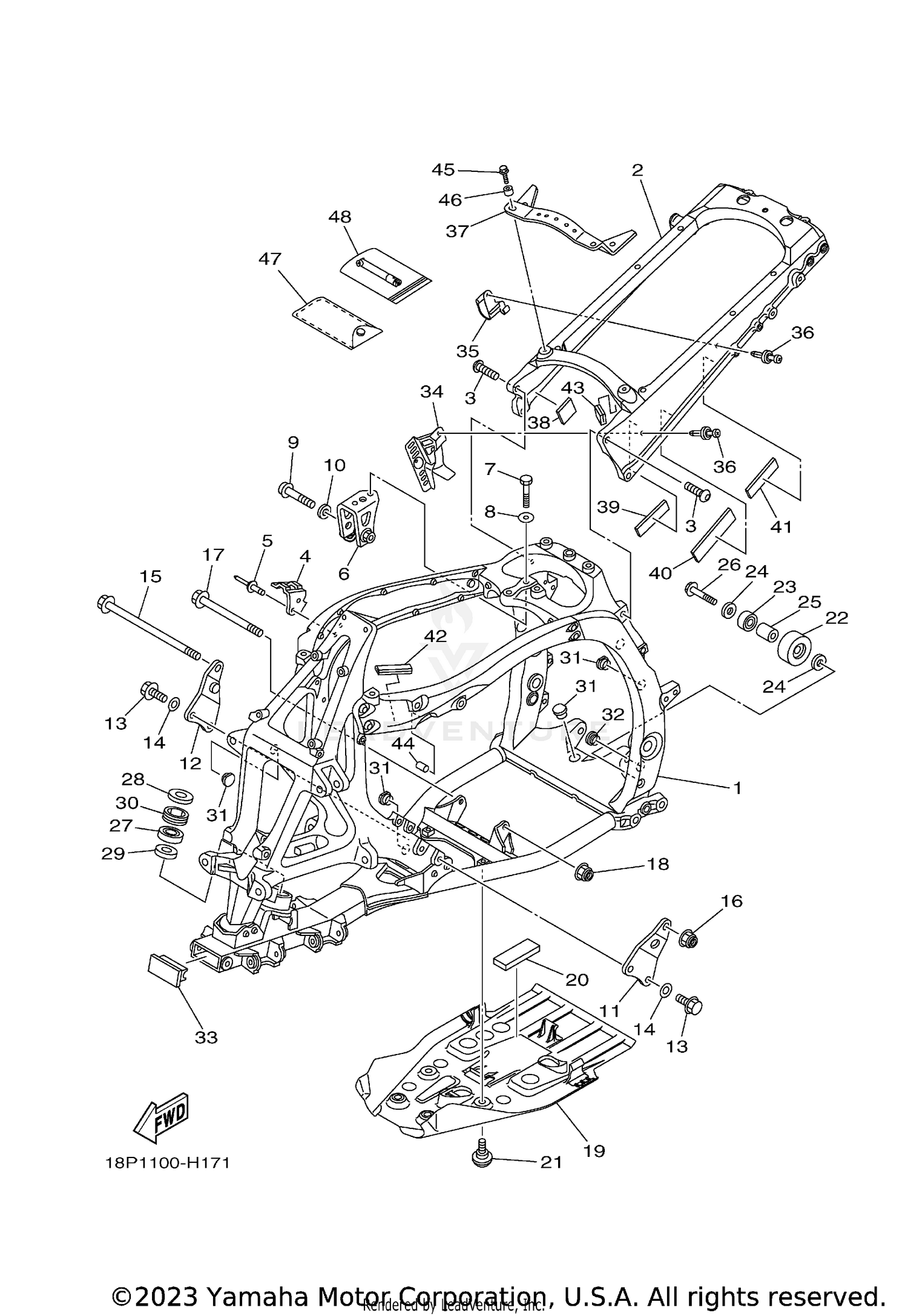

| Ref | Part Number | Description |
|---|
| 1 |
1TD-F1101-99-00 |
FRONT FRAME COMP. Price: $2,158.99 |
| 2 |
18P-F1190-59-00 |
REAR FRAME COMP. Price: $347.99 |
| 3 |
90149-10034-00 |
SCREW Price: $9.49 |
| 4 |
18P-2133H-00-00 |
BRKT., BRAKE PIPE 1 Price: $21.99 |
| 5 |
90267-48016-00 |
RIVET, BLIND (4.8X16.4 YELLOW This part replaces 90267-48176-00. Price: $11.49 |
| 6 |
18P-21315-01-00 |
STAY, ENGINE 1 Price: $54.99 |
| 7 |
97013-08035-00 |
BOLT This part replaces 97012-08035-00. Price: $6.49 |
| 8 |
90201-08053-00 |
WASHER, PLATE Price: $6.49 |
| 9 |
90110-10029-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 10 |
90201-10036-00 |
WASHER, PLATE Price: $8.49 |
| 11 |
18P-21316-00-00 |
STAY, ENGINE 2 Price: $35.99 |
| 12 |
18P-21317-00-00 |
STAY, ENGINE 3 Price: $35.99 |
| 13 |
95817-10030-00 |
BOLT, FLANGE This part replaces 95812-10030-00. Price: $9.49 |
| 14 |
90201-10043-00 |
WASHER, PLATE Price: $2.65 |
| 15 |
90105-10350-00 |
BOLT, FLANGE Price: $12.49 |
| 16 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 17 |
90105-10148-00 |
BOLT, FLANGE Price: $8.49 |
| 18 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 19 |
18P-21471-00-00 |
PROTECTOR, ENGINE Price: $71.99 |
| 20 |
90520-10021-00 |
DAMPER, PLATE Price: $2.50 |
| 21 |
90109-06201-00 |
BOLT This part replaces 90109-06198-00. Price: $6.49 |
| 22 |
5TG-22178-01-00 |
TENSIONER Price: $24.99 |
| 23 |
93300-60804-00 |
BEARING Price: $13.49 |
| 24 |
90201-08043-00 |
WASHER, PLATE Price: $8.49 |
| 25 |
90387-086N4-00 |
COLLAR Price: $10.49 |
| 26 |
90105-08112-00 |
BOLT, FLANGE Price: $9.49 |
| 27 |
93306-20352-00 |
BEARING Price: $36.99 |
| 28 |
93102-25081-00 |
OIL SEAL Price: $6.49 |
| 29 |
93102-25099-00 |
OIL SEAL Price: $14.49 |
| 30 |
2GU-23872-00-00 |
HOLDER, BEARING This part replaces 5GT-23872-00-00. Price: $28.99 |
| 31 |
90338-20183-00 |
PLUG Price: $12.49 |
| 32 |
90338-16007-00 |
PLUG Price: $16.49 |
| 33 |
18P-2111A-01-00 |
CAP, MAIN PIPE Price: $5.99 |
| 34 |
18P-21335-01-00 |
CLAMP, WIRE HARNES Price: $4.75 |
| 35 |
18P-21336-01-00 |
CLAMP, WIRE HARNES Price: $5.99 |
| 36 |
90269-05001-00 |
RIVET Price: $3.50 |
| 37 |
18P-21131-00-00 |
REINF., SEAT RAIL Price: $45.99 |
| 38 |
3KJ-24723-00-00 |
DAMPER, SEAT Price: $7.49 |
| 39 |
4XY-21638-00-00 |
DAMPER 1 Price: $7.49 |
| 40 |
2S2-2177M-00-00 |
DAMPER, LOCATING 3 Price: $7.49 |
| 41 |
1C3-2214F-00-00 |
DAMPER 1 Price: $5.99 |
| 42 |
4XY-28347-00-00 |
MOLE 3 Price: $8.49 |
| 43 |
3YX-2171L-00-00 |
MOLE, SIDE COVER 1 Price: $3.35 |
| 44 |
90445-112E0-00 |
HOSE (L70) This part replaces 90445-11418-00. Price: $9.49 |
| 45 |
90105-06084-00 |
BOLT, FLANGE Price: $4.95 |
| 46 |
90387-06197-00 |
COLLAR Price: $9.49 |
| 47 |
1PE-F8100-01-00 |
TOOL KIT Price: $17.99 |
