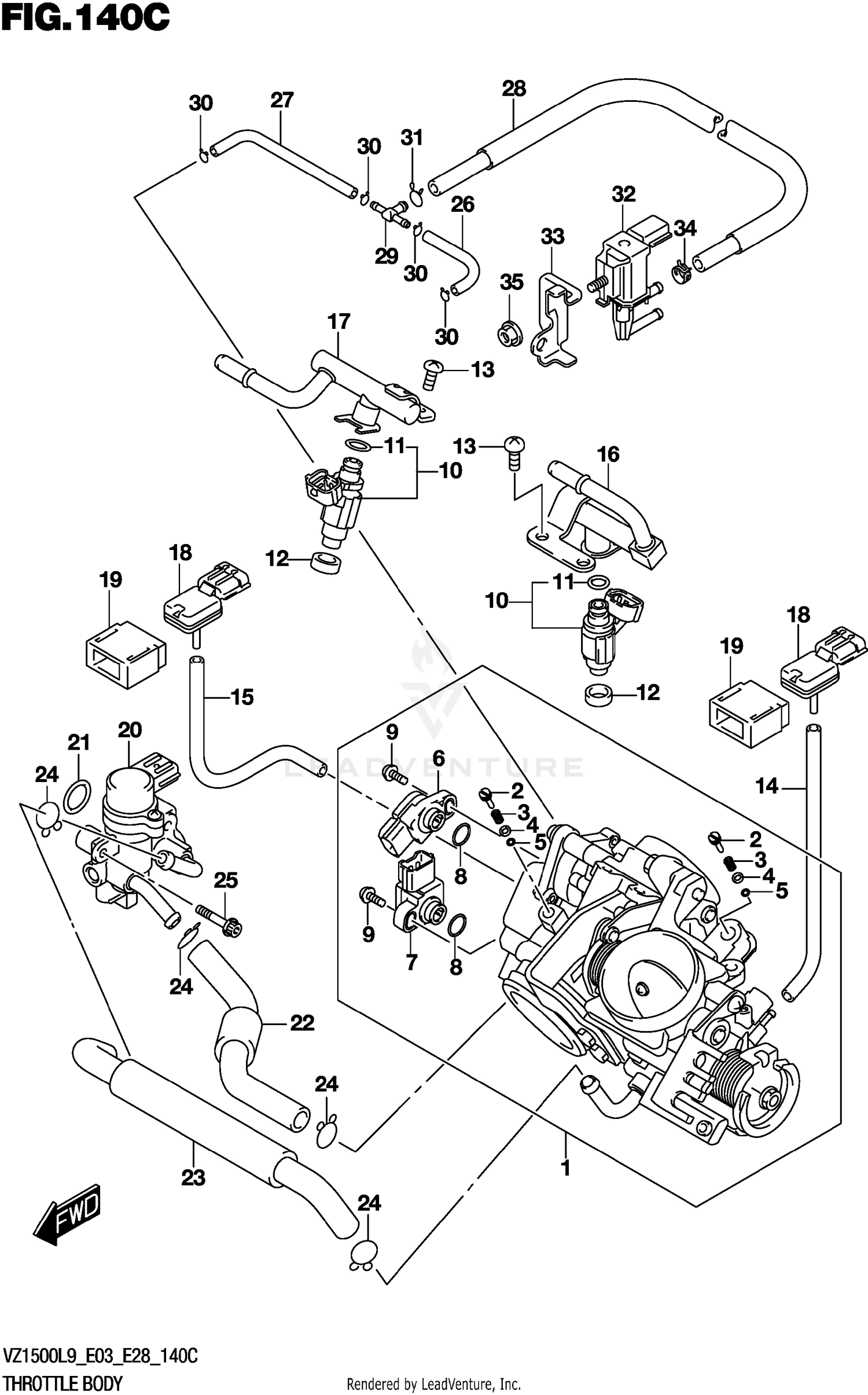

THROTTLE BODY (E33)
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13405-40H10 | BODY Price: Call Us |
| 2 | 13269-33E00 | SCREW Price: $14.10 |
| 3 | 13268-48700 | SPRING,THROTTLE SCREW Price: $5.36 |
| 4 | 13606-47A00 | WASHER Price: $3.55 |
| 5 | 13295-29901 | O-RING This part replaces 13295-29900. Price: $5.36 |
| 10 | 15710-48G00 | INJECTOR ASSY Price: $339.07 |
| 11 | 15717-58B00 | O-RING Price: $12.30 |
| 14 | 13683-48G01 | HOSE This part replaces 13683-48G00. Price: $34.42 |
| 15 | 13683-40H10 | HOSE Price: $29.16 |
| 16 | 15730-40H00 | PIPE ASSY Price: $127.26 |
| 17 | 15730-40H10 | PIPE ASSY Price: $133.51 |
| 18 | 18591-41F00 | SENSOR Price: $330.65 |
| 19 | 18595-33G00 | HOLDER Price: $17.83 |
| 20 | 18117-40H01 | VALVE Price: $336.44 |
| 21 | 09280-14011 | O RING (D:2.5,ID:13.8) Price: $5.81 |
| 22 | 13697-40H00 | HOSE Price: $12.89 |
| 23 | 13698-40H00 | HOSE Price: $18.06 |
| 24 | 09401-13102 | CLIP Price: $3.31 |
| 25 | 07120-0525A | BOLT Price: Call Us |
| 26 | 13683-40H00 | HOSE Price: Call Us |
| 27 | 13683-22H10 | HOSE Price: Call Us |
| 28 | 13683-18H21 | HOSE Price: $80.88 |
| 29 | 13685-04F10 | NIPPLE Price: $11.97 |
| 30 | 09401-06101 | CLIP (ID:6.5) Price: $2.48 |
| 31 | 09401-10401 | CLIP This part replaces 09401-10410. Price: $1.75 |
| 32 | 18117-52G10 | VALVE Price: $161.76 |
| 33 | 18119-40H00 | BRACKET Price: $9.35 |
| 34 | 09401-10409 | CLIP (ID:10.5) Price: $2.75 |
