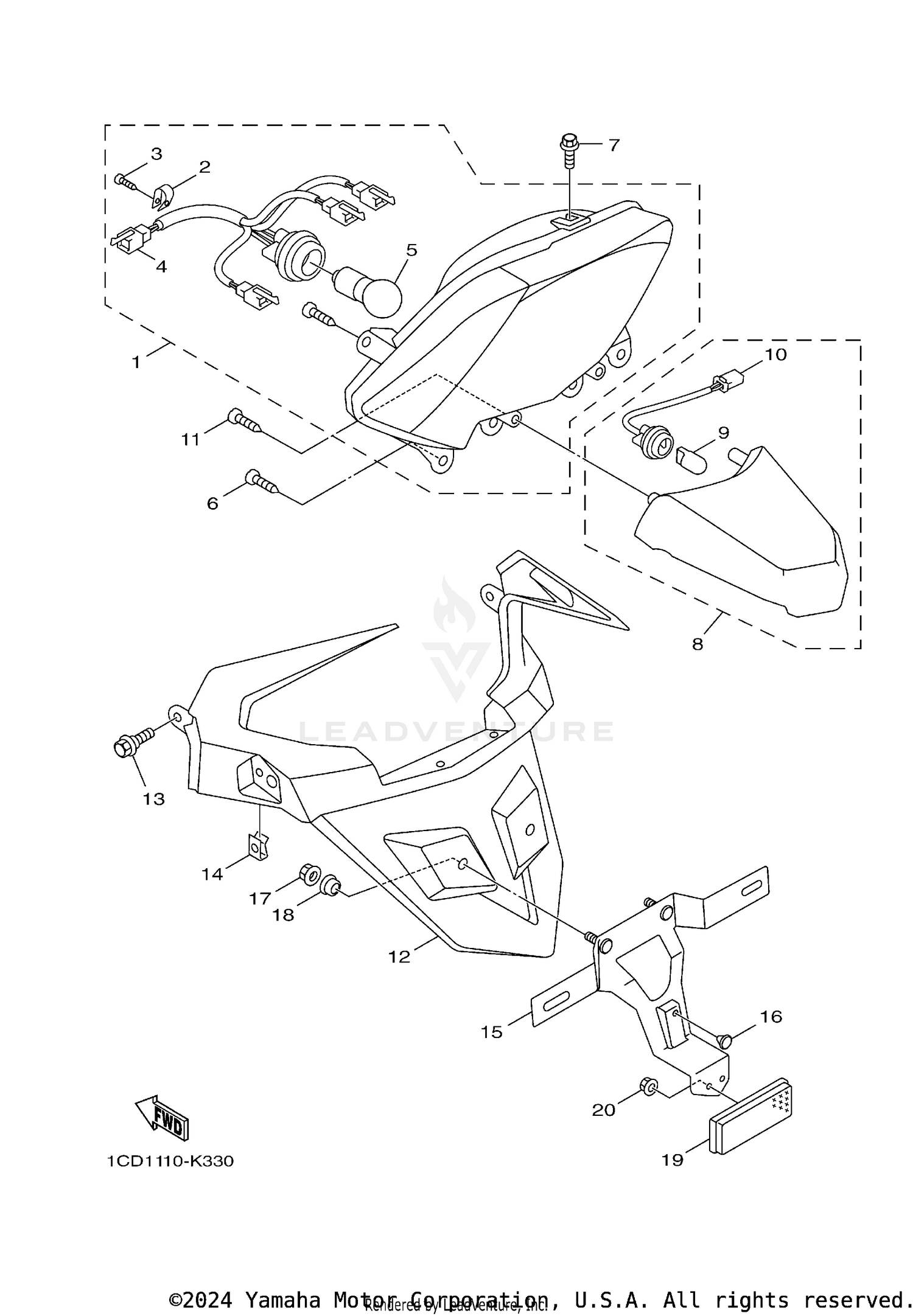

| Ref | Part Number | Description |
|---|
| 1 |
1CD-H4700-01-00 |
TAILLIGHT ASSY Price: $37.99 |
| 2 |
1CD-H4746-00-00 |
PLATE, SEAT BASE Price: $1.60 |
| 3 |
1CD-H4724-00-00 |
SCREW, LENS FITTING Price: $0.80 |
| 4 |
1CD-H473A-00-00 |
CORD ASSY Price: $17.49 |
| 5 |
5ML-H4714-00-00 |
BULB (12V-P21/5W) Price: $8.49 |
| 6 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 7 |
90109-06043-00 |
BOLT Price: $3.00 |
| 8 |
1CD-H4745-01-00 |
LICENSE LIGHT UNIT ASSY Price: $17.49 |
| 9 |
5FM-H4347-00-00 |
BULB (12V-5W) Price: $33.99 |
| 10 |
1CD-H4735-00-00 |
SOCKET CORD ASSY Price: $5.49 |
| 11 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 12 |
1CD-F1685-00-00 |
BRACKET, LICENSE Price: $9.49 |
| 13 |
90109-06043-00 |
BOLT Price: $3.00 |
| 14 |
90183-05827-00 |
NUT, SPRING This part replaces 90183-05816-00. Price: $1.65 |
| 15 |
1CD-H4751-00-00 |
BRACKET, LICENSE Price: $17.49 |
| 16 |
3D1-F163A-00-00 |
COVER, REAR FENDER 1 Price: $1.15 |
| 17 |
95617-06100-00 |
NUT, U This part replaces 95607-06100-00. Price: $2.90 |
| 18 |
90201-06557-00 |
WASHER, PLATE Price: $3.55 |
| 19 |
46P-H5130-00-00 |
REAR REFLECTOR ASSY Price: $3.50 |
