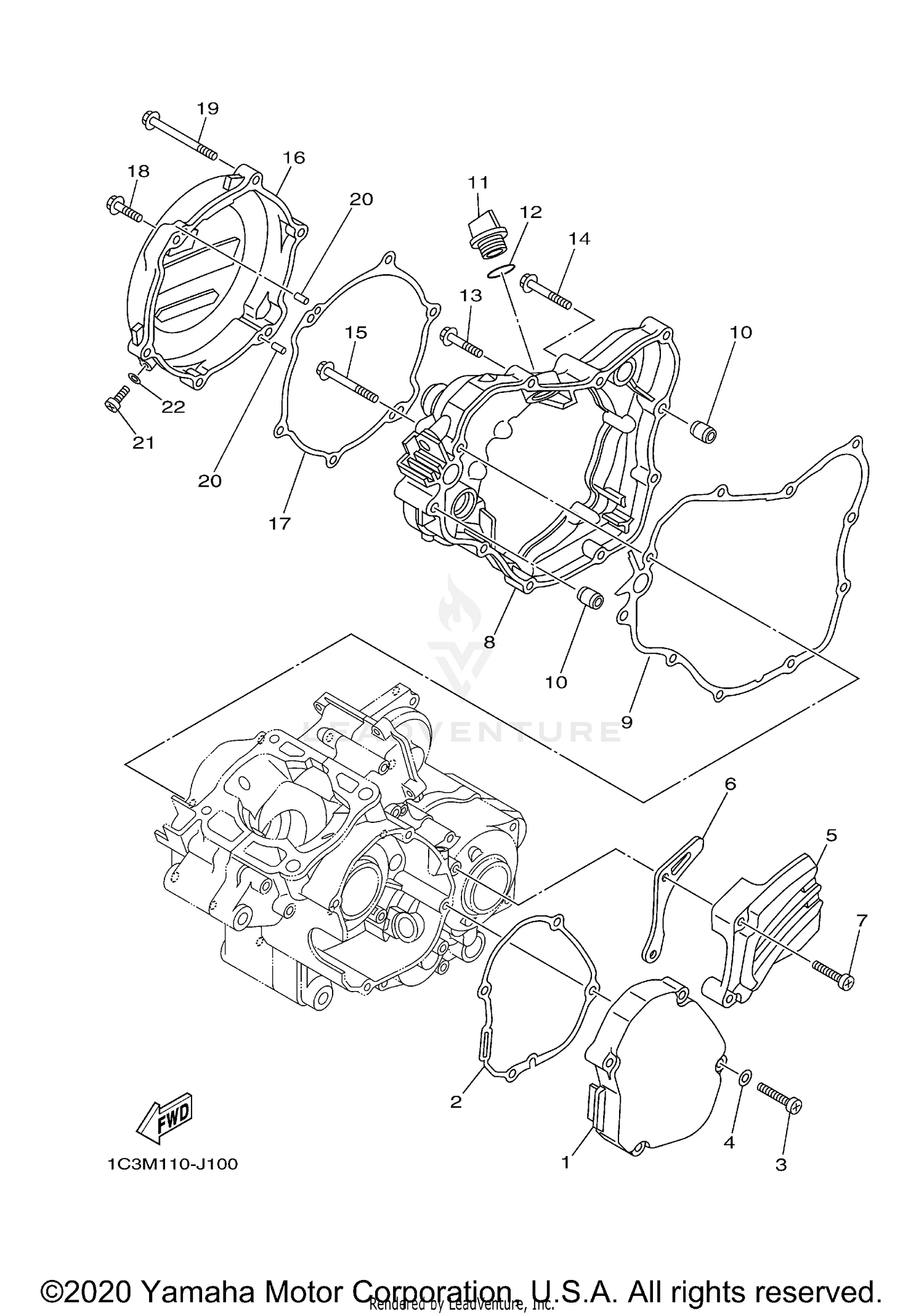

| Ref | Part Number | Description |
|---|
| 1 |
1C3-15411-10-00 |
COVER, CRANKCASE 1 Price: $46.99 |
| 2 |
1C3-15451-00-00 |
GASKET, CRANKCASE COVER 1 Price: $17.99 |
| 3 |
97885-06030-00 |
SCREW, PAN HEAD This part replaces 92502-06030-00. Price: $5.05 |
| 4 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 5 |
1C3-15421-10-00 |
COVER, CRANKCASE 2 Price: $69.99 |
| 6 |
1C3-17466-00-00 |
GUIDE, CHAIN Price: $15.49 |
| 7 |
98502-06030-00 |
SCREW, PAN HEAD Price: $2.35 |
| 8 |
1C3-15431-03-00 |
COVER, CRANKCASE 3 This part replaces 1C3-15431-01-00. Price: $146.99 |
| 9 |
1C3-15462-00-00 |
GASKET, CRANKCASE COVER 3 Price: $18.99 |
| 10 |
91808-16023-00 |
PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
| 11 |
3Y1-15363-10-00 |
PLUG, OIL Price: $19.99 |
| 12 |
93210-19123-00 |
O-RING Price: $8.99 |
| 13 |
95022-06030-00 |
BOLT, FLANGE Price: $1.80 |
| 14 |
95022-06040-00 |
BOLT, FLANGE Price: $3.70 |
| 15 |
95022-06050-00 |
BOLT, FLANGE Price: $1.80 |
| 16 |
1C3-15415-10-00 |
COVER, 1 Price: $129.99 |
| 17 |
1C3-15463-00-00 |
GASKET, COVER PINION 2 Price: $19.99 |
| 18 |
95022-06065-00 |
BOLT, FLANGE Price: $2.10 |
| 19 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 20 |
93604-10011-00 |
PIN, DOWEL Price: $8.49 |
| 21 |
92012-06012-00 |
BOLT, BUTTON HEAD Price: $4.70 |
