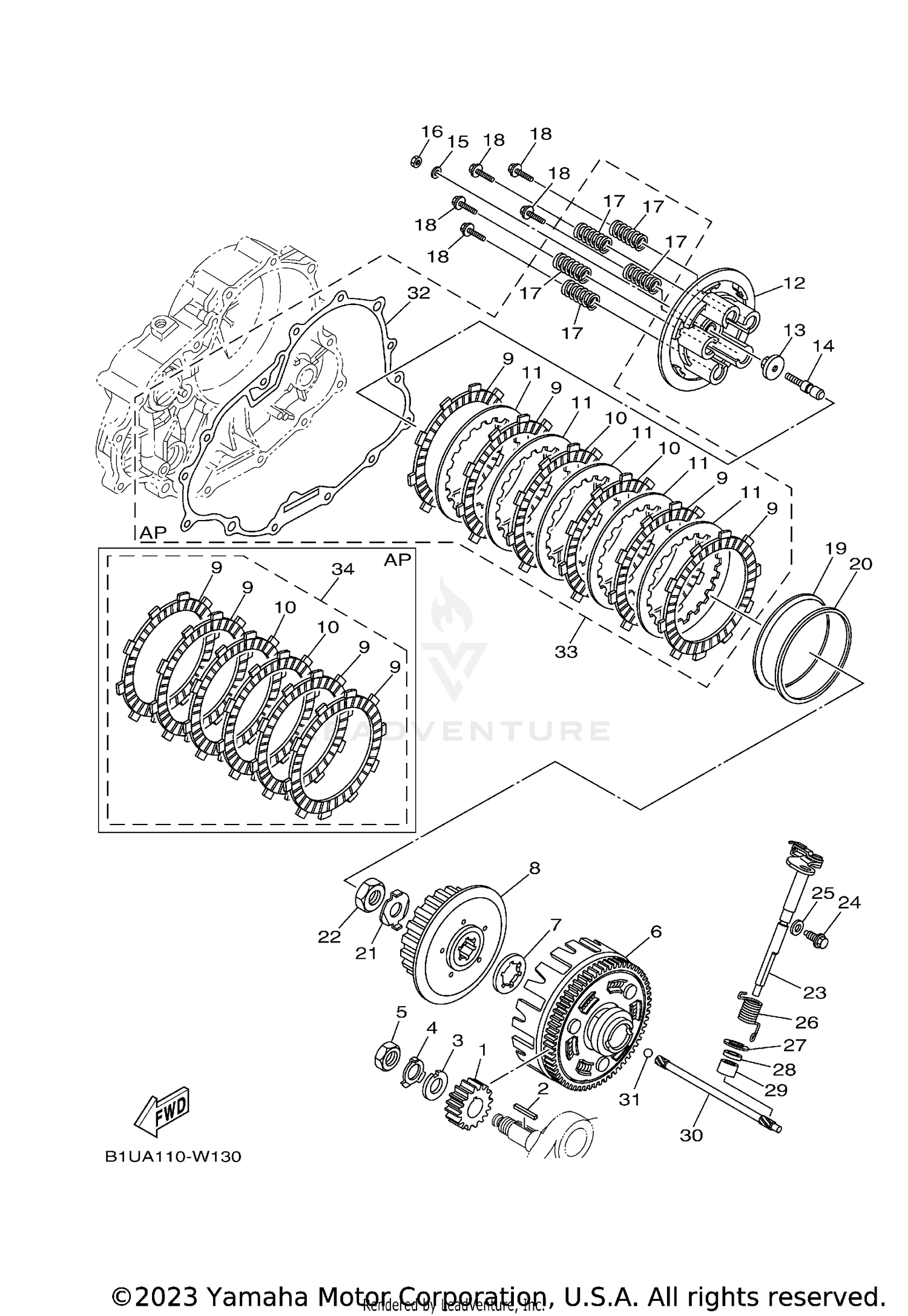

| Ref | Part Number | Description |
|---|
| 1 |
5XT-16111-00-00 |
GEAR, PRIMARY DRIVE (24T) Price: $83.99 |
| 2 |
90282-05077-00 |
KEY, STRAIGHT Price: $9.49 |
| 3 |
90214-16063-00 |
WASHER, CLAW Price: $16.49 |
| 4 |
90215-16293-00 |
WASHER, LOCK Price: $11.49 |
| 5 |
90170-16425-00 |
NUT Price: $10.49 |
| 6 |
5XT-16150-00-00 |
PRIMARY DRIVEN GEAR COMP. (74T) Price: $339.99 |
| 7 |
30X-16154-00-00 |
PLATE, THRUST 1 Price: $28.99 |
| 8 |
4GY-16371-01-00 |
BOSS, CLUTCH Price: $170.99 |
| 9 |
1KT-16321-00-00 |
PLATE, FRICTION Price: $18.99 |
| 10 |
5DH-16321-00-00 |
PLATE, FRICTION Price: $28.99 |
| 11 |
3XJ-16324-10-00 |
PLATE, CLUTCH 1 This part replaces 3XJ-16324-01-00. Price: $14.49 |
| 12 |
4GY-16351-00-00 |
PLATE, PRESSURE 1 Price: $70.99 |
| 13 |
1W1-16358-01-00 |
PLATE, PUSH Price: $25.99 |
| 14 |
5XT-16356-00-00 |
ROD, PUSH 1 Price: $17.99 |
| 15 |
92990-06200-00 |
WASHER, PLAIN This part replaces 92902-06200-00. Price: $1.00 |
| 16 |
95380-06600-00 |
NUT, HEXAGON This part replaces 95302-06600-00. Price: $4.80 |
| 17 |
90501-23598-00 |
SPRING, COMPRESSION Price: $8.49 |
| 18 |
90159-06010-00 |
SCREW, WITH WASHER Price: $8.49 |
| 19 |
3XV-16383-00-00 |
SPRING, CUSHION Price: $28.99 |
| 20 |
5NL-16384-00-00 |
PLATE, SEAT Price: $19.99 |
| 21 |
90215-16289-00 |
WASHER, LOCK Price: $7.99 |
| 22 |
90170-16326-00 |
NUT Price: $14.49 |
| 23 |
5XT-16380-00-00 |
PUSH LEVER ASSY Price: $74.99 |
| 24 |
90109-08105-00 |
BOLT Price: $3.45 |
| 25 |
90430-08119-00 |
GASKET Price: $7.49 |
| 26 |
90508-203B3-00 |
SPRING, TORSION Price: $6.49 |
| 27 |
99009-20500-00 |
CIRCLIP Price: $1.85 |
| 28 |
93102-12224-00 |
OIL SEAL Price: $11.49 |
| 29 |
93315-11206-00 |
BEARING Price: $39.99 |
| 30 |
4GY-16357-00-00 |
ROD, PUSH 2 Price: $51.99 |
| 31 |
93511-32027-00 |
BALL This part replaces 93511-32017-00. Price: $9.49 |
| 32 |
4D3-15461-00-00 |
GASKET, CRANKCASE COVER 2 Price: $25.99 |
