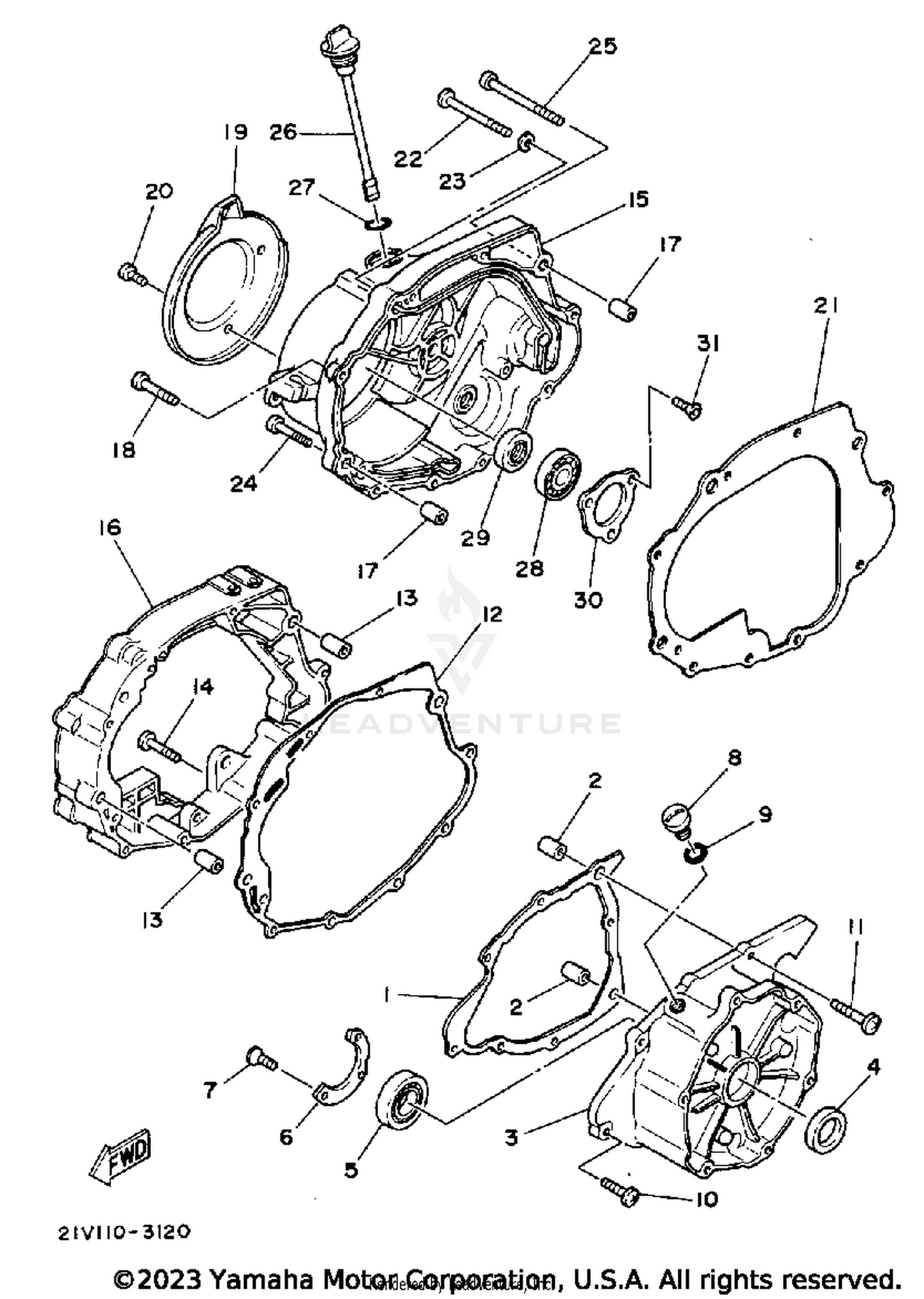

| Ref | Part Number | Description |
|---|
| 1 |
19W-15451-02-00 |
GASKET, CRCS COVER This part replaces 19W-15451-01-00. Price: $10.49 |
| 2 |
99530-12016-00 |
PIN, DOWEL This part replaces 99510-12016-00. Price: $4.89 |
| 3 |
21V-15787-00-00 |
ADAPTOR Price: $119.99 |
| 4 |
93103-28141-00 |
OIL SEAL Price: $19.49 |
| 5 |
93306-07801-00 |
BEARING This part replaces 93306-20547-00. Price: $60.99 |
| 6 |
21V-15719-00-00 |
WASHER, THRUST Price: $10.99 |
| 7 |
90151-05023-00 |
SCREW, COUNTERSUNK This part replaces 90151-05031-00. Price: $10.49 |
| 8 |
90340-14079-00 |
PLUG, STRAIGHT SCREW Price: $20.99 |
| 9 |
93210-14369-00 |
O-RING Price: $8.49 |
| 10 |
98517-06025-00 |
SCREW, PAN HEAD This part replaces 98506-06025-00. Price: $4.05 |
| 11 |
98507-06040-00 |
SCREW, PAN HEAD This part replaces 98506-06040-00. Price: $3.22 |
| 12 |
4BD-15462-00-00 |
GASKET, CRANKCASE COVER 3 Price: $34.99 |
| 13 |
99530-12016-00 |
PIN, DOWEL This part replaces 99510-12016-00. Price: $4.89 |
| 14 |
98580-06040-00 |
SCREW, PAN HEAD (90501-06040-00 Price: $9.49 |
| 15 |
99999-02617-00 |
COVER,CRANKCASE 3 This part replaces 21V-15431-00-00. Price: $221.99 |
| 16 |
21V-15317-01-00 |
SPACER, ENGINE This part replaces 21V-15317-00-00. Price: $97.99 |
| 17 |
99530-12016-00 |
PIN, DOWEL This part replaces 99510-12016-00. Price: $4.89 |
| 18 |
98507-06040-00 |
SCREW, PAN HEAD This part replaces 98506-06040-00. Price: $3.22 |
| 19 |
21V-15499-00-00 |
PROTECTOR, COVER Price: $37.99 |
| 20 |
98907-06014-00 |
SCREW, BIND This part replaces 98906-06014-00. Price: $7.99 |
| 21 |
4BD-15463-01-00 |
GASKET, COVER PINION 2 This part replaces 4BD-15463-00-00. Price: $36.99 |
| 22 |
98507-06070-00 |
SCREW, PAN HEAD This part replaces 98506-06070-00. Price: $9.99 |
| 23 |
90430-06014-00 |
GASKET Price: $8.60 |
| 24 |
98507-06040-00 |
SCREW, PAN HEAD This part replaces 98506-06040-00. Price: $3.22 |
| 25 |
98507-06080-00 |
SCREW, PAN HEAD This part replaces 98506-06080-00. Price: $6.99 |
| 26 |
1UY-15362-01-00 |
PLUG, OIL LEVEL Price: $18.99 |
| 27 |
93210-19123-00 |
O-RING Price: $8.99 |
| 28 |
93306-20335-00 |
BEARING This part replaces 93306-20326-00. Price: $38.99 |
| 29 |
93101-17113-00 |
OIL SEAL Price: $12.49 |
| 30 |
21V-15381-00-00 |
PLATE, BEARING COVER Price: $15.99 |
