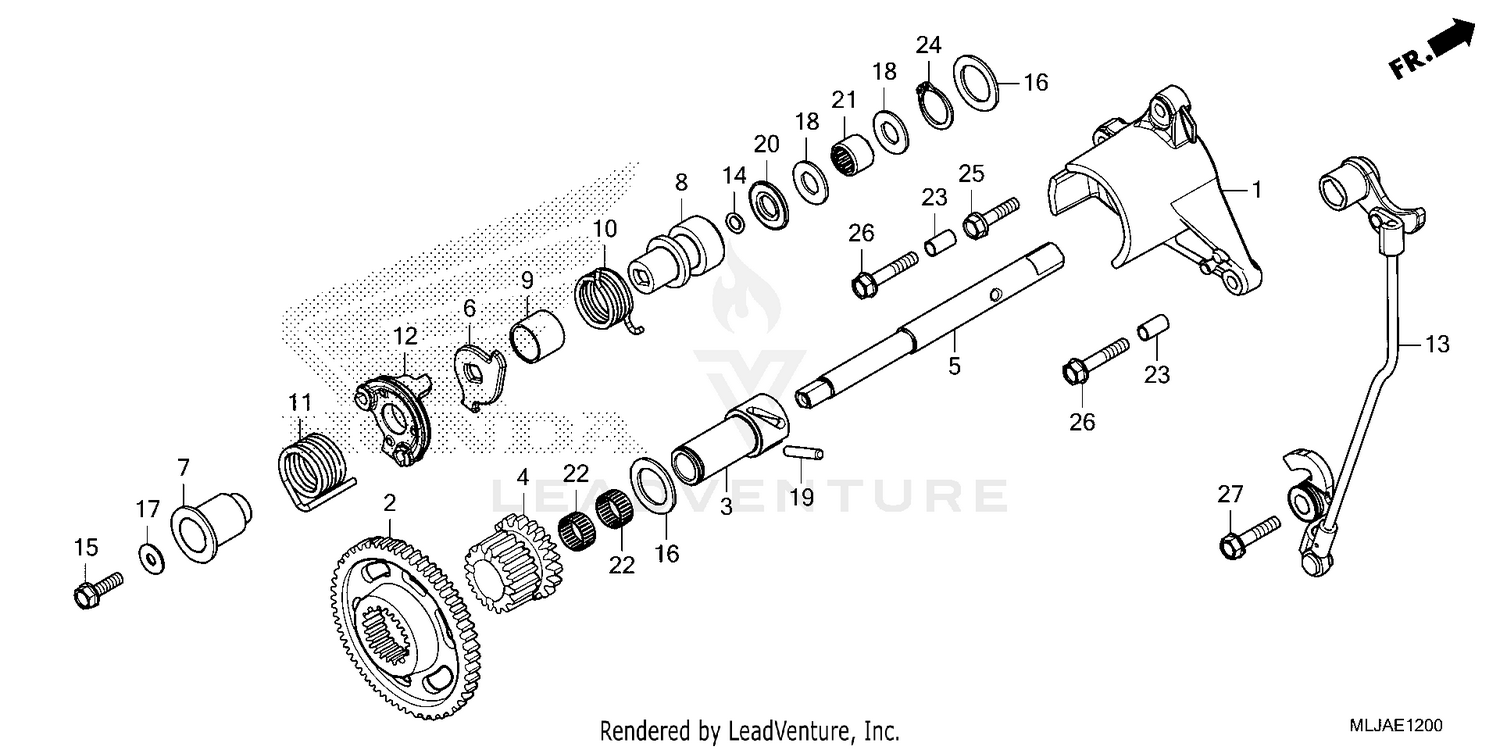

| Ref | Part Number | Description |
|---|
| 1 |
28150-MKC-A20 |
HOLDER, REVERS DRIVE GEAR Price: $91.65 |
| 2 |
28162-MN5-000 |
GEAR, REVERSE IDLE (46T) Price: $153.29 |
| 3 |
28165-MN5-000 |
SHIFTER, REVERSE Price: $153.25 |
| 4 |
28171-MN5-000 |
GEAR, REVERSE SHIFT (18T) Price: $101.91 |
| 5 |
28211-MKC-A20 |
SHAFT, REVERSE SHIFTER Price: $63.71 |
| 6 |
28215-MCA-000 |
PLATE, LOST MOTION Price: $5.47 |
| 7 |
28218-MCA-000 |
COLLAR, LOST MOTION SPRING Price: $26.31 |
| 8 |
28219-MKC-A20 |
COLLAR, REVERSE LEVER SPRING Price: $28.53 |
| 9 |
28221-MN5-000 |
BUSH, REVERSE SPRING Price: $6.45 |
| 10 |
28224-MKC-A20 |
SPRING, REVERSE LEVER Price: $6.04 |
| 11 |
28226-MCA-000 |
SPRING, LOST MOTION Price: $10.00 |
| 12 |
28241-MCA-A00 |
DRUM A Price: $39.85 |
| 13 |
28250-MKC-A20 |
ARM, SHIFT DRUM LOCK Price: $141.15 |
| 14 |
51996-SA5-800 |
O-RING (11.8X2.4) Price: $2.31 |
| 15 |
90014-MN5-000 |
BOLT, FLANGE (6X20) Price: $6.20 |
| 16 |
90409-ML4-610 |
WASHER B, THRUST (30X1.7) Price: $5.24 |
| 17 |
90485-VM0-000 |
WASHER (6MM) Price: $3.53 |
| 18 |
90492-MN5-000 |
WASHER (12.2X23X1.6) Price: $5.24 |
| 19 |
90702-MN5-000 |
ROLLER (5X25) Price: $3.31 |
| 20 |
91001-147-006 |
BEARING, NEEDLE (12MM) (THOMPSON) Price: $15.24 |
| 21 |
91024-GJ5-003 |
BEARING, NEEDLE (12X16X10) Price: $21.31 |
| 22 |
91051-727-000 |
BEARING, NEEDLE (20X24X17) Price: $34.86 |
| 23 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 24 |
94510-20000 |
CIRCLIP (OUTER) (20MM) Price: $1.38 |
| 25 |
95701-06025-00 |
BOLT, FLANGE (6X25) Price: $1.88 |
| 26 |
95701-06032-00 |
BOLT, FLANGE (6X32) (Honda Code 2105856) Price: $1.97 |
