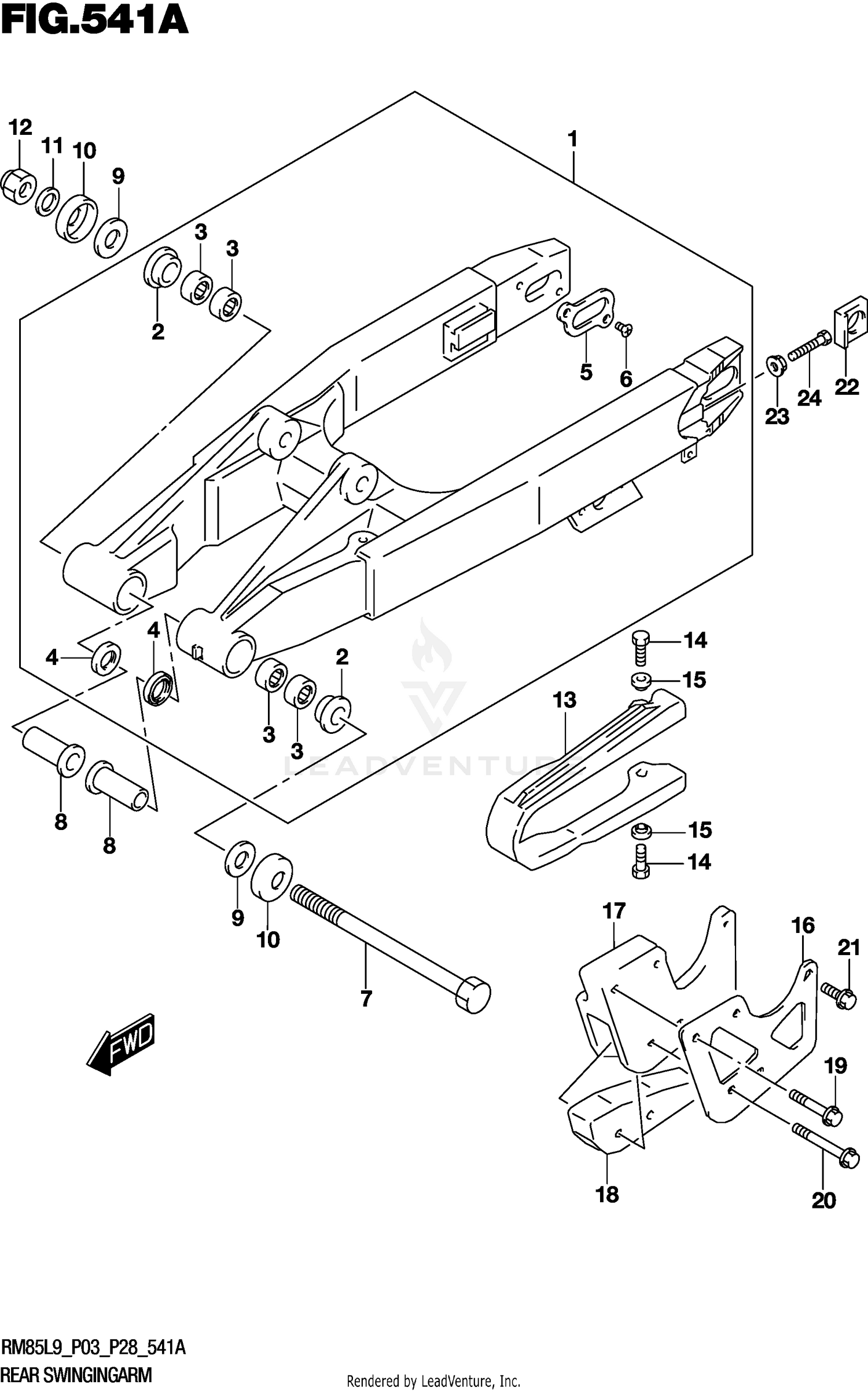

REAR SWINGINGARM
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 61000-03BD1 | SWINGINGARM ASSY,REAR This part replaces 61000-03BD0. Price: $984.76 |
| 7 | 61211-02B40 | SHAFT, RR SWGARM PIVOT Price: $25.19 |
| 8 | 61251-02B40 | SPACER, RR SWGARM PIVOT Price: $35.53 |
| 9 | 08211-12282 | WASHER Price: $2.79 |
| 10 | 61262-03B01 | COVER, PIVOT This part replaces 61262-03B00. Price: $12.08 |
| 11 | 08322-0112B | WASHER Price: $2.75 |
| 12 | 08319-2112A | NUT Price: $4.57 |
| 13 | 61273-02B20 | BUFFER, CHAIN TOUCH DEFENSE Price: $42.17 |
| 14 | 01547-0616A | BOLT Price: $2.45 |
| 15 | 09169-06057 | WASHER Price: $3.93 |
| 16 | 61342-02B40 | PLATE, GUIDE CHAIN OUTER Price: $36.66 |
| 17 | 61343-02B40 | GUIDE, CHAIN Price: $45.03 |
| 18 | 61348-02B20 | DEFENSE, CHAIN GUIDE Price: $19.88 |
| 22 | 61445-03B00 | WASHER, CHAIN ADJUSTER Price: $38.18 |
| 23 | 09159-08034 | NUT Price: $1.96 |
