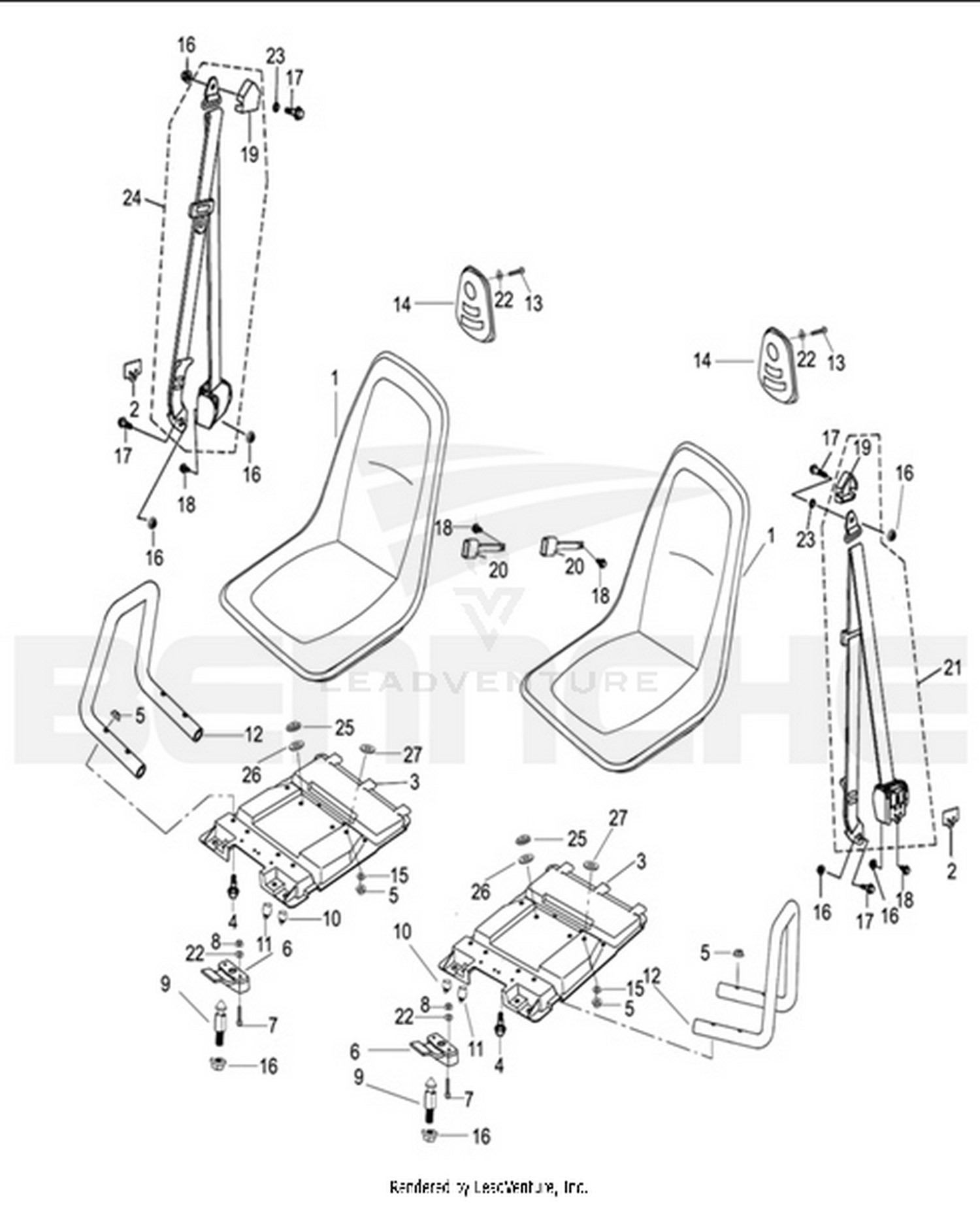

SEAT
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 71610-115-0000 | Single Seat Assy Price: $105.18 |
| 2 | 71701-115-0000 | Wire Stop Plunger for Safety Belt Price: $3.36 |
| 3 | 72104-115-0000 | Seat Mounting Board Price: $43.43 |
| 4 | B05-M8X30-57 | Hexagon Flange Bolt M8x30 Price: $0.56 |
| 5 | B22-M8-27 | Hexagon Flange Lock Nut M8 Price: $0.56 |
| 6 | 37250-115-0000 | Seat Locker Price: $6.72 |
| 7 | B05-M6X40-57 | No Description Available Price: $0.50 |
| 8 | B22-M6-27 | Hexagon Flange Nut M6 Price: $0.56 |
| 9 | 37251-115-0000 | Locker Bracket, Seat Price: $3.88 |
| 10 | 94083-115-0000 | Rubber Cushion III Price: $0.82 |
| 11 | 94087-103-0000 | Rubber Cushion III Price: $0.40 |
| 12 | 72203-115-0000 | Side Armrest Price: $7.13 |
| 13 | B05-M6X25-57 | Hexagon Flange Bolt M6x25 Price: $0.72 |
| 14 | 71420-115-0000 | Head Rest Price: $10.99 |
| 15 | 90606-102-0700 | Washer 8.5x28x1.5 Price: $2.80 |
| 16 | B10-M10X1.25-27 | Hexagon Flange Nut M10x1.25 Price: $0.56 |
| 17 | 90143-115-0000 | Flange Bolt M10x1.25x25 Price: $0.56 |
| 18 | B06-M10X1.25X20-57 | Hexagon Flange Bolt M10x1.25x20 Price: $0.73 |
| 19 | 71711-115-0000 | Safety Belt Buckle Cover Price: $4.95 |
| 22 | B03-6.4-B7 | Washer 6 Price: $0.56 |
| 23 | 90601-115-0000 | Gasket 10.5x19x5 Price: $0.82 |
| 25 | 90624-115-0000 | Collar Bush 8x25x36x7 Price: $2.80 |
| 26 | 90606-115-0600 | Flat Washer 8.5x22x1.2 Price: $2.80 |
