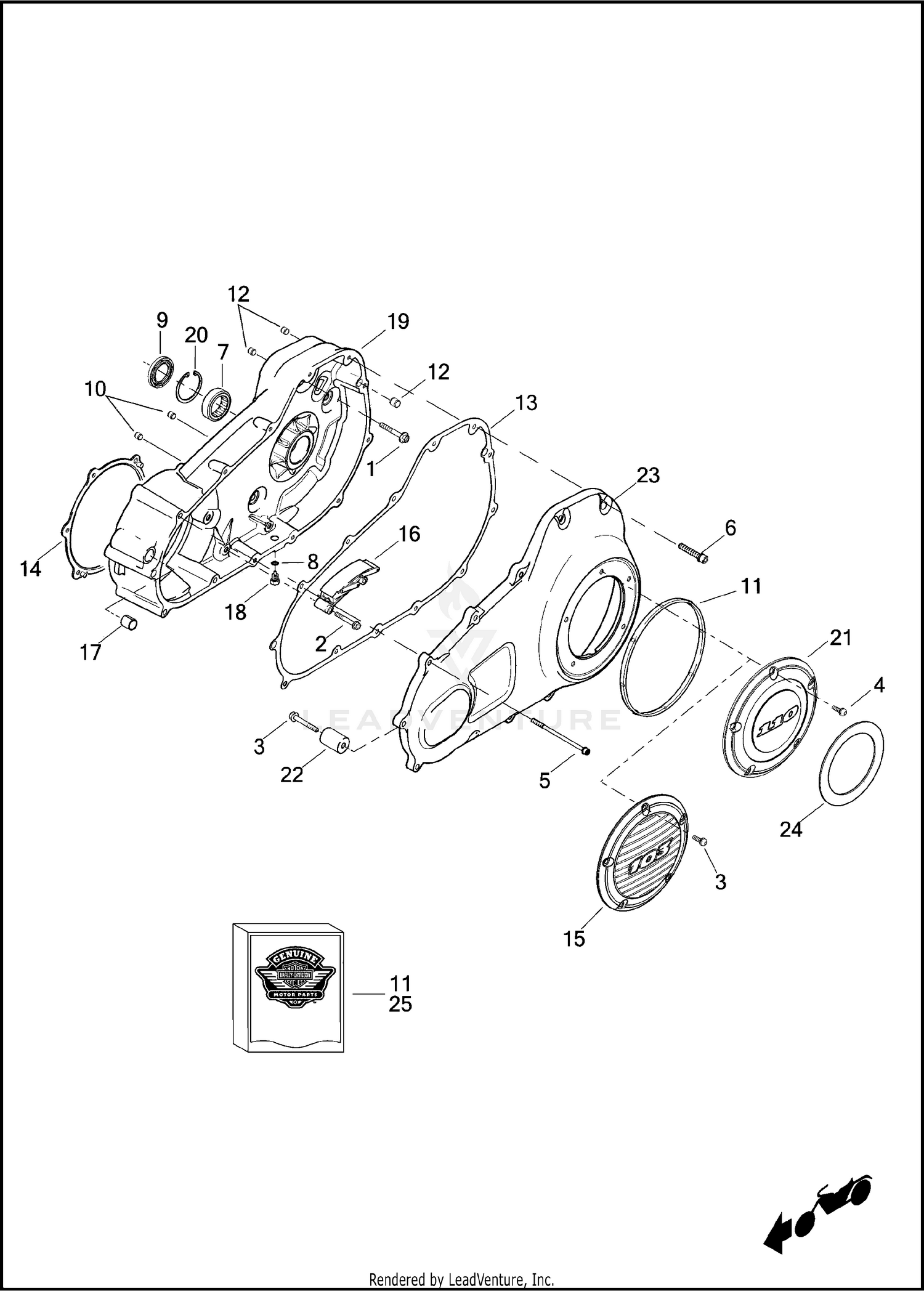

| Ref | Part Number | Description |
|---|
| 1 |
786A |
BOLT 5/16-18 X 2-1/4 HEX HD. (GRADE 5) Price: $5.07 |
| 2 |
791A |
SCREW 3/8-18 X 2-1/4 HEX FLANGE HD. (GRADE 5) Price: $2.30 |
| 3 |
791A |
SCREW 3/8-18 X 2-1/4 HEX FLANGE HD. (GRADE 5) Price: $2.30 |
| 4 |
1062 |
SCREW 1/4-20 X 5/8 TORX HD. (GRADE 8) Price: $1.22 |
| 5 |
1780 |
SCREW Price: $4.71 |
| 6 |
4813A |
SCREW 1/4-20 X 1-3/8 KNURLED HD., W/LOCKPATCH Price: $1.22 |
| 7 |
9231 |
BEARING Price: $21.47 |
| 8 |
11105 |
O-RING Price: $1.20 |
| 9 |
12052C |
SEAL,RDL SHFT,X This part replaces 12052A. Price: $6.99 |
| 10 |
16583-00B |
PIN,DOWEL This part replaces 16583-00A. Price: $1.90 |
| 11 |
17369-06 |
GASKET SERVICE KIT (1K, 5K, 10K) W/ 11105 & SEAL CLUTCH COVER Price: $5.98 |
| 12 |
24754-75A |
DOWEL BUSHING STARTER Price: $1.22 |
| 13 |
34901-07 |
GASKET PRIMARY COVER Price: $48.58 |
| 14 |
34948-08 |
GASKET PRIMARY HOUSING TO CASE Price: $48.13 |
| 16 |
39929-06C |
TENSIONER,PRI CHN,CHAIN TENSIONER ASY This part replaces 39929-06B. Price: $111.42 |
| 17 |
42642-00A |
BUSHING Price: $2.65 |
| 18 |
60328-98B |
PLUG MAGNETIC DRAIN W/ 11105 Price: $3.58 |
| 19 |
60432-07A |
INNER PRIMARY HOUSING W/ 9231, 12052A, 16583-00A, 42642-00A, 60328-98B & 60678-85 (BLACK) Price: $683.42 |
| 20 |
60678-85 |
RETAINING RING Price: $1.82 |
| 21 |
60709-07A |
COVER CLUTCH (CHROME) Price: $187.30 |
| 22 |
60818-07 |
SLEEVE DAMPENER (JAPAN ONLY) Not Available Price: |
| 23 |
60886-11A |
COVER PRIMARY (BLACK) This part replaces 60886-11. Price: $319.95 |
| 24 |
14100390 |
INSERT CLUTCH COVER Not Available Price: |
