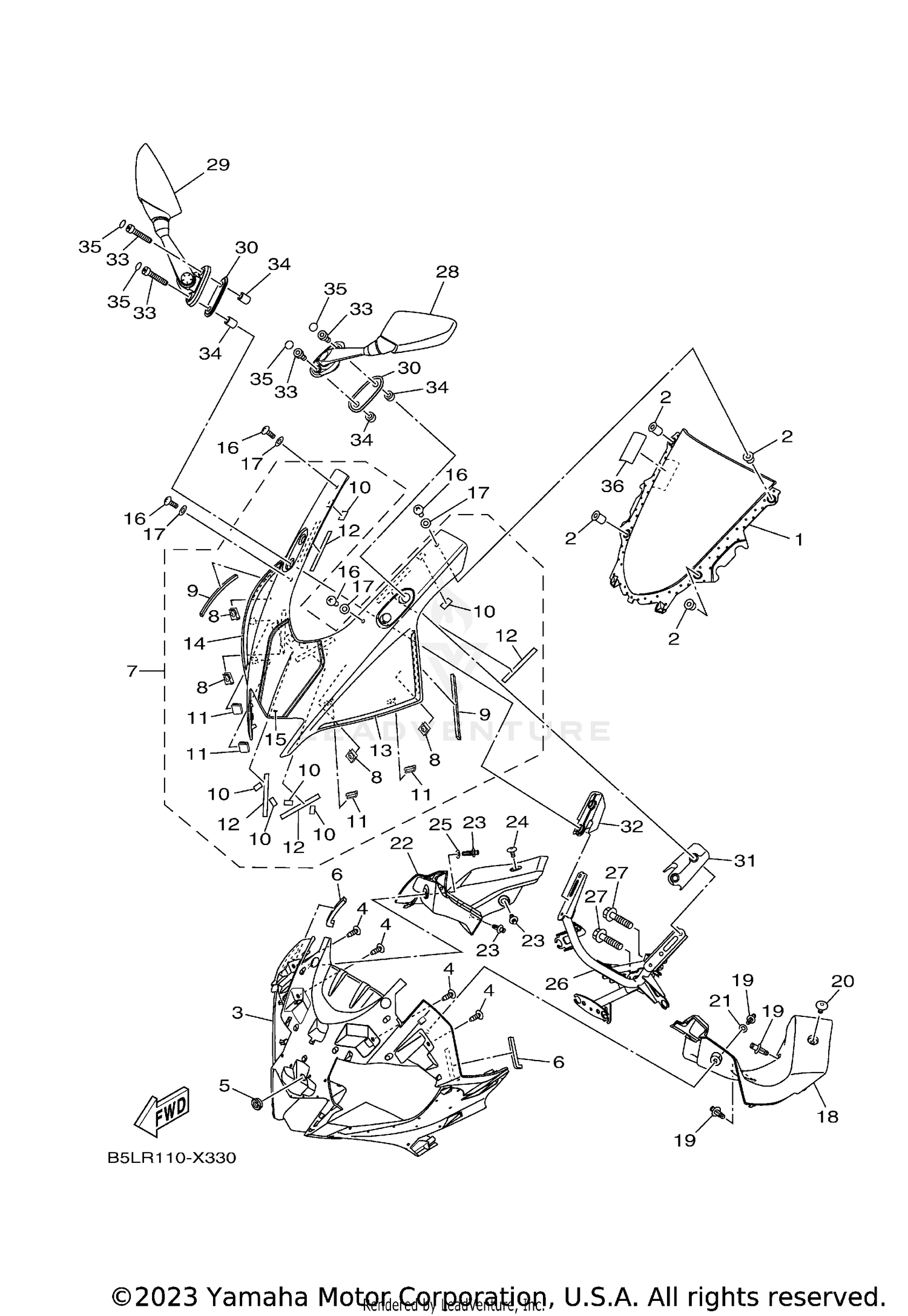

| Ref | Part Number | Description |
|---|
| 1 |
BS7-F8381-00-00 |
WINDSHIELD Price: $49.99 |
| 2 |
90179-05523-00 |
NUT This part replaces 90179-05849-00. Price: $7.49 |
| 3 |
BS7-F835G-00-00 |
BODY, FRONT UPPER 1 Price: $91.99 |
| 4 |
97702-50016-00 |
SCREW, TAPPING Price: $2.60 |
| 5 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 6 |
90520-07808-00 |
DAMPER, PLATE Price: $0.35 |
| 8 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 9 |
90520-07808-00 |
DAMPER, PLATE Price: $0.35 |
| 10 |
31B-F8307-00-00 |
SEAL Price: $2.35 |
| 11 |
1WD-F8376-00-00 |
TRIM Price: $3.50 |
| 12 |
1WD-F414E-00-00 |
SEAL 2 Price: $3.50 |
| 16 |
90150-05023-00 |
SCREW, ROUND HEAD Price: $3.30 |
| 17 |
90202-05088-00 |
WASHER, PLATE Price: $7.70 |
| 18 |
BS7-F836N-00-00 |
PANEL, INNER 4 Price: $12.49 |
| 19 |
90269-06816-00 |
RIVET Price: $1.70 |
| 20 |
90111-05003-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 21 |
BS7-F8327-00-00 |
DAMPER, LEG SHIELD Price: $0.30 |
| 22 |
BS7-F836R-00-00 |
PANEL, INNER 5 Price: $10.49 |
| 23 |
90269-06816-00 |
RIVET Price: $1.70 |
| 24 |
90111-05003-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 25 |
BS7-F8327-00-00 |
DAMPER, LEG SHIELD Price: $0.30 |
| 26 |
BS7-F8356-00-00 |
STAY 1 Price: $52.99 |
| 27 |
95817-08035-00 |
BOLT, FLANGE This part replaces 95812-08035-00. Price: $10.49 |
| 28 |
BS7-F6280-00-00 |
REAR VIEW MIRROR ASS Price: $67.99 |
| 29 |
BS7-F6290-00-00 |
REAR VIEW MIRROR ASS Price: $93.99 |
| 30 |
BK6-F8483-00-00 |
PLATE, RUBBER 1 (BK6 Price: $1.20 |
| 31 |
BS7-F8484-00-00 |
PLATE, RUBBER 2 Price: $14.49 |
| 32 |
BS7-F8485-00-00 |
PLATE, RUBBER 3 Price: $6.49 |
| 33 |
90110-06138-00 |
BOLT This part replaces 91317-06030-00. Price: $6.49 |
| 34 |
90387-06131-00 |
COLLAR Price: $8.49 |
| 35 |
20P-F3469-00-00 |
CAP, BOLT Price: $3.40 |
