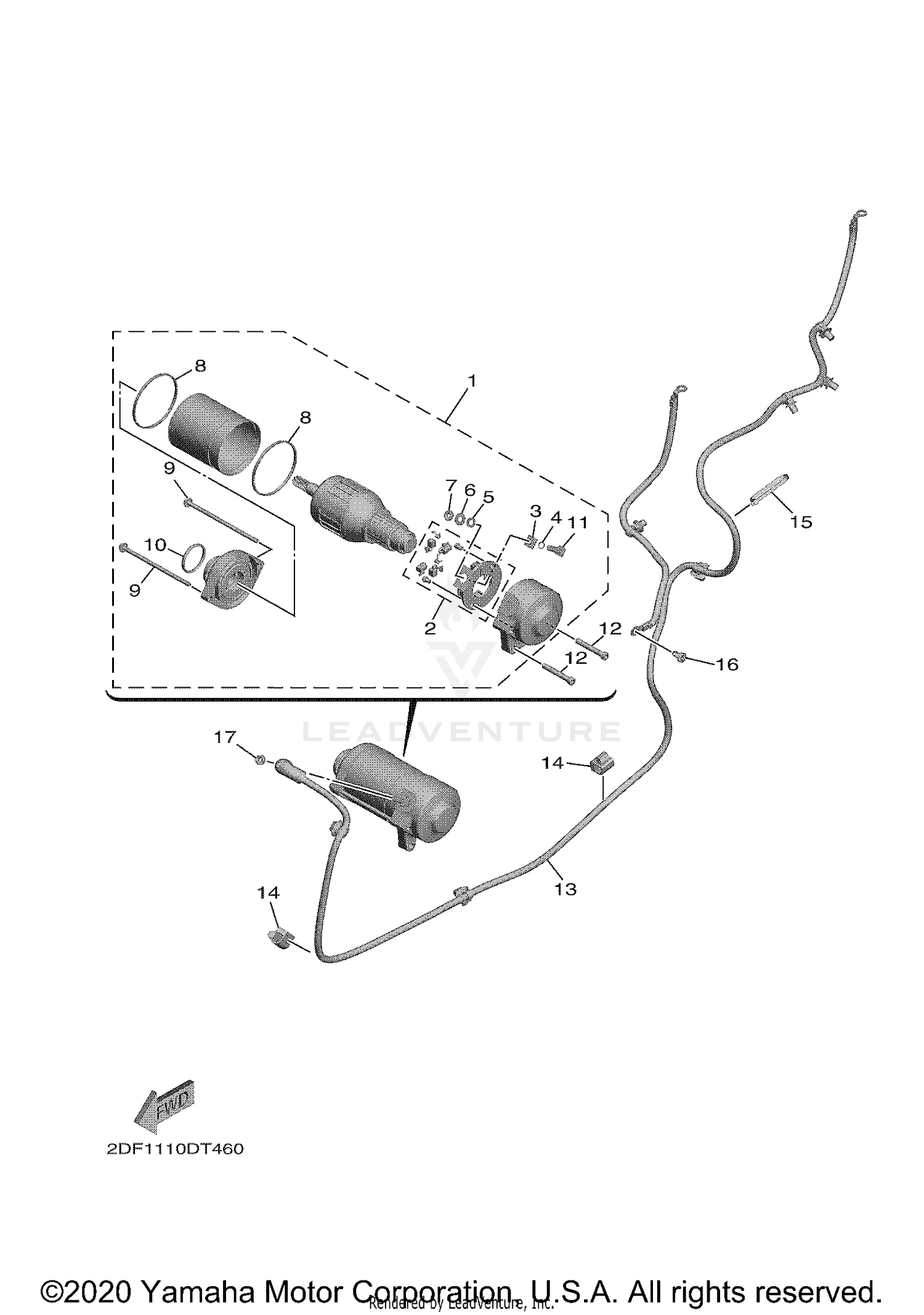

STARTING MOTOR
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2DF-81890-10-00 | MOTOR ASSY This part replaces 2DF-81890-00-00. Price: $341.99 |
| 2 | 2S3-81801-00-00 | BRUSH SET Price: $89.99 |
| 3 | 2S3-8182G-00-00 | BUSH, TERMINAL Price: $5.99 |
| 4 | 93210-06632-00 | O-RING This part replaces 93210-06422-00. Price: $9.49 |
| 5 | 8FA-8181L-00-00 | WASHER, PLAIN Price: $4.85 |
| 6 | 1D7-81835-00-00 | WASHER Price: $2.90 |
| 7 | 95380-06700-00 | NUT This part replaces 95302-06700-00. Price: $9.49 |
| 8 | 1D7-81861-00-00 | GASKET Price: $15.49 |
| 9 | 8FA-81846-01-00 | SCREW Price: $8.49 |
| 10 | 93210-25711-00 | O-RING Price: $8.49 |
| 11 | 2S3-81828-00-00 | SCREW 2 Price: $4.65 |
| 12 | 90110-06387-00 | BOLT, HEXAGON SOCKET HEAD Price: $4.65 |
| 13 | 2DF-8183G-01-00 | CORD COMP. Price: $81.99 |
| 14 | 90464-08011-00 | CLAMP Price: $1.45 |
| 15 | 90464-15195-00 | CLAMP Price: $4.41 |
| 16 | 90153-06044-00 | SCREW, HEXAGON Price: $2.20 |
