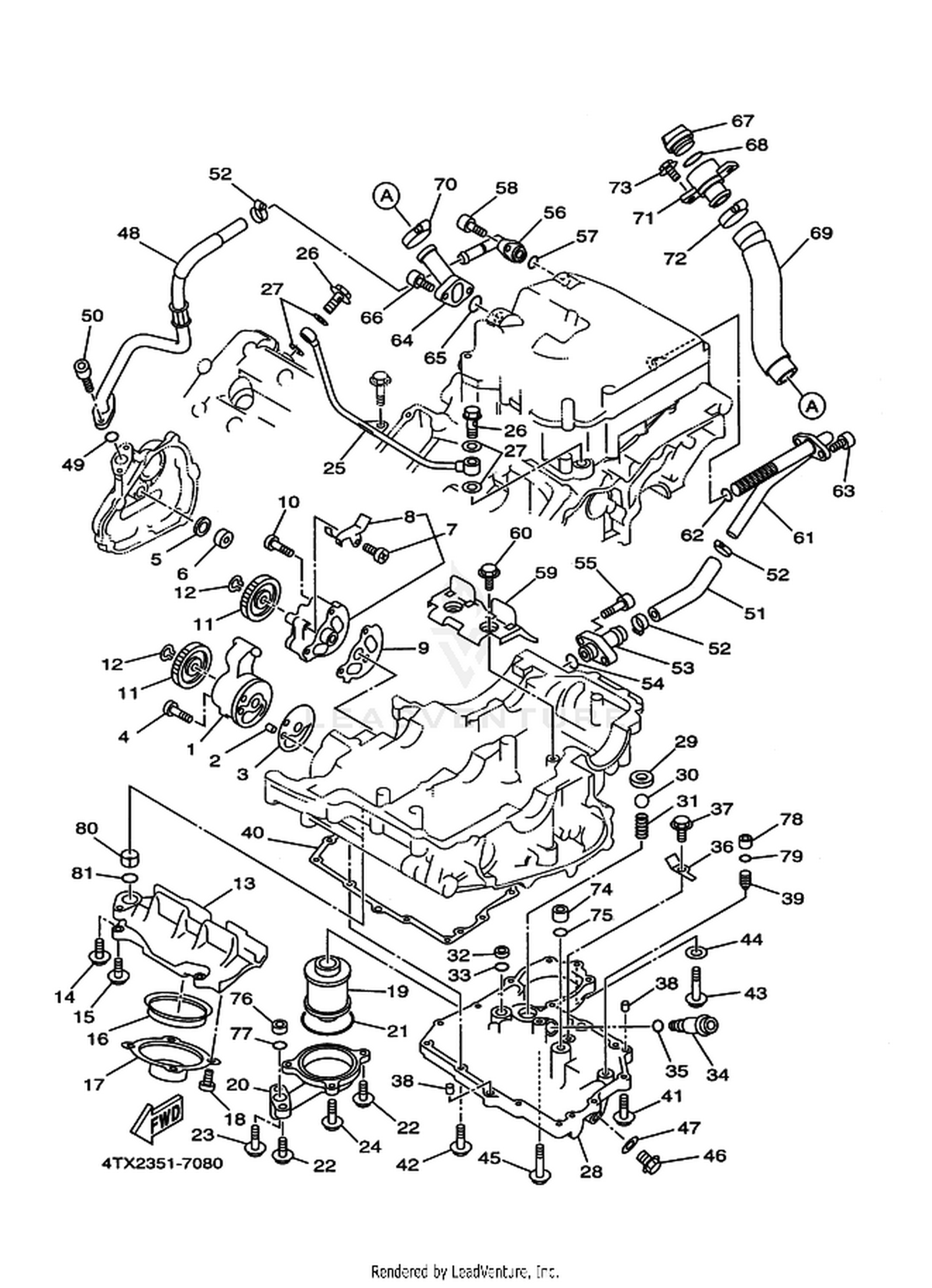

| Ref | Part Number | Description |
|---|
| 1 |
3LD-13300-00 |
OIL PUMP ASSY Price: Call Us |
| 2 |
99530-08012 |
PIN, DOWEL Price: Call Us |
| 3 |
3LD-13329-00 |
GASKET, PUMP COVER Price: Call Us |
| 5 |
90430-14131 |
GASKET Price: Call Us |
| 6 |
90387-120W5 |
COLLAR Price: Call Us |
| 7 |
4NX-13303-00 |
OIL PUMP ASSY, 2 Price: Call Us |
| 9 |
3LD-13339-00 |
GASKET, PUMP COVER Price: Call Us |
| 10 |
98507-06035 |
SCREW, PAN HEAD Price: Call Us |
| 11 |
3VD-13325-00 |
GEAR, PUMP DRIVEN Price: Call Us |
| 12 |
99009-11400 |
CIRCLIP Price: Call Us |
| 13 |
3VD-13412-00 |
HOUSING, STRAINER Price: Call Us |
| 14 |
95027-06025 |
BOLT, FLANGE Price: Call Us |
| 15 |
95027-06020 |
BOLT, FLANGE Price: Call Us |
| 16 |
3VD-13415-00 |
SEAL, OIL STRAINER Price: Call Us |
| 17 |
3VD-13411-00 |
STRAINER, OIL Price: Call Us |
| 18 |
98507-06010 |
SCREW, PAN HEAD Price: Call Us |
| 19 |
4X7-13440-01 |
ELEMENT ASSY, OIL CLEANER Price: Call Us |
| 20 |
3VD-13447-00 |
COVER, OIL ELEMENT Price: Call Us |
| 21 |
93210-64297 |
O-RING Price: Call Us |
| 22 |
95024-06020 |
BOLT, FLANGE Price: Call Us |
| 23 |
95024-06030 |
BOLT, FLG.(SMALL HEAD) Price: Call Us |
| 24 |
95024-06040 |
BOLT, FLANGE Price: Call Us |
| 25 |
3LD-13161-00 |
PIPE, DELIVERY 1 Price: Call Us |
| 26 |
90401-10106 |
BOLT, UNION Price: Call Us |
| 27 |
90430-10188 |
GASKET Price: Call Us |
| 28 |
3VD-13417-10 |
COVER, STRAINER Price: Call Us |
| 29 |
3LD-13113-00 |
SEAT, CHECK BALL Price: Call Us |
| 30 |
93505-08030 |
BALL Price: Call Us |
| 31 |
90501-104F9 |
SPRING, COMPRESSION Price: Call Us |
| 32 |
90387-106W6 |
COLLAR Price: Call Us |
| 33 |
93210-12790 |
O-RING Price: Call Us |
| 34 |
11H-13490-00 |
RELIEF VALVE ASSY Price: Call Us |
| 35 |
93210-10096 |
O-RING Price: Call Us |
| 36 |
3LD-13151-00 |
STAY Price: Call Us |
| 37 |
90105-06553 |
BOLT, FLANGE Price: Call Us |
| 38 |
99530-08016 |
PIN, DOWEL Price: Call Us |
| 40 |
3VD-13414-00 |
GASKET, STRAINER COVER Price: Call Us |
| 41 |
90105-06456 |
BOLT, FLANGE Price: Call Us |
| 42 |
95024-06025 |
BOLT, FLANGE Price: Call Us |
| 43 |
95024-10040 |
BOLT, FLANGE Price: Call Us |
| 44 |
90430-10188 |
GASKET Price: Call Us |
| 45 |
95027-06035 |
BOLT, FLANGE Price: Call Us |
| 46 |
90340-14132 |
PLUG, STRAIGHT SCREW Price: Call Us |
| 47 |
214-11198-01 |
GASKET Price: Call Us |
| 48 |
4UN-13464-01 |
HOSE, OIL 1 Price: Call Us |
| 49 |
93210-13657 |
O-RING Price: Call Us |
| 50 |
91314-06020 |
BOLT Price: Call Us |
| 51 |
4TX-13465-00 |
HOSE, OIL 2 Price: Call Us |
| 52 |
90460-27270 |
CLAMP, HOSE Price: Call Us |
| 53 |
3VD-13416-00 |
PIPE, OIL 1 Price: Call Us |
| 54 |
93210-13657 |
O-RING Price: Call Us |
| 55 |
90110-06093 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 56 |
4NX-13418-00 |
PIPE, OIL 2 Price: Call Us |
| 57 |
93210-13657 |
O-RING Price: Call Us |
| 58 |
91314-06020 |
BOLT Price: Call Us |
| 59 |
3VD-13317-00 |
PLATE, BAFFLE Price: Call Us |
| 60 |
90105-06553 |
BOLT, FLANGE Price: Call Us |
| 61 |
4TX-13416-00 |
PIPE, OIL 1 Price: Call Us |
| 62 |
93210-16629 |
O-RING Price: Call Us |
| 63 |
91314-06020 |
BOLT Price: Call Us |
| 64 |
4TX-13132-00 |
JOINT Price: Call Us |
| 65 |
93210-26741 |
O-RING Price: Call Us |
| 66 |
91314-06025 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 67 |
3F9-15362-00 |
PLUG, OIL LEVEL Price: Call Us |
| 68 |
93210-27370 |
O-RING Price: Call Us |
| 69 |
4TX-13467-00 |
HOSE Price: Call Us |
| 70 |
90450-32051 |
HOSE CLAMP ASSY Price: Call Us |
| 71 |
4TX-13266-00 |
CONNECTOR, OIL Price: Call Us |
| 72 |
90450-38040 |
HOSE CLAMP ASSY Price: Call Us |
| 73 |
95027-06016 |
BOLT, FLANGE Price: Call Us |
| 74 |
90387-085N0 |
COLLAR Price: Call Us |
| 75 |
93210-10096 |
O-RING Price: Call Us |
| 76 |
90387-106W6 |
COLLAR Price: Call Us |
| 77 |
93210-12790 |
O-RING Price: Call Us |
| 78 |
90387-06761 |
COLLAR Price: Call Us |
| 79 |
93210-07135 |
O-RING Price: Call Us |
| 80 |
90387-130W6 |
COLLAR Price: Call Us |
