| Ref | Part Number | Description |
|---|
| 3 |
1623-797 |
Insert Price: $3.32 |
| 4 |
1607-332 |
Bracket, Mounting - Suspension - Right Price: $20.56 |
| 4 |
1607-333 |
Bracket, Mounting - Suspension - Left Price: $20.56 |
| 5 |
8060-686 |
Rivet - Zinc Price: $0.46 |
| 6 |
1623-206 |
Rivet Price: $2.30 |
| 7 |
8422-502 |
Nut, Lock Price: $0.48 |
| 8 |
1707-644 |
Bracket, Mounting - Rear Spar - Right Price: $33.95 |
| 8 |
1707-645 |
Bracket, Mounting - Rear Spar - Left Price: $33.95 |
| 9 |
8476-512 |
Screw, Machine Price: $1.45 |
| 10 |
1623-257 |
Rivet Price: $2.30 |
| 11 |
8060-682 |
Rivet Price: $0.24 |
| 12 |
1607-251 |
Tunnel, Rear Price: $400.95 |
| 13 |
8060-484 |
Rivet Price: $0.46 |
| 14 |
1607-104 |
End Cap, Tunnel Price: $41.95 |
| 15 |
8408-516 |
Screw, Cap Price: $1.92 |
| 16 |
0630-288 |
Regulator, Voltage Price: $193.95 |
| 17 |
0645-709 |
Clip, Routing Price: $13.28 |
| 18 |
1623-984 |
Clamp, Routing Price: $7.08 |
| 19 |
8476-820 |
Screw, Machine Price: $1.08 |
| 20 |
1707-454 |
Support, Footrest - Right Price: $71.95 |
| 20 |
1707-455 |
Support, Footrest - Left Price: $71.95 |
| 21 |
8427-802 |
Nut, Lock Price: $0.58 |
| 22 |
0744-064 |
Kit, Tool Price: $78.95 |
| 23 |
8468-535 |
Screw, Machine Price: $1.07 |
| 24 |
1623-637 |
Clip, U-Nut Price: $2.61 |
| 25 |
0607-996 |
Footrest - Right Price: $28.95 |
| 25 |
0607-997 |
Footrest - Left Price: $28.95 |
| 26 |
8470-516 |
Screw, Machine Price: $0.35 |
| 27 |
1607-109 |
Protector, Chain Case Price: $5.90 |
| 28 |
8061-708 |
Rivet Price: $1.08 |
| 29 |
1607-371 |
Shield, Brake Disc Price: $111.95 |
| 30 |
8408-613 |
Screw, Cap Price: $1.66 |
| 31 |
8470-520 |
Screw, Machine Price: $0.48 |
| 32 |
0607-351 |
Protector, Brake Disc Price: $13.28 |
| 33 |
0630-292 |
Protector, Taillight Harness Price: $16.92 |
| 34 |
0630-309 |
Protector, Taillight Harness Price: $18.13 |
| 35 |
1607-092 |
Roll, Tunnel - Right Price: $64.95 |
| 36 |
1623-130 |
Rivet Price: $1.80 |
| 37 |
1623-241 |
Rivet Price: $2.05 |
| 38 |
1607-162 |
Gusset, Running Board - Right Price: $19.35 |
| 38 |
1607-163 |
Gusset, Running Board - Left Price: $19.35 |
| 39 |
1607-040 |
Gusset, Tunnel Roll - Right Price: $22.99 |
| 39 |
1607-041 |
Gusset, Tunnel Roll - Left Price: $22.99 |
| 40 |
1621-590 |
Decal, Tunnel - Right Price: $18.13 |
| 40 |
1621-591 |
Decal, Tunnel - Left Price: $18.13 |
| 41 |
0621-990 |
Decal, Reflector - Red Price: $15.42 |
| 42 |
0630-328 |
Bracket, Mounting - Taillight Price: $30.95 |
| 43 |
8470-510 |
Screw, Machine Price: $0.71 |
| 44 |
0609-898 |
Taillight, LED Price: $70.95 |
| 45 |
6606-394 |
Snowflap Price: $109.95 |
| 46 |
5611-852 |
Decal, Warning - Towing (French) Price: $2.54 |
| 47 |
5611-853 |
Decal, Warning - Towing (English) Price: $2.81 |
| 48 |
8061-706 |
Rivet Price: $1.07 |
| 49 |
8476-620 |
Screw, Machine Price: $0.48 |
| 50 |
2707-438 |
Bumper, Rear - Team Arctic Green Price: $74.95 |
| 51 |
8427-602 |
Nut, Hex Price: $0.23 |
| 52 |
6606-600 |
Saddlebag Price: $242.95 |
| 53 |
8060-630 |
Rivet Price: $1.32 |

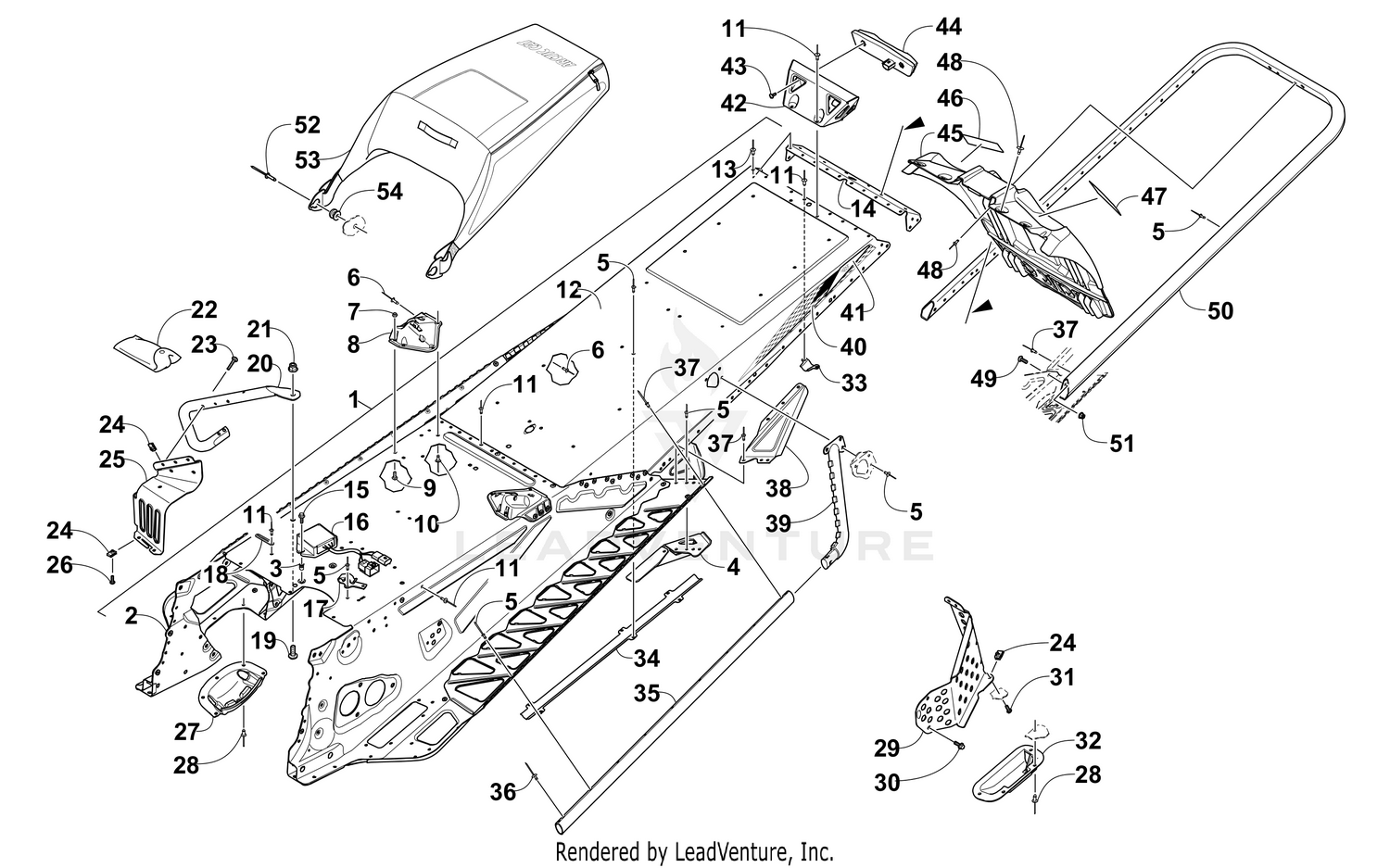

![TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [102154]](https://cdn.datamanager.arinet.com/image/ARCT/d61bd536-3dcd-42ac-a1dd-5b0a0734c0f6/Max)
