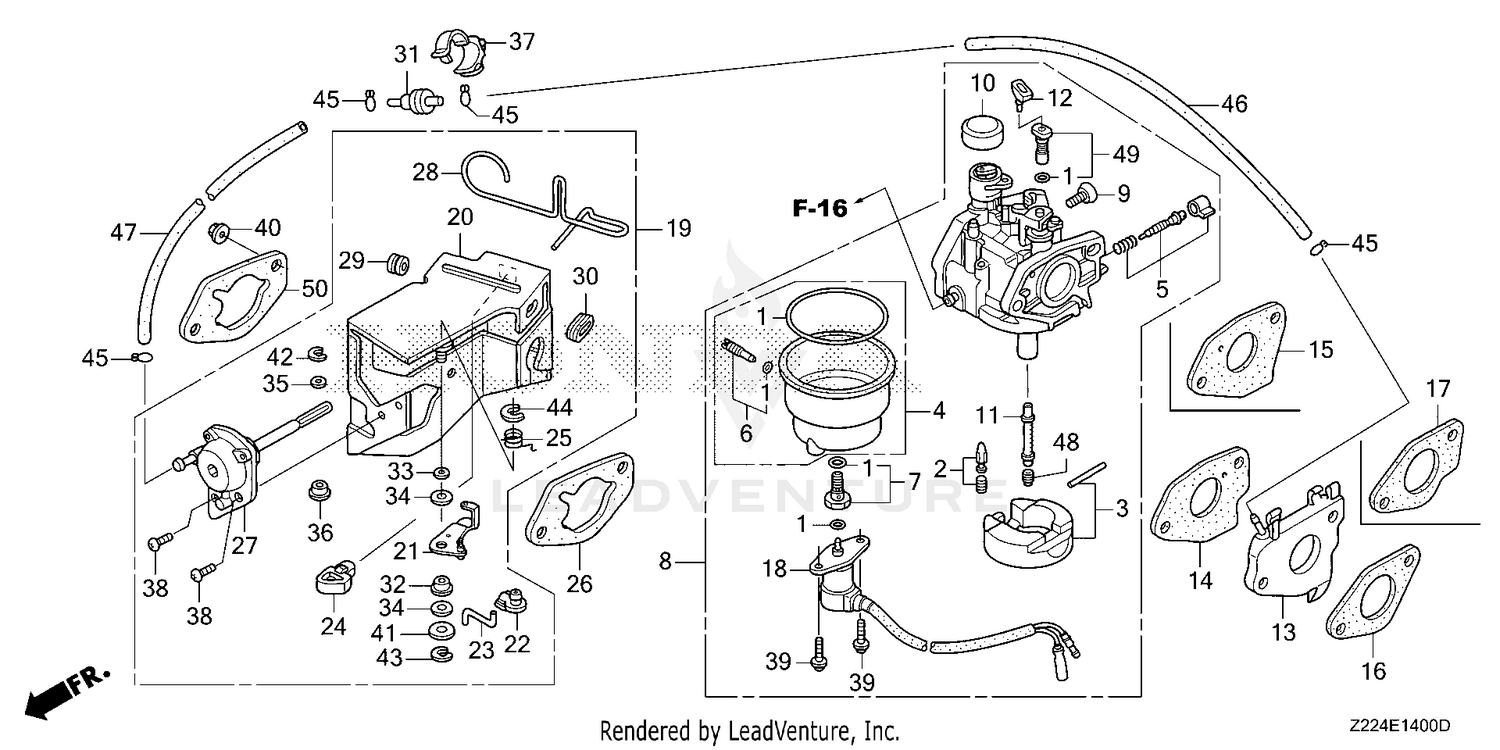

| Ref | Part Number | Description |
|---|
| 1 |
16010-ZE3-701 |
GASKET SET (Honda Code 2386233). Price: $9.66 |
| 2 |
16011-ZA0-931 |
VALVE SET, FLOAT (Honda Code 2059236). Price: $44.34 |
| 3 |
16013-Z1C-003 |
FLOAT SET (CARBURETOR NO.) Price: $51.10 |
| 4 |
16015-ZA0-931 |
CHAMBER SET, FLOAT (Honda Code 2386241). Price: $78.92 |
| 5 |
16016-ZH8-W01 |
SCREW SET (Honda Code 4212387). Price: $12.62 |
| 6 |
16024-124-760 |
SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.) Price: $14.64 |
| 7 |
16028-ZA0-931 |
SEE PART DETAILS - PRI; SCREW SET B (Honda Code 2097376). Price: $28.42 |
| 8 |
16100-Z7E-D11 |
CARBURETOR ASSY. (BE89J A) Price: $123.98 |
| 9 |
16124-ZE0-005 |
SCREW, THROTTLE STOP (Honda Code 1441559). Price: $17.88 |
| 10 |
16148-141-881 |
SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468). Price: $6.58 |
| 11 |
16166-ZF6-005 |
NOZZLE, MAIN (Honda Code 3134491). Price: $31.02 |
| 12 |
16172-ZE3-W10 |
COLLAR, SET (Honda Code 3738358). Price: $10.48 |
| 13 |
16211-Z7E-700 |
INSULATOR, CARBURETOR Price: $20.86 |
| 15 |
16221-ZF6-800 |
SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3713161). Price: $2.38 |
| 17 |
16223-ZE3-W00 |
GASKET, INSULATOR Use up to Engine SN 2949254. Price: $2.56 |
| 18 |
16230-ZE3-702 |
SEE PART DETAILS - PRI; VALVE ASSY., SOLENOID Price: $73.48 |
| 19 |
16260-Z7E-000 |
STAY ASSY., MANUAL CHOKE (NOT AVAILABLE) Price: Call Us |
| 20 |
16261-ZE2-702 |
SEE PART DETAILS - PRI; STAY, SOLENOID Price: $33.82 |
| 21 |
16262-ZE2-711 |
LEVER, CHOKE Price: $9.10 |
| 22 |
16263-Z7B-000 |
JOINT, ROD Price: $2.84 |
| 23 |
16264-ZE2-701 |
ROD, CHOKE Price: $2.36 |
| 24 |
16265-Z7E-000 |
STOPPER, CHOKE ROD Price: $1.96 |
| 25 |
16268-ZE2-721 |
SPRING, MANUAL CHOKE Price: $4.02 |
| 26 |
16269-ZA0-800 |
SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 3755212). Price: $2.44 |
| 27 |
16400-ZE2-704 |
SEE PART DETAILS - PRI; DIAPHRAGM ASSY. Price: $83.72 |
| 28 |
16611-ZE3-D21 |
ROD, CHOKE CONTROL Price: $7.92 |
| 29 |
16613-893-000 |
SEE PART DETAILS - PRI; GROMMET, CHOKE ROD Price: $3.84 |
| 30 |
16615-893-000 |
GUIDE, CHOKE ROD Price: $4.70 |
| 31 |
36135-ZF6-D41 |
VALVE, DASHPOT CHECK Price: $42.02 |
| 32 |
53149-964-003 |
BUSH, ARM PIVOT Price: $8.28 |
| 33 |
90431-ZE2-700 |
WASHER, CHOKE LEVER Price: $4.00 |
| 34 |
90432-ZE2-700 |
SEAL, CHOKE LEVER Price: $3.94 |
| 35 |
90433-ZE2-700 |
WASHER, THRUST (2.7X8) Price: $3.86 |
| 36 |
90434-ZE2-700 |
COLLAR, LEVER Price: $3.88 |
| 37 |
90650-SD9-003 |
CLIP, WIRE HARNESS Price: $8.08 |
| 38 |
93500-05012-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X12) (Honda Code 0173567). Price: $1.14 |
| 39 |
93892-05012-08 |
SEE PART DETAILS - PRI; SCREW-WASHER (5X12) (Honda Code 0368621). Price: $1.44 |
| 40 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 41 |
94103-05000 |
WASHER, PLAIN (5MM) (Honda Code 1555630). Price: $0.78 |
| 42 |
90601-Z7E-000 |
E-RING (2MM) Price: $4.18 |
| 43 |
90602-Z7E-000 |
E-RING (4MM) Price: $4.00 |
| 44 |
90603-Z7E-000 |
E-RING (7MM) Price: $4.10 |
| 45 |
95002-02070 |
CLIP, TUBE (B7) (Honda Code 0250639). Price: $2.20 |
| 46 |
95005-35008-10M |
SEE PART DETAILS - PRI; BULK HOSE, VACUUM (3.5X8000) (3.5X130) Price: $153.88 |
| 47 |
95005-35008-10M |
SEE PART DETAILS - PRI; BULK HOSE, VACUUM (3.5X8000) (3.5X130) Price: $153.88 |
| 48 |
99101-ZH8-1020 |
JET, MAIN (#102) (ADVENTURE GREEN) (CARBURETOR NO.) Price: $7.30 |
| 49 |
99204-ZA0-0450 |
JET SET, PILOT (#45) (Honda Code 2060465). Price: $24.58 |
