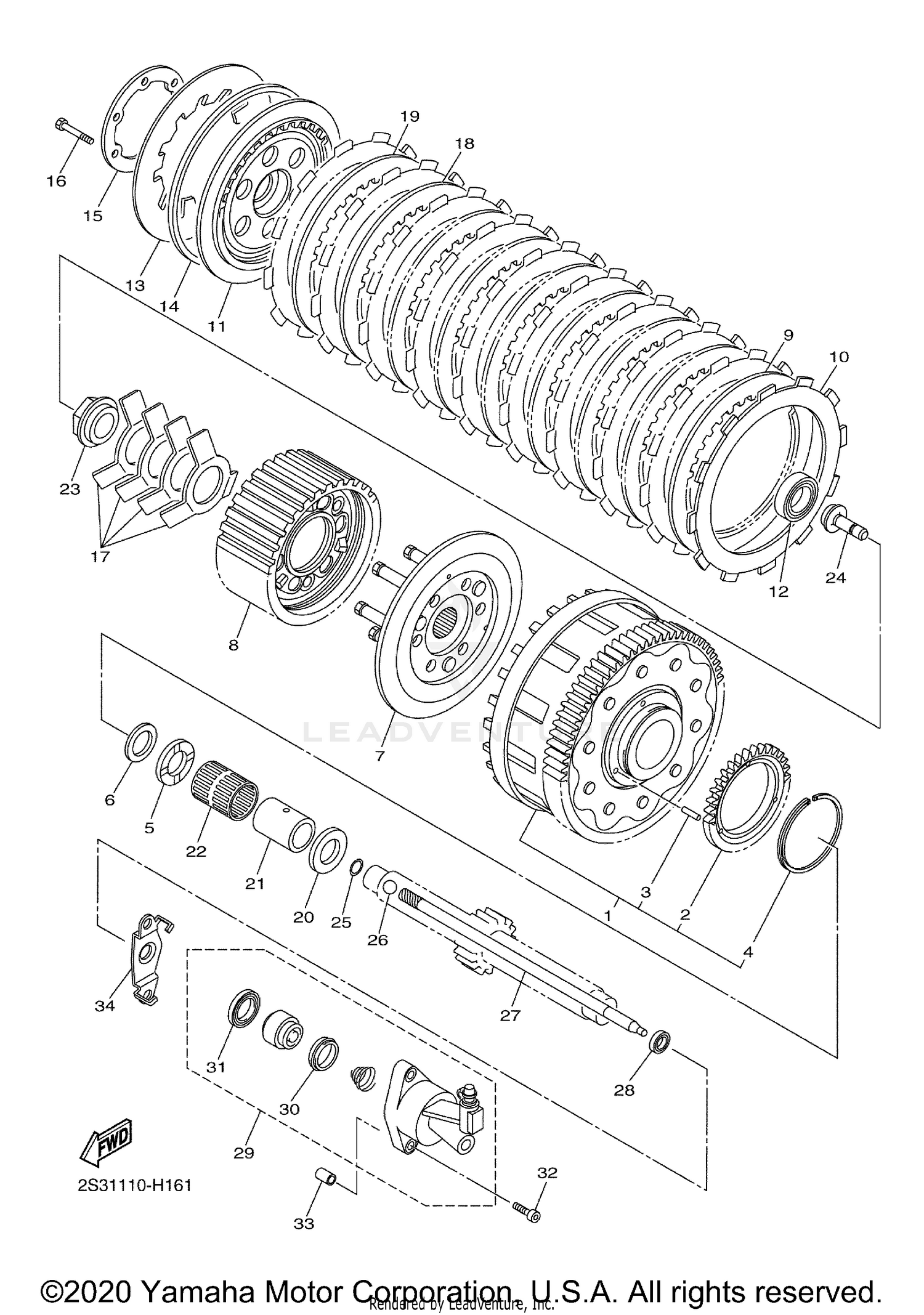

| Ref | Part Number | Description |
|---|
| 1 |
2S3-16150-00-00 |
PRIMARY DRIVEN GEAR COMP. Price: $665.99 |
| 2 |
2S3-13324-00-00 |
GEAR, PUMP DRIVE Price: $108.99 |
| 3 |
93604-16092-00 |
PIN, DOWEL Price: $3.45 |
| 4 |
93440-57M01-00 |
CIRCLIP Price: $8.10 |
| 5 |
4B1-16154-00-00 |
PLATE, THRUST 1 Price: $99.99 |
| 6 |
90208-25002-00 |
WASHER, CONICAL SPRING Price: $12.49 |
| 7 |
2S3-16360-00-00 |
PRESSURE PLATE ASSY 2 Price: $470.99 |
| 8 |
2S3-16370-00-00 |
CLUTCH BOSS ASSY Price: $422.99 |
| 10 |
5YU-16321-00-00 |
PLATE, FRICTION Price: $28.99 |
| 11 |
2S3-16351-00-00 |
PLATE, PRESSURE 1 Price: $78.99 |
| 12 |
93306-00315-00 |
BEARING This part replaces 93306-00304-00. Price: $36.99 |
| 13 |
5YU-16334-00-00 |
SPRING, CLUTCH 2 Price: $123.99 |
| 14 |
36Y-16335-00-00 |
HOUSING, SPRING Price: $39.99 |
| 15 |
2S3-16353-00-00 |
PLATE, PRESSURE 3 Price: $8.99 |
| 16 |
97017-06025-00 |
BOLT This part replaces 97002-06025-00. Price: $4.55 |
| 17 |
2S3-16539-01-00 |
SPRING This part replaces 2S3-16539-00-00. Price: $18.99 |
| 20 |
5VY-16164-00-00 |
PLATE, THRUST 2 Price: $22.99 |
| 21 |
90387-25026-00 |
COLLAR Price: $28.99 |
| 22 |
93310-33559-00 |
BEARING Price: $38.99 |
| 23 |
2S3-16377-00-00 |
NUT, LOCK Price: $87.99 |
| 24 |
4KG-16356-00-00 |
ROD, PUSH 1 Price: $33.99 |
| 25 |
93210-06632-00 |
O-RING Price: $9.49 |
| 26 |
93511-32027-00 |
BALL This part replaces 93511-32017-00. Price: $9.49 |
| 27 |
2S3-16357-00-00 |
ROD, PUSH 2 Price: $47.99 |
| 28 |
93102-08008-00 |
OIL SEAL Price: $11.49 |
| 29 |
2S3-16381-00-00 |
PUSH LEVER COMP. Price: $170.99 |
| 30 |
2S3-1638G-00-00 |
CUP Price: $7.49 |
| 31 |
2S3-1638J-00-00 |
BOOT Price: $16.49 |
| 32 |
90110-06138-00 |
BOLT This part replaces 90110-06246-00. Price: $6.49 |
| 33 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
