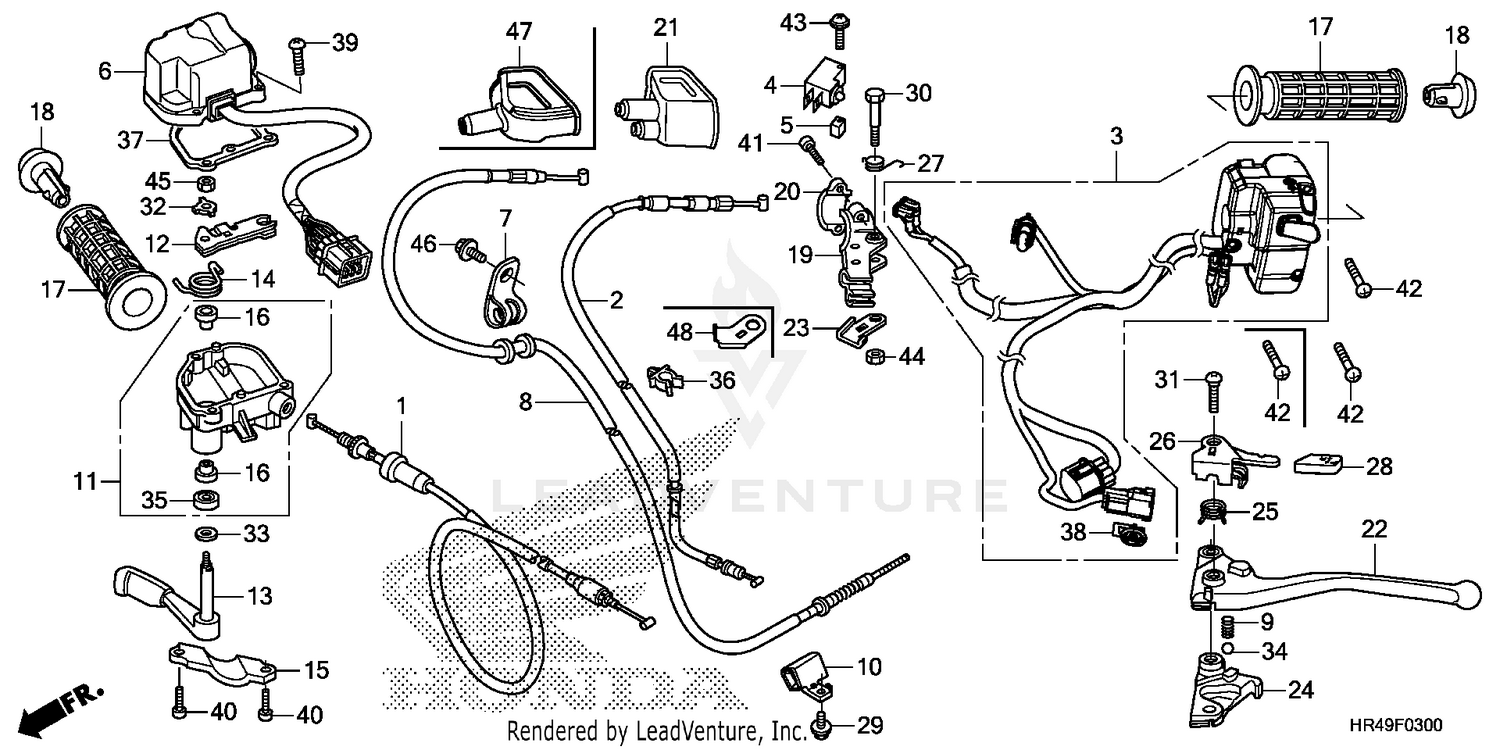

| Ref | Part Number | Description |
|---|
| 1 |
17910-HR3-A21 |
CABLE, THROTTLE Price: $14.84 |
| 2 |
22880-HR3-A21 |
CABLE, REVERSE ASSIST Price: $15.18 |
| 3 |
35150-HR4-A61 |
SWITCH ASSY., LIGHTING & ENGINE STARTER Price: $58.36 |
| 4 |
35340-HR0-305 |
SWITCH ASSY., FR. STOP (COO) Price: $21.85 |
| 5 |
35345-HF1-830 |
COLLAR, STOP SWITCH Price: $7.55 |
| 6 |
35400-HR6-A61 |
SWITCH ASSY., DIFFERENTIAL LOCK Price: $141.53 |
| 7 |
43452-HR3-A20 |
CLAMP, BRAKE CABLE Price: $3.29 |
| 8 |
43460-HR3-A21 |
CABLE, HAND BRAKE Price: $13.22 |
| 9 |
47155-MGE-D00 |
SPRING, PLUNGER Price: $4.55 |
| 10 |
50352-HR3-A20 |
GUIDE, BRAKE CABLE Price: $5.84 |
| 11 |
53143-HP5-L00 |
CASE ASSY., THROTTLE LEVER Price: $123.55 |
| 12 |
53144-HA0-010 |
ARM, THROTTLE Price: $9.69 |
| 13 |
53145-HA0-770 |
LEVER, THROTTLE Price: $29.13 |
| 14 |
53146-HM8-000 |
SPRING, THROTTLE RETURN Price: $3.89 |
| 15 |
53147-HM5-850 |
HOLDER, THROTTLE CASE Price: $4.53 |
| 16 |
53148-HA0-000 |
BUSH, THROTTLE PIVOT Price: $10.05 |
| 17 |
53165-HP5-600 |
GRIP, HANDLE Price: $4.67 |
| 18 |
53167-HP5-600 |
GUARD, HANDLE END Price: $2.65 |
| 19 |
53172-HN5-M40 |
BRACKET, BRAKE LEVER Price: $17.75 |
| 20 |
53173-376-000 |
HOLDER, LEVER BRACKET Price: $13.25 |
| 21 |
53177-HN5-M40 |
COVER, L. HANDLE Price: $7.87 |
| 22 |
53178-HR6-305 |
LEVER, L. HANDLEBAR (COO) This part replaces 53178-HR6-A60. Price: $25.93 |
| 23 |
53179-HN5-M40 |
HOLDER, STOP SWITCH SUB CORD Price: $2.24 |
| 24 |
53179-HR6-A60 |
ARM, REVERSE ASSISTANT Price: $6.40 |
| 25 |
53191-HR6-A60 |
SPRING, PARKING LEVER (A) Price: $2.55 |
| 26 |
53192-HR6-A60 |
LEVER, PARKING BRAKE LOCK Price: $10.31 |
| 27 |
53193-HF1-830 |
SPRING, LEVER RETURN Price: $7.89 |
| 28 |
53193-HR6-A60 |
CAP, PARKING LEVER Price: $3.20 |
| 29 |
90107-HR3-A20 |
BOLT, SPECIAL (6MM) Price: $3.58 |
| 30 |
90114-HM8-000 |
BOLT, HANDLE LEVER PIVOT Price: $10.82 |
| 31 |
90115-HR6-A60 |
SCREW, PARKING LEVER PIVOT Price: $1.25 |
| 32 |
90501-HA0-000 |
WASHER, LOCK (6MM) Price: $3.62 |
| 33 |
90504-HA0-000 |
WASHER (9X20) Price: $2.60 |
| 34 |
91101-MAM-A80 |
BALL, STEEL (#6) (3/16) Price: $0.20 |
| 35 |
91210-HA0-004 |
DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003. Price: $4.93 |
| 36 |
91531-SZ5-003 |
CLIP, TUBE (3.5) Price: $4.83 |
| 37 |
91532-HA0-020 |
GASKET, THROTTLE CASE Price: $7.73 |
| 38 |
91535-TA0-003 |
CLIP, CONNECTOR (DARK BROWN) Price: $5.20 |
| 39 |
93500-04016-0G |
SCREW, PAN (4X16) Price: $0.87 |
| 40 |
93500-05014-0G |
SCREW, PAN (5X14) Price: $4.48 |
| 41 |
93500-05018-0G |
SCREW, PAN (5X18) Price: $0.53 |
| 42 |
93500-05028-0G |
SCREW, PAN (5X28) Price: $0.78 |
| 43 |
93893-04020-07 |
SCREW-WASHER (4X20) Price: $1.04 |
| 44 |
94001-06070-0S |
NUT, HEX. (6MM) Price: $1.37 |
| 45 |
94002-06000-0S |
NUT, HEX. (6MM) Price: $1.37 |
