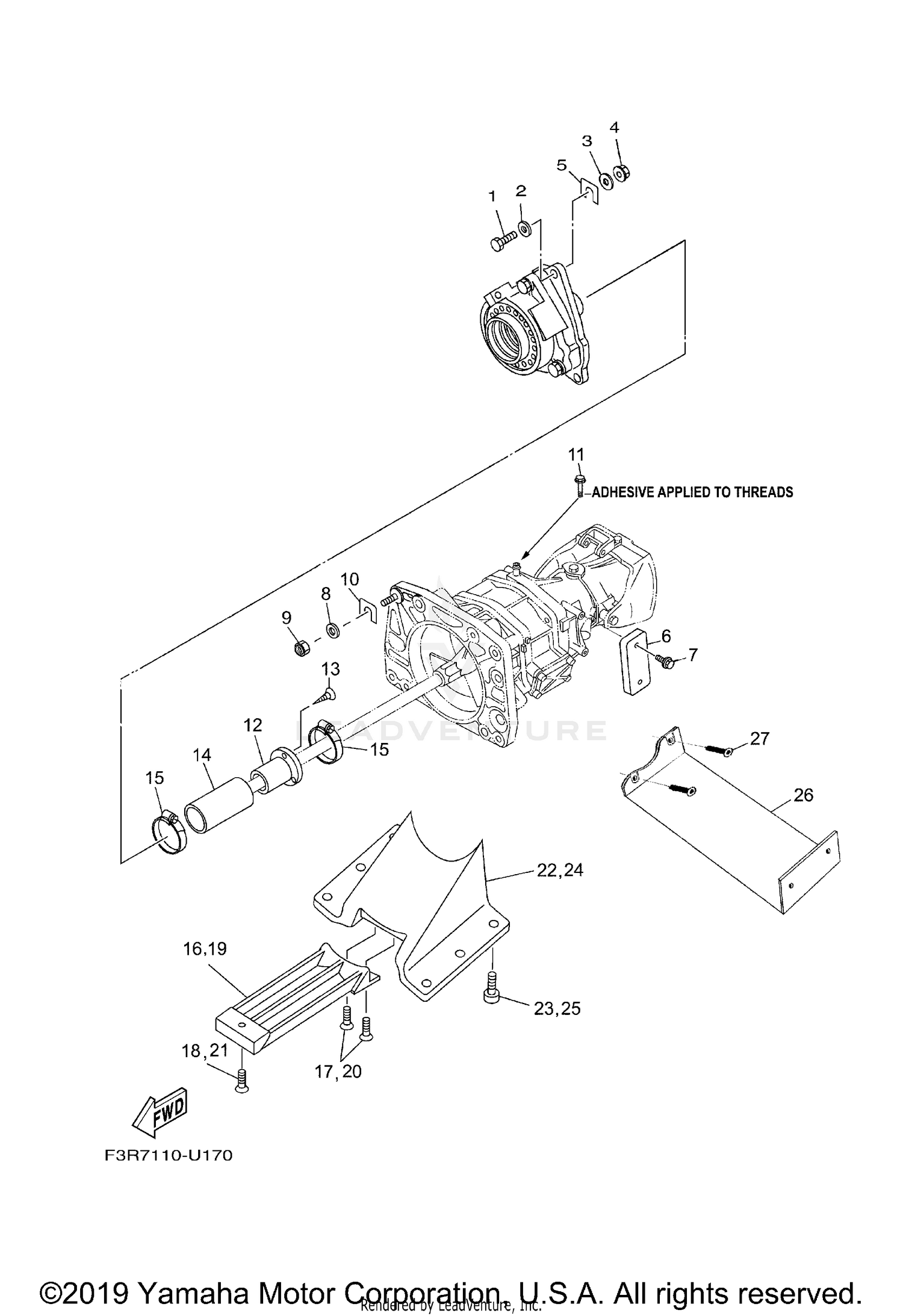

| Ref | Part Number | Description |
|---|
| 1 |
97080-08045-00 |
BOLT Price: $10.49 |
| 2 |
9299R-08600-00 |
WASHER Price: $6.99 |
| 3 |
90209-15SA4-00 |
WASHER Price: $5.99 |
| 4 |
95780-08300-00 |
NUT, FLANGE Price: $11.80 |
| 6 |
F3F-U7697-00-00 |
ANODE (A006760850) Price: $30.99 |
| 7 |
90119-06894-00 |
BOLT, WITH WASHER This part replaces 90119-06893-00. Price: $1.99 |
| 8 |
90201-10802-00 |
WASHER, PLATE M10 Price: $5.99 |
| 9 |
90185-10816-00 |
NUT, SELF-LOCKING Price: $2.55 |
| 11 |
90101-05802-00 |
BOLT Price: $0.70 |
| 12 |
F2D-U883E-00-00 |
JOINT, PIPE Price: $23.99 |
| 13 |
90167-08SA8-00 |
SCREW, TAPPING Price: $5.99 |
| 14 |
GU1-U883B-10-00 |
PIPE, 1 Price: $19.99 |
| 15 |
90450-57802-00 |
HOSE CLAMP ASSY Price: $4.99 |
| 16 |
F4A-U72B7-00-00 |
SCREEN,INTAKE Price: $253.99 |
| 17 |
90111-08833-00 |
BOLT,HEX. SOCKET BUTTON Price: $5.99 |
| 18 |
90111-08832-00 |
BOLT,HEX. SOCKET BUTTON Price: $6.99 |
| 19 |
F4A-U72B7-10-00 |
SCREEN,INTAKE Price: $253.99 |
| 20 |
90111-08833-00 |
BOLT,HEX. SOCKET BUTTON Price: $5.99 |
| 21 |
90111-08832-00 |
BOLT,HEX. SOCKET BUTTON Price: $6.99 |
| 22 |
F5V-U72B6-00-00 |
DUCT,INTAKE Price: $253.99 |
| 23 |
90111-08832-00 |
BOLT,HEX. SOCKET BUTTON Price: $6.99 |
| 24 |
F5V-U72B6-10-00 |
DUCT,INTAKE Price: $253.99 |
| 25 |
90111-08832-00 |
BOLT,HEX. SOCKET BUTTON Price: $6.99 |
| 26 |
F4A-U273B-00-00 |
PLATE 2 Price: $194.99 |
