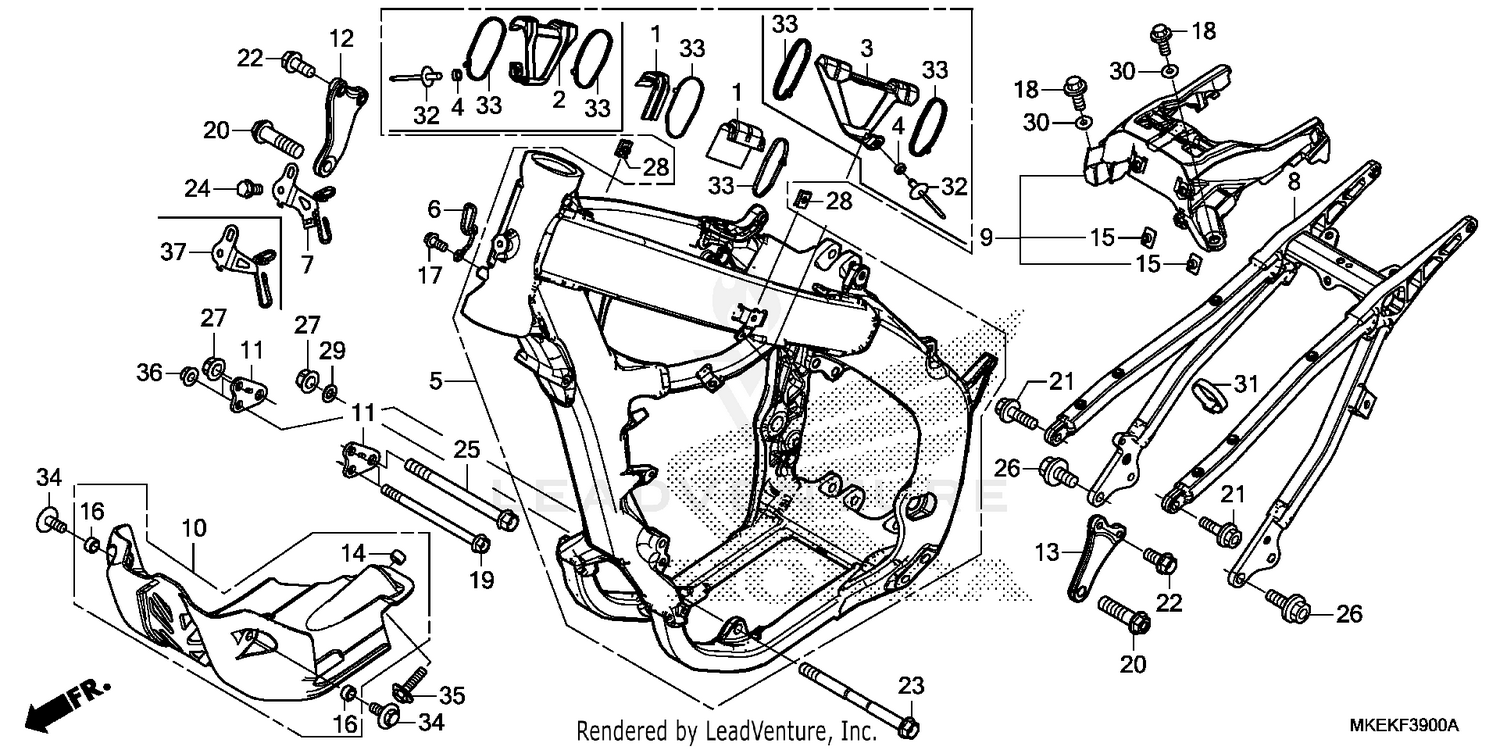

| Ref | Part Number | Description |
|---|
| 2 |
17522-MKE-A70 |
RUBBER, R. TANK SIDE MOUNTING Price: $34.60 |
| 3 |
17532-MKE-A70 |
RUBBER, L. TANK SIDE MOUNTING Price: $34.60 |
| 4 |
33609-GK4-620 |
COLLAR, FR. TURN SIGNAL Price: $2.78 |
| 5 |
50010-MKE-A70 |
FRAME SET Price: $3,024.29 |
| 6 |
50128-MKE-A00 |
GUIDE, CABLE Price: $15.09 |
| 8 |
50200-K95-A40 |
FRAME, RR. Price: $857.91 |
| 9 |
50250-MKE-A00 |
BASE ASSY., SEAT SUPPORT Price: $66.76 |
| 10 |
50357-MKE-A70 |
GUARD, ENGINE Price: $50.29 |
| 11 |
50405-MKE-A00 |
PLATE, FR. ENGINE HANGER Price: $10.07 |
| 12 |
50407-MKE-A70 |
PLATE, R. HEAD HANGER Price: $77.78 |
| 13 |
50408-MKE-A70 |
PLATE, L. HEAD HANGER Price: $77.95 |
| 14 |
61103-MGS-D30 |
COLLAR B, FR. FENDER Price: $1.80 |
| 15 |
61304-GFC-900 |
NUT, SPECIAL (6X7) Price: $5.65 |
| 16 |
80123-MA1-640 |
COLLAR, SPLASH GUARD Price: $2.35 |
| 17 |
90020-GHB-620 |
BOLT, FLANGE (6X12) Price: $2.45 |
| 18 |
90020-GHB-650 |
BOLT, FLANGE (6X18) Price: $2.65 |
| 19 |
90101-MEN-A30 |
BOLT, FLANGE (8X121) Price: $6.93 |
| 20 |
90102-MEN-A30 |
BOLT, FLANGE (10X30) Price: $4.58 |
| 21 |
90102-MKE-A00 |
BOLT, FLANGE (8X28) (SH) Price: $3.84 |
| 22 |
90103-MEB-670 |
BOLT, FLANGE (8X18) Price: $2.24 |
| 23 |
90104-MKE-A00 |
BOLT, SPECIAL FLANGE (10X134) Price: $7.71 |
| 24 |
90105-MKE-A00 |
BOLT, FLANGE (7X14) Price: $2.91 |
| 25 |
90106-MEN-A30 |
BOLT, FLANGE (10X123) Price: $6.64 |
| 26 |
90122-MEN-730 |
BOLT (10X24) Price: $2.65 |
| 27 |
90302-KZ3-J40 |
NUT, FLANGE (10MM) Price: $3.11 |
| 28 |
90303-MGZ-J40 |
NUT, CLIP (6MM) Price: $1.22 |
| 29 |
90410-HC4-000 |
WASHER (10MM) Price: $4.80 |
| 30 |
90501-KZ4-J20 |
COLLAR A Price: $4.60 |
| 32 |
90851-MKE-A70 |
RIVET (4.8X10.8) Price: $3.18 |
| 33 |
91560-MS8-600 |
TY-RAP, CABLE Price: $2.71 |
| 34 |
93404-06016-07 |
BOLT-WASHER (6X16) Price: $1.70 |
| 35 |
93404-06025-07 |
BOLT-WASHER (6X25) Price: $1.95 |
| 36 |
94050-08000 |
NUT, FLANGE (8MM) NUT, FLANGE (10MM) Price: $0.98 |
