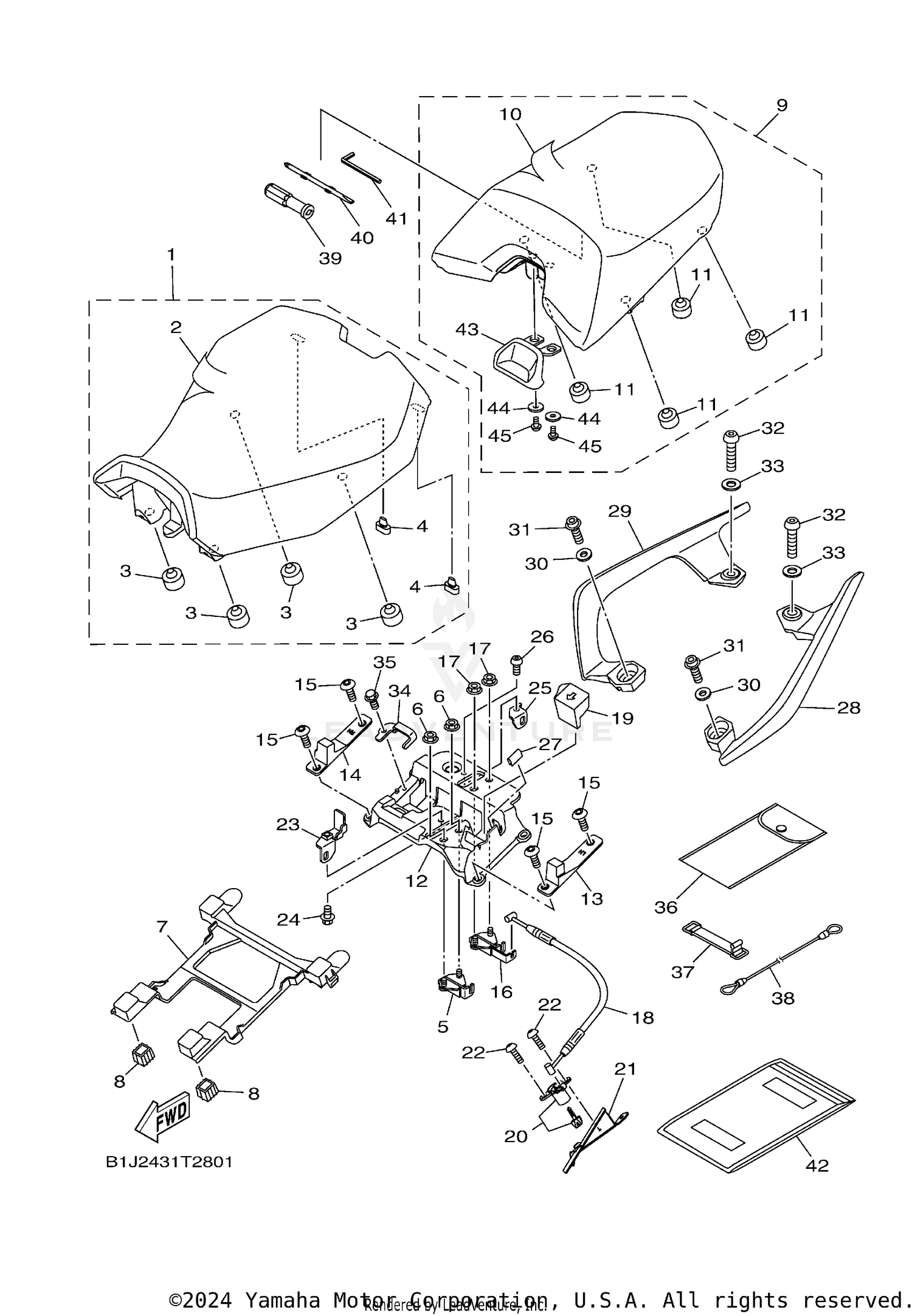

| Ref | Part Number | Description |
|---|
| 1 |
B5C-24710-10-00 |
SINGLE SEAT ASSY Price: $165.99 |
| 2 |
B5C-2470F-10-00 |
SEAT COVER COMP. Price: $84.99 |
| 3 |
371-27114-00-00 |
STOPPER, MAIN STAND Price: $8.49 |
| 4 |
B5C-24741-00-00 |
PAD, SEAT Price: $4.25 |
| 5 |
3P6-24780-00-00 |
SEAT LOCK ASSY Price: $42.99 |
| 6 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 7 |
2PP-24708-00-00 |
SEAT BRACKET ASSY Price: $18.99 |
| 8 |
2PP-24723-00-00 |
DAMPER, SEAT Price: $8.49 |
| 10 |
B5C-2470H-10-00 |
SEAT COVER COMP. ,2 Price: $76.99 |
| 11 |
278-27114-00-00 |
STOPPER, MAIN STAND Price: $9.49 |
| 12 |
2PP-2478X-01-00 |
BRACKET, SEAT LOCK Price: $78.99 |
| 13 |
B5C-24797-00-00 |
BRACKET, SEAT BACK Price: $15.49 |
| 14 |
B5C-2479L-00-00 |
BRACKET, SEAT BACK 2 Price: $15.49 |
| 15 |
90111-06053-00 |
BOLT,HEX. SOCKET BUT Price: $6.49 |
| 16 |
4BP-24780-00-00 |
SEAT LOCK ASSY Price: $105.99 |
| 17 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 18 |
B5C-2479D-00-00 |
WIRE, SEAT LOCK 2 Price: $11.49 |
| 19 |
2SC-2482H-00-00 |
CAP Price: $16.49 |
| 20 |
3CK-W2470-00-00 |
SEAT LOCK ASSY This part replaces 2TV-W2470-00-00. Price: $91.99 |
| 21 |
B5C-2479K-00-00 |
PLATE, LOCK Price: $14.99 |
| 22 |
92012-06012-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 23 |
2PP-2475H-00-00 |
BRACKET, SEAT LEVER 1 Price: $15.49 |
| 24 |
95817-06010-00 |
BOLT,FLANGE This part replaces 90105-06057-00. Price: $5.49 |
| 25 |
2PP-2475J-00-00 |
BRACKET, SEAT LEVER 2 Price: $5.49 |
| 26 |
92012-06012-00 |
BOLT, BUTTON HEAD This part replaces 90111-06065-00. Price: $4.70 |
| 27 |
34B-24785-00-00 |
MOLD Price: $4.00 |
| 28 |
B5C-2474A-00-00 |
ASSIST, GRIP Price: $128.99 |
| 29 |
B5C-2474W-00-00 |
ASSIST,GRIP 2 Price: $101.99 |
| 30 |
92907-08200-00 |
WASHER Price: $9.49 |
| 31 |
90109-087F1-00 |
BOLT Price: $9.49 |
| 32 |
92017-10040-00 |
BOLT, BUTTON HEAD Price: $8.49 |
| 33 |
92907-10200-00 |
WASHER, PLAIN Price: $5.49 |
| 34 |
2PP-2115J-00-00 |
BRACKET, HELMET HANGER Price: $5.49 |
| 35 |
95024-06012-00 |
BOLT, FLANGE (SMALL HEAD) Price: $4.75 |
| 36 |
B1J-28100-01-00 |
TOOL KIT This part replaces B1J-28100-00-00. Price: $26.99 |
| 37 |
3TJ-82131-00-00 |
BAND, BATTERY Price: $24.99 |
| 38 |
20S-21308-00-00 |
HELMET HANGER Price: $22.99 |
| 39 |
2H7-28151-00-00 |
GRIP, DRIVER Price: $7.49 |
| 40 |
2GV-28152-00-00 |
DRIVER Price: $5.99 |
| 41 |
23P-28164-00-00 |
WRENCH, HEXAGON 8 Price: $3.65 |
| 42 |
4KG-28186-11-00 |
POUCH This part replaces 4KG-28186-10-00. Price: $8.49 |
| 43 |
B5C-2479R-00-P0 |
PLATE, COVER Price: $58.99 |
| 44 |
90201-06085-00 |
WASHER, PLATE Price: $3.25 |
