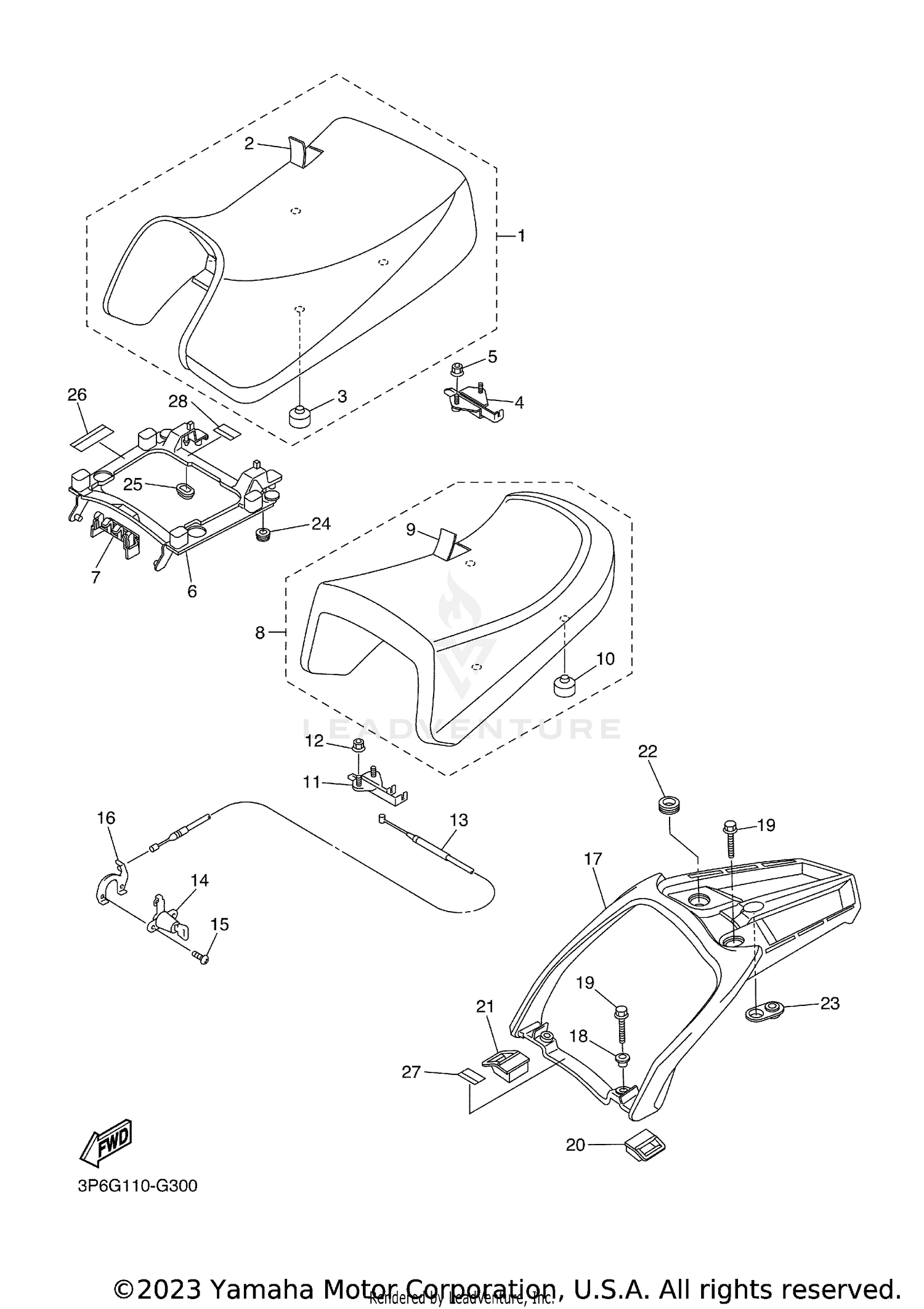

| Ref | Part Number | Description |
|---|
| 1 |
1MC-24710-01-00 |
SINGLE SEAT ASSY Price: $325.99 |
| 2 |
1MC-2470F-01-00 |
SEAT COVER COMP. Price: $117.99 |
| 3 |
5JW-24741-00-00 |
PAD, SEAT Price: $5.99 |
| 4 |
3P6-24780-00-00 |
SEAT LOCK ASSY Price: $42.99 |
| 5 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 6 |
3P6-24708-00-00 |
SEAT BRACKET ASSY Price: $80.99 |
| 7 |
3P6-24768-00-00 |
STOPPER Price: $33.99 |
| 8 |
1MC-24750-01-00 |
TANDEM SEAT ASSY Price: $268.99 |
| 9 |
1MC-2470H-01-00 |
SEAT COVER COMP. ,2 Price: $143.99 |
| 10 |
5JW-24741-00-00 |
PAD, SEAT Price: $5.99 |
| 11 |
4BP-24780-00-00 |
SEAT LOCK ASSY Price: $105.99 |
| 12 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 13 |
3P6-2478E-00-00 |
CABLE, SEAT LOCK Price: $18.99 |
| 14 |
3CK-W2470-00-00 |
SEAT LOCK ASSY This part replaces 2TV-W2470-00-00. Price: $91.99 |
| 15 |
90149-06308-00 |
SCREW Price: $9.49 |
| 16 |
3P6-2117K-01-00 |
STAY, LOCK Price: $7.49 |
| 18 |
90387-09012-00 |
COLLAR This part replaces 90387-09003-00. Price: $13.49 |
| 19 |
95022-08030-00 |
BOLT, FLANGE Price: $4.20 |
| 20 |
3P6-24723-10-00 |
DAMPER, SEAT Price: $10.99 |
| 21 |
3P6-24724-10-00 |
DAMPER, SEAT Price: $8.49 |
| 22 |
90480-28191-00 |
GROMMET Price: $11.49 |
| 23 |
3P6-24747-00-00 |
DAMPER, SEAT Price: $10.49 |
| 24 |
90480-13567-00 |
GROMMET Price: $5.49 |
| 25 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 26 |
3JJ-28446-A2-00 |
LABEL, CAUTION Price: $4.95 |
| 27 |
3TB-24877-A1-00 |
LABEL, CAUTION Price: $5.99 |
