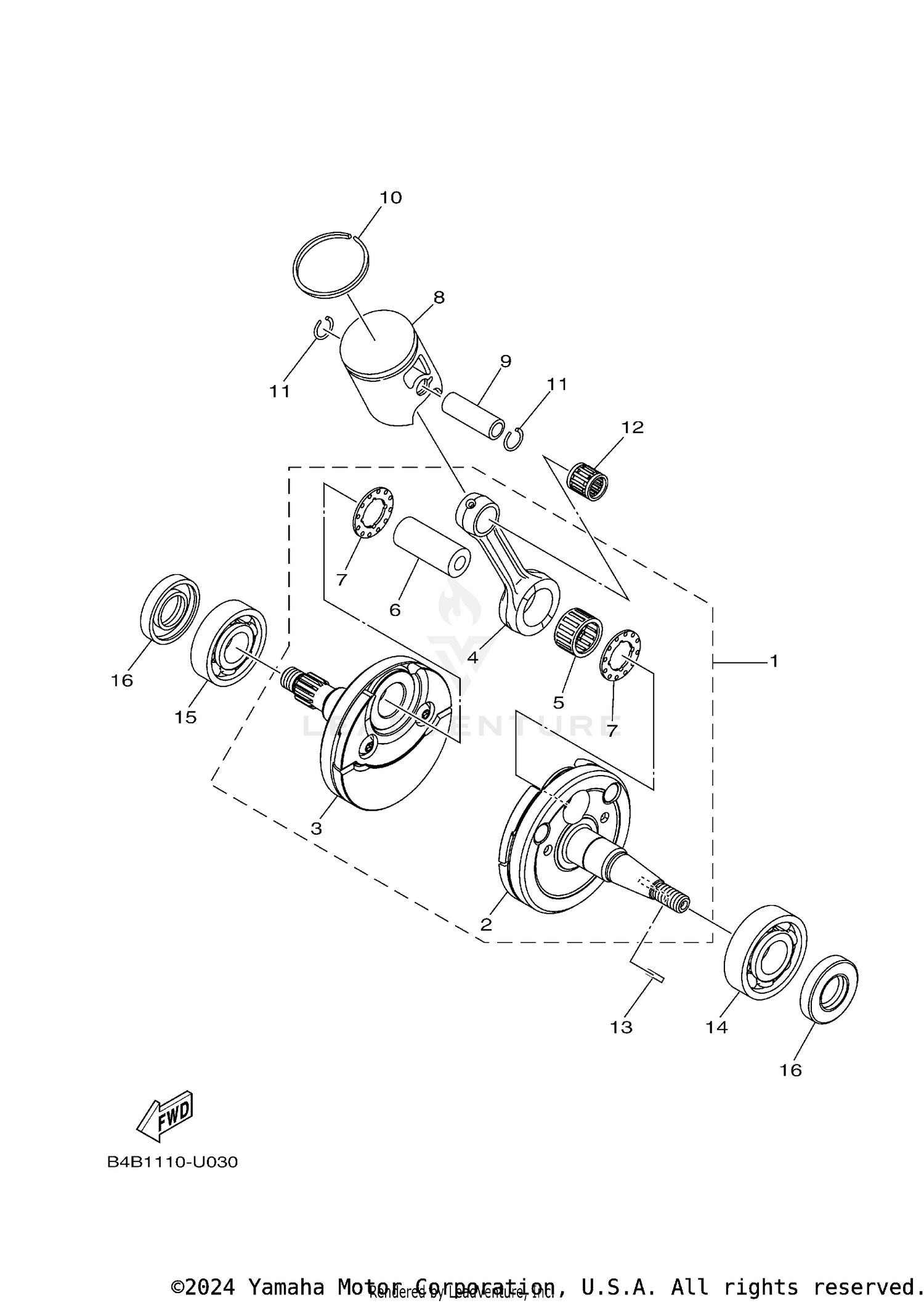

CRANKSHAFT PISTON
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B4B-11400-00-00 | CRANKSHAFT ASSY Price: $366.99 |
| 2 | B4B-11410-00-00 | CRANKSHAFT Price: $169.99 |
| 3 | B4B-11420-00-00 | CRANKSHAFT Price: $144.99 |
| 4 | B4B-11651-00-00 | ROD, CONNECTING Price: $52.99 |
| 5 | 93310-420B1-00 | BEARING Price: $53.99 |
| 6 | 2RA-11681-00-00 | PIN, CRANK 1 Price: $41.99 |
| 7 | 90209-20159-00 | WASHER Price: $6.49 |
| 9 | 4ES-11633-00-00 | PIN, PISTON Price: $17.99 |
| 10 | 5PA-11611-01-00 | RING, PISTON This part replaces 5PA-11611-00-00. Price: $17.99 |
| 11 | 93450-16115-00 | CIRCLIP Price: $4.20 |
| 12 | 93310-21417-00 | BEARING Price: $36.99 |
| 13 | 90280-03017-00 | KEY, WOODRUFF This part replaces 90280-03045-00. Price: $8.49 |
| 14 | 93306-20468-00 | BEARING This part replaces 93306-20438-00. Price: $47.99 |
| 15 | 93306-30421-00 | BEARING (B6304C3) Price: $71.99 |
