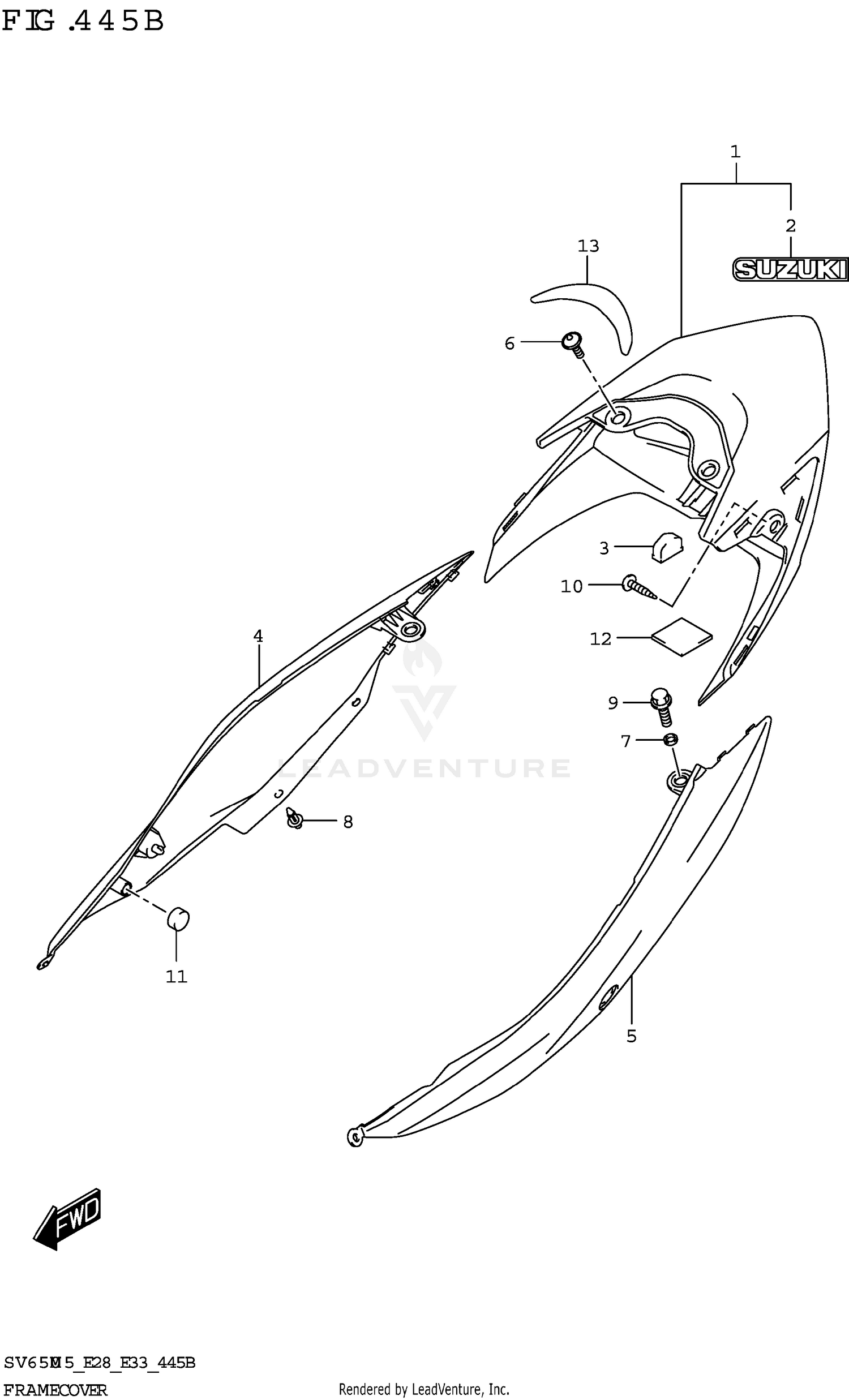

FRAME COVER ((SV650XA):(E28))
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 47310-18KA1-4UX | COVER,FRAME REAR CTR (BLACK) Price: Call Us |
| 3 | 47315-18K00 | CUSHION,FRAME COVER CTR Price: $13.76 |
| 4 | 47411-18KA2-QU2 | COVER,FRAME REAR,R (WHITE) Price: Call Us |
| 5 | 47511-18KA2-QU2 | COVER,FRAME REAR,L (WHITE) Price: Call Us |
| 6 | 09139-05074 | BOLT (5X13) Price: $3.02 |
| 7 | 09180-08052 | SPACER (8.5X12X2.5) Price: $1.25 |
| 8 | 09409-06314-5PK | CLIP This part replaces 09409-06314. Price: $3.23 |
| 9 | 01550-0812A | BOLT Price: $2.79 |
| 10 | 03541-0510A | SCREW Price: $1.73 |
| 11 | 09329-14003 | CUSHION (14X20X9) Price: $3.31 |
| 12 | 33652-20C00 | PROTECTOR (50X50X5) This part replaces 33652-24B00. Price: $3.69 |
