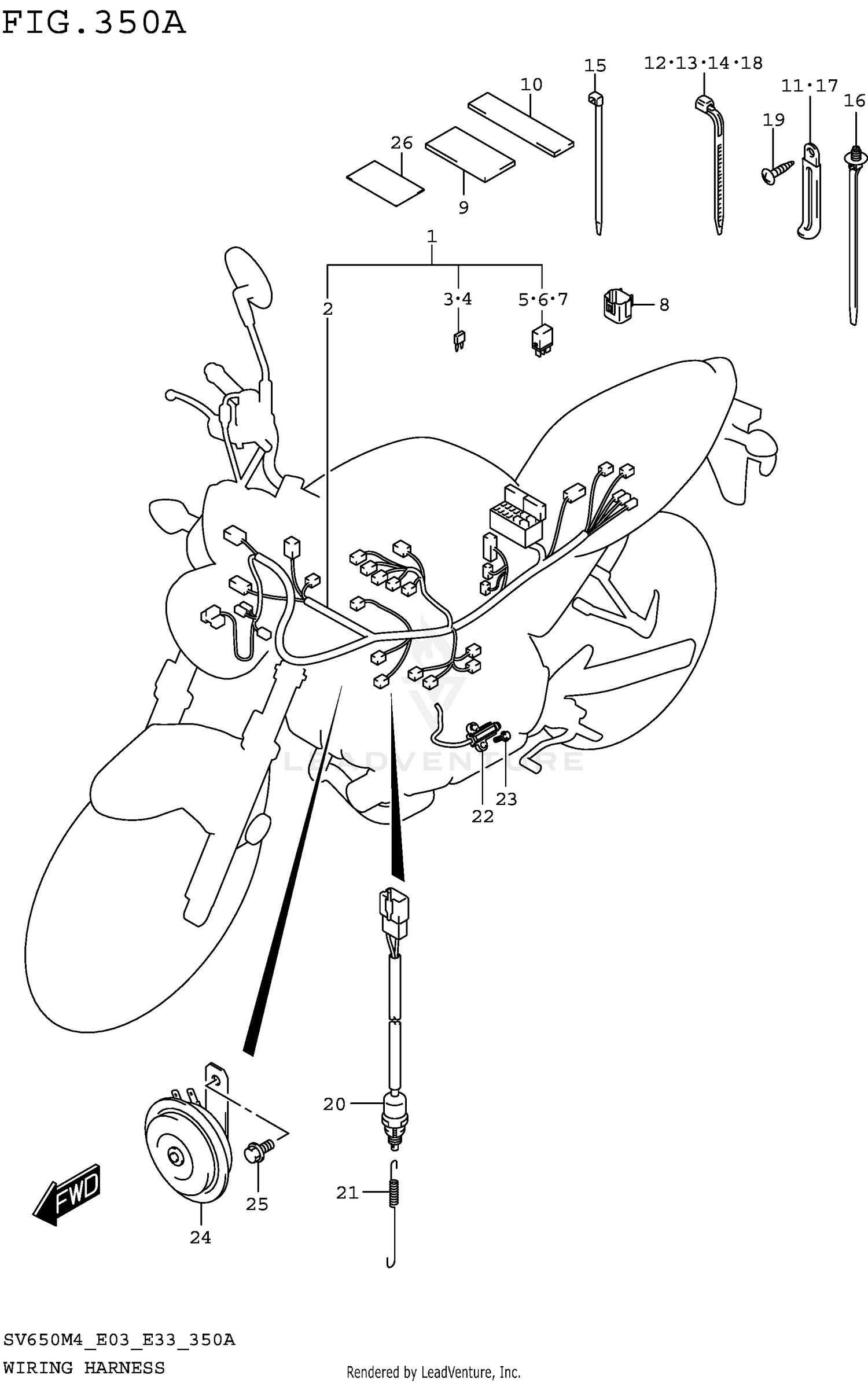

WIRING HARNESS (SV650M4 E03)
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-18K20 | HARNESS,WIRING Price: $909.82 |
| 9 | 36920-08D00 | PROTECTOR (30X60X3) Price: $2.03 |
| 10 | 94474-22D00 | PROTECTOR (30X70) Price: $8.88 |
| 11 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 12 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 13 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 14 | 09407-19401 | CLAMP (L:190) Price: $3.22 |
| 15 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 16 | 09407-17403 | CLAMP (L:170) Price: $6.24 |
| 17 | 09404-06030 | CLAMP (L:80) Price: Call Us |
| 18 | 09407-25401 | CLAMP (L:235) Price: $5.68 |
| 19 | 03541-0412A | SCREW Price: $1.65 |
| 20 | 37740-44H01 | SWITCH ASSY,STOP LAMP Price: $21.51 |
| 21 | 09443-06016 | SPRING Price: $3.47 |
| 22 | 37840-25D02 | SWITCH ASSY,SIDE STAND This part replaces 37840-25D01. Price: $65.20 |
| 23 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 24 | 38500-18K00 | HORN ASSY Price: $64.81 |
| 25 | 01550-0812A | BOLT Price: $2.79 |
| 26 | 36611-16G00 | TAPE,HARNESS (28X50X0.13) Price: $3.28 |
