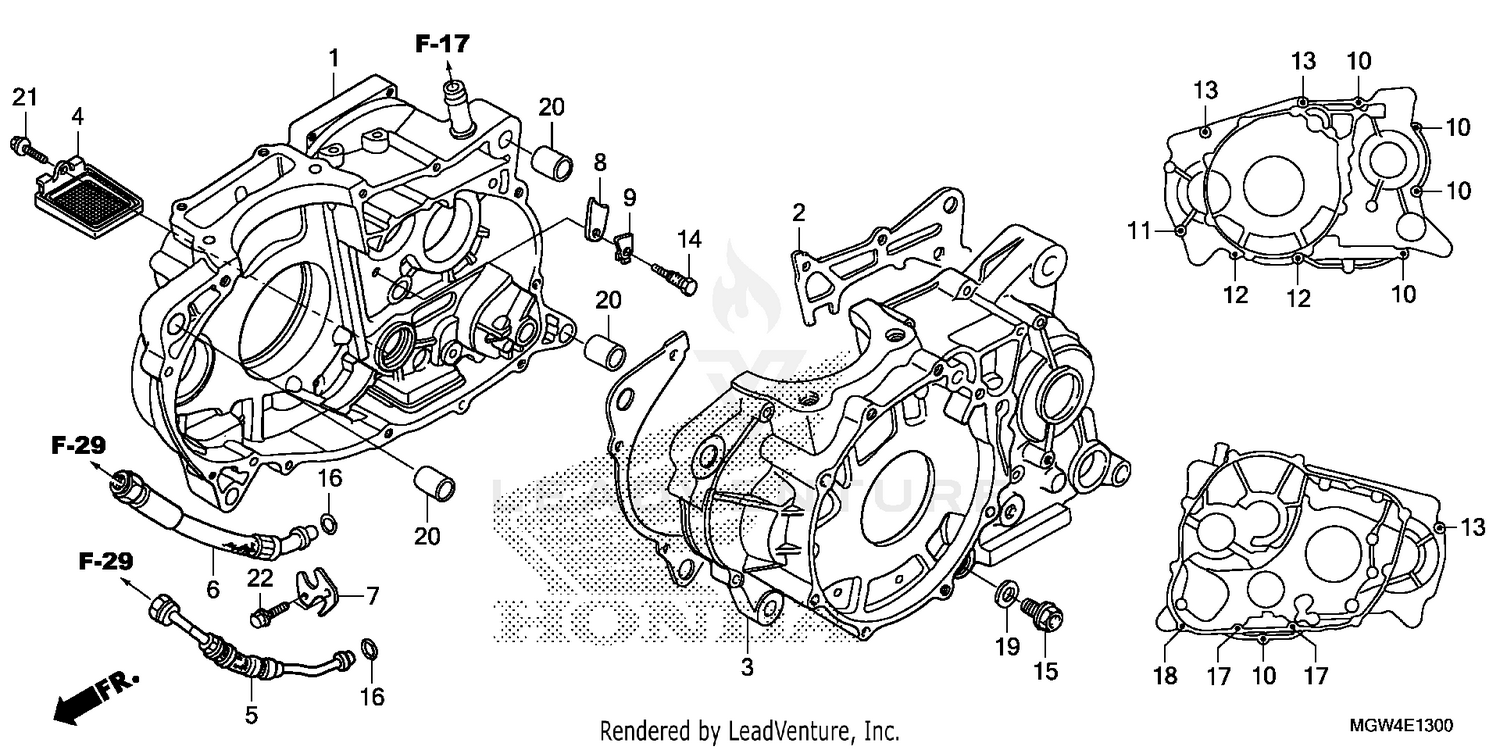

| Ref | Part Number | Description |
|---|
| 1 |
11100-MY6-671 |
CRANKCASE, R. Price: $555.06 |
| 2 |
11191-MN1-702 |
GASKET, CRANKCASE Price: $29.16 |
| 3 |
11200-MY6-670 |
CRANKCASE, L. Price: $595.34 |
| 4 |
15421-MN1-671 |
SCREEN, OIL FILTER (KOYO) Price: $13.36 |
| 5 |
15610-MN1-702 |
HOSE A, OIL Price: $137.45 |
| 6 |
15620-MN1-670 |
HOSE B, OIL Price: $135.80 |
| 7 |
15630-MG3-010 |
PLATE Price: $13.09 |
| 8 |
23521-MAN-690 |
PLATE, BEARING SETTING Price: $7.40 |
| 9 |
23523-MG2-790 |
WASHER, LOCK (8MM) Price: $3.65 |
| 10 |
90004-GHB-690 |
BOLT, FLANGE (6X32) (NSHF) Price: $4.84 |
| 11 |
90004-GHB-710 |
BOLT, FLANGE (6X40) (NSHF) Price: $5.11 |
| 12 |
90004-GHB-720 |
BOLT, FLANGE (6X45) (NSHF) Price: $5.29 |
| 13 |
90004-GHB-730 |
BOLT, FLANGE (6X50) (NSHF) Price: $5.33 |
| 14 |
90088-MG3-000 |
BOLT, SPECIAL (8MM) Price: $7.20 |
| 15 |
90131-896-650 |
BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000. Price: $2.76 |
| 16 |
91302-MG2-792 |
GASKET, RUBBER (10.5MM) Price: $5.09 |
| 17 |
92900-06022-0E |
BOLT 2, STUD (6X22) Price: $1.65 |
| 18 |
92900-06035-0E |
BOLT 2, STUD (6X35) Price: $1.85 |
| 19 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 20 |
94301-14200 |
PIN A, DOWEL (14X20) Price: $2.58 |
| 21 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
