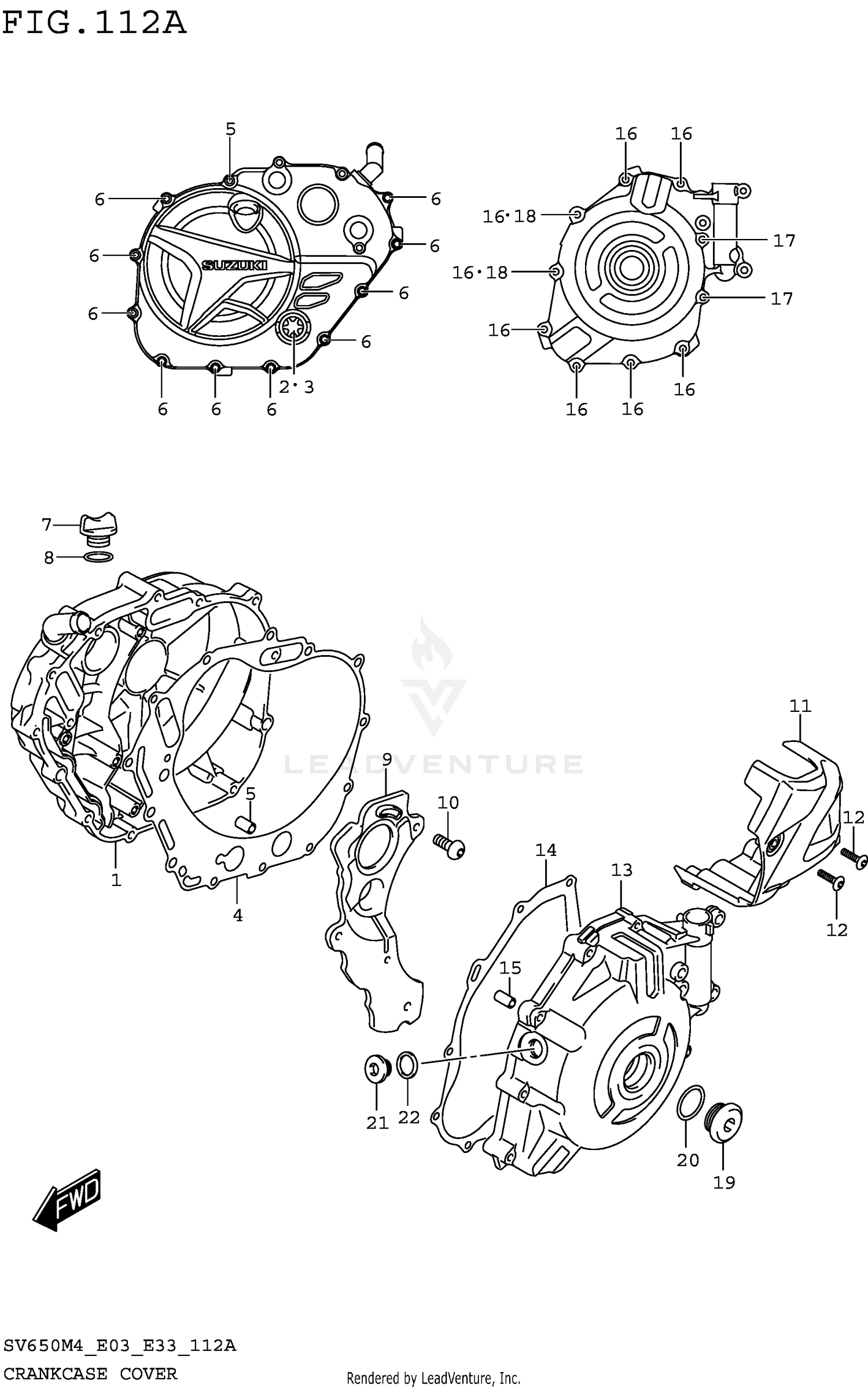

CRANKCASE COVER
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11340-18K00 | COVER,CLUTCH Price: $364.69 |
| 3 | 08331-4130A | CIRCLIP Price: $2.85 |
| 5 | 04211-09149 | PIN (8.5X18X2.3) Price: $1.99 |
| 6 | 09103-06530 | BOLT (L:35) Price: $2.23 |
| 7 | 11971-25D00 | PLUG, ENGINE OIL FILLER Price: $6.31 |
| 8 | 09280-17003 | O-RING (D:3.1,ID:16.8) Price: $1.99 |
| 9 | 11343-44H01 | SEPARATOR,OIL Price: $56.08 |
| 10 | 09106-06098 | BOLT (6X12) Price: $2.19 |
| 11 | 11360-18K00 | COVER,ENG SPROCKET Price: $45.43 |
| 12 | 09139-06029 | SCREW (6X25) Price: $6.53 |
| 13 | 11351-44H10 | COVER,MAGNETO Price: $304.12 |
| 15 | 04211-09149 | PIN (8.5X18X2.3) Price: $1.99 |
| 16 | 09103-06530 | BOLT (L:35) Price: $2.23 |
| 17 | 09103-06536 | BOLT,MAGNETO COVER (6X65) Price: $3.19 |
| 18 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 19 | 09259-26012 | PLUG Price: $13.71 |
| 20 | 09280-22008 | O-RING (D:3.1,ID:22.7) Price: $2.37 |
| 21 | 09248-16012 | PLUG (16X8) Price: $5.66 |
