Parts Catalog

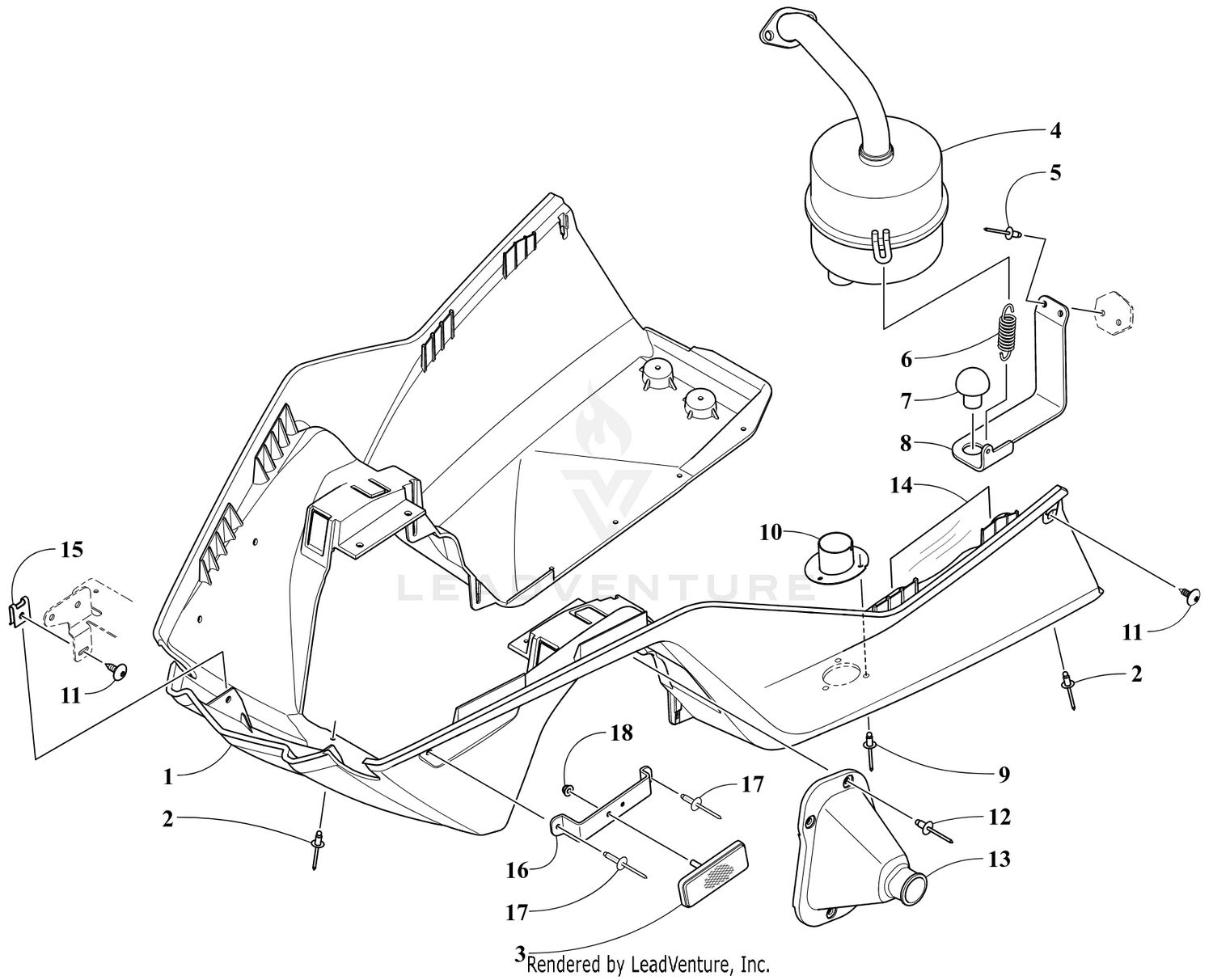

BELLY PAN AND EXHAUST ASSEMBLIES [106108]

Parts (18)

Ref	Part Number	Description
2	8061-506	Rivet Price: $1.07
3	6606-819	Reflector - Amber Price: $19.35
4	1712-779	Muffler Price: $259.95
5	8060-484	Rivet Price: $0.46
6	0123-321	Spring, Extension Price: $5.70
7	0612-111	Bumper, Molded - Rubber Price: $17.80
8	0712-914	Bracket, Muffler Support Price: $17.80
9	8061-508	Rivet Price: $1.53
10	2712-084	Outlet, Belly Pan - Black Price: $23.76
11	2623-166	Screw, Self-Tapping Price: $1.66
12	8060-508	Rivet Price: $0.58
13	0605-464	Boot, Tie Rod - Right Price: $49.95
13	0605-465	Boot, Tie Rod - Left Price: $45.95
14	2606-571	Foil Price: $7.08
15	1623-939	Nut, U Price: $1.30
16	6716-118	Bracket, Reflector - Right - Black Price: $18.84
16	6716-119	Bracket, Reflector - Left - Black Price: $24.95
17	0623-853	Rivet Price: $1.32
