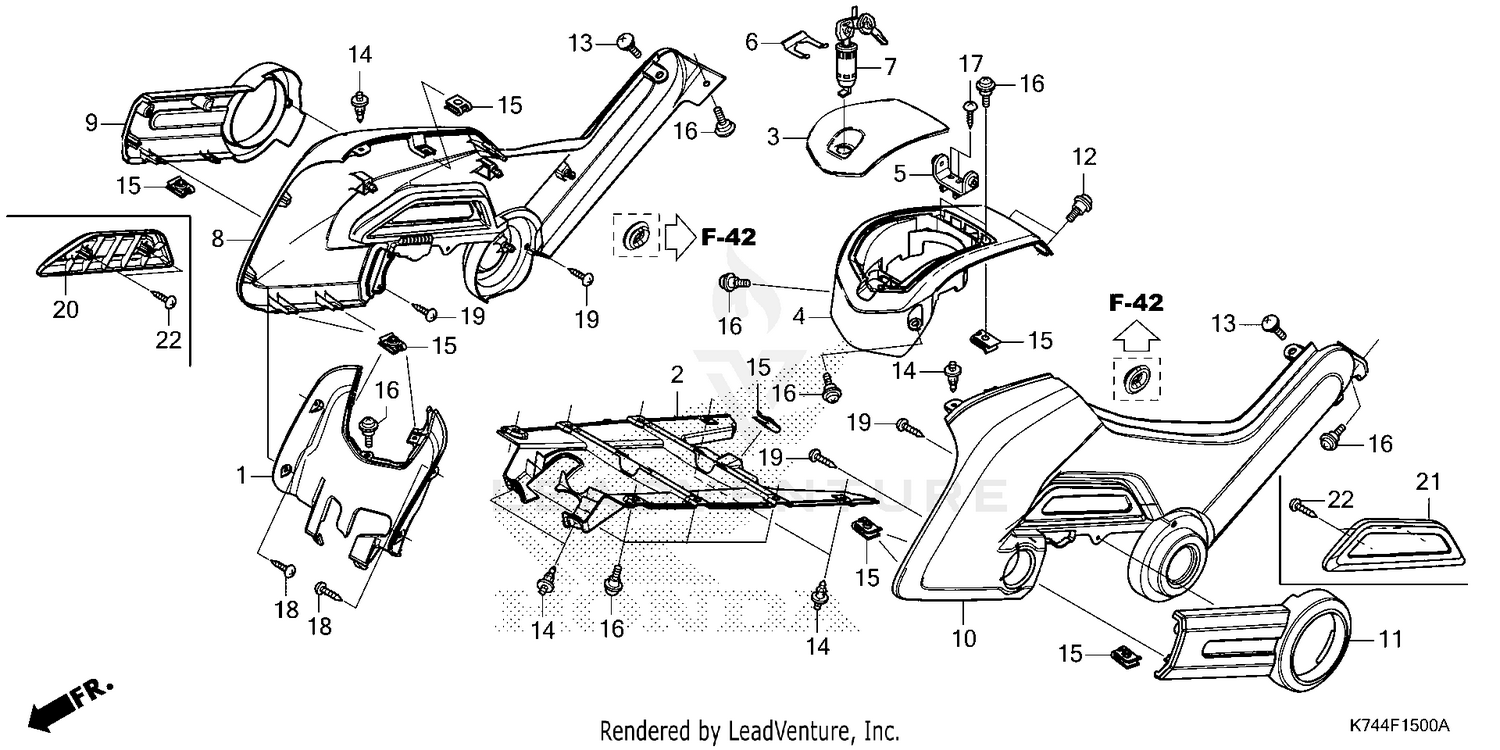

| Ref | Part Number | Description |
|---|
| 1 |
64410-K74-A00 |
COVER, TANK CENTER Price: $2.11 |
| 2 |
64420-K74-A00 |
COVER, TANK (LOWER) Price: $2.84 |
| 3 |
64430-K74-N00 |
LID, TANK Price: $2.27 |
| 4 |
64440-K74-N00 |
COVER, TANK Price: $3.56 |
| 5 |
64450-K74-N00 |
HINGE, TANK Price: $0.60 |
| 6 |
75581-GN8-920 |
SPRING, LOCK KEY SETTING Price: $6.02 |
| 7 |
77239-K74-N01 |
KEY, FUEL LOCK Price: $6.84 |
| 8 |
83500-K74-N80ZE |
COVER ASSY., R. SIDE (TYPE5) (WL) (NOT AVAILABLE) Price: $19.05 |
| 9 |
83520-K74-N00ZB |
COVER, R. SIDE (LOWER) *NH303M* (MAT AXIS GRAY METALLIC) Price: $15.96 |
| 10 |
83600-K74-N80ZE |
COVER ASSY., L. SIDE (TYPE5) (WL) (NOT AVAILABLE) Price: $18.49 |
| 11 |
83620-K74-N00ZB |
COVER, L. SIDE (LOWER) *NH303M* (MAT AXIS GRAY METALLIC) Price: $14.24 |
| 12 |
90102-GB2-720 |
SCREW, PAN (5X16) Price: $2.64 |
| 13 |
90123-750-000 |
SCREW, METER VISOR SETTING This part replaces 90104-KT2-000. Price: $4.76 |
| 14 |
90116-SP0-003 |
CLIP, BUMPER SEAL Price: $5.93 |
| 15 |
90320-GC3-000 |
NUT, SPRING (5MM) Price: $2.64 |
| 16 |
91509-GE2-760 |
SCREW, PAN (5X11.5) Price: $2.71 |
| 17 |
93903-24280 |
SCREW, TAPPING (4X10) Price: $1.42 |
| 18 |
93903-24480 |
SCREW, TAPPING (4X16) Price: $0.95 |
