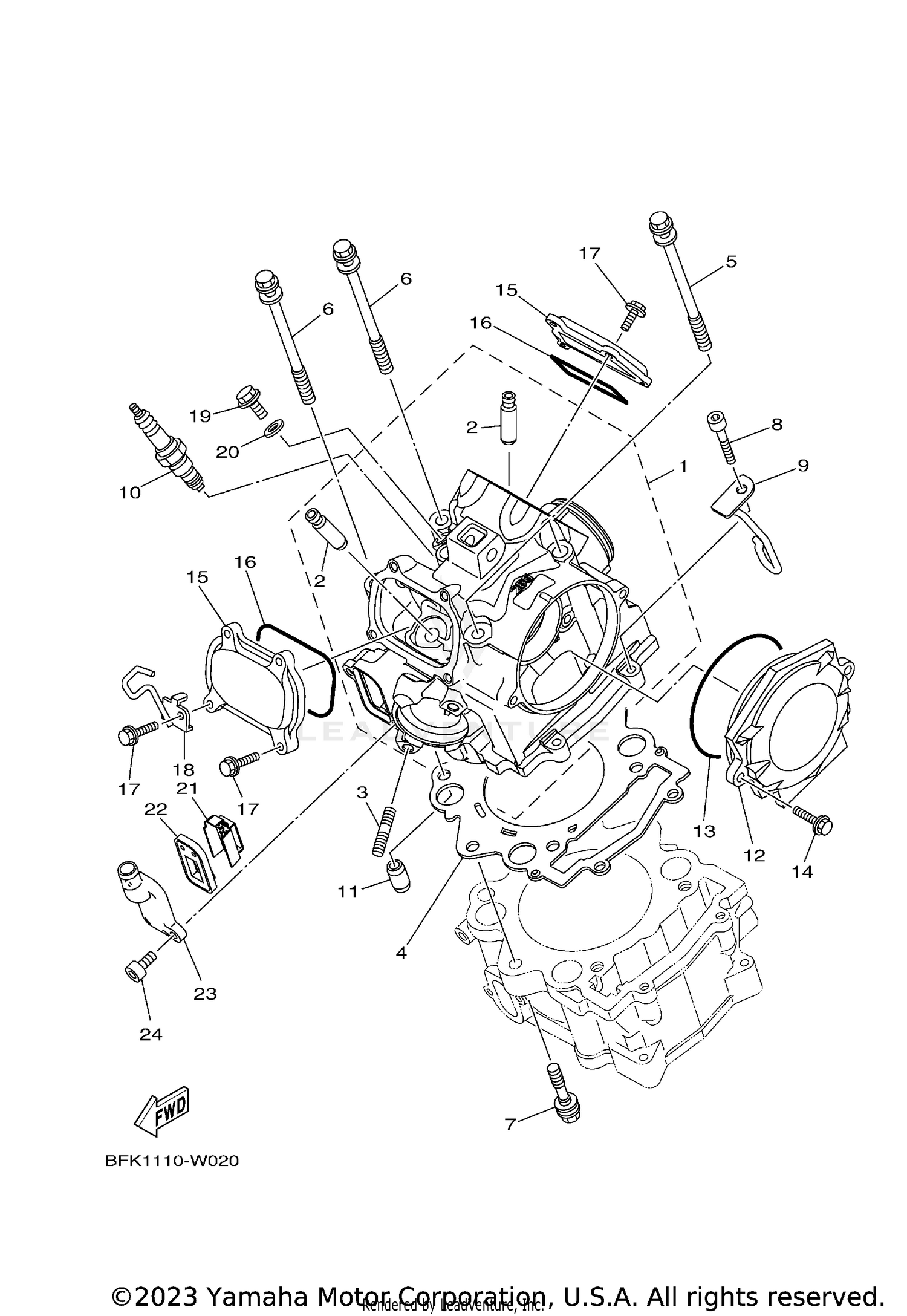

| Ref | Part Number | Description |
|---|
| 1 |
2LS-11101-08-00 |
CYLINDER HEAD ASSY Price: $902.99 |
| 2 |
4G0-11133-11-00 |
GUIDE, VALVE 1 Price: $53.99 |
| 3 |
95612-08625-00 |
BOLT, STUD Price: $6.49 |
| 4 |
3B4-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $58.99 |
| 5 |
90109-09003-00 |
BOLT Price: $11.49 |
| 6 |
90109-09002-00 |
BOLT Price: $11.49 |
| 7 |
90109-09005-00 |
BOLT Price: $9.49 |
| 8 |
90110-06138-00 |
BOLT This part replaces 91312-06030-00. Price: $6.49 |
| 9 |
BFK-11395-00-00 |
HOLDER Price: $13.99 |
| 10 |
CR8-E0000-00-00 |
PLUG, SPARK (NGK CR8E) Price: $10.49 |
| 11 |
93612-16254-00 |
PIN, DOWEL Price: $6.49 |
| 12 |
1S3-11185-10-00 |
COVER, CYLINDER HEAD SIDE 3 Price: $73.99 |
| 13 |
93210-96601-00 |
O-RING Price: $13.49 |
| 14 |
95022-06020-00 |
BOLT, FLANGE Price: $3.90 |
| 15 |
1S3-11186-00-00 |
COVER, CYLINDER HEAD SIDE 2 Price: $33.99 |
| 16 |
93210-78544-00 |
O-RING Price: $13.49 |
| 17 |
95022-06020-00 |
BOLT, FLANGE Price: $3.90 |
| 18 |
1S3-1131E-00-00 |
HOLDER 1 Price: $17.99 |
| 19 |
90401-08004-00 |
BOLT, UNION Price: $9.49 |
| 20 |
90430-08119-00 |
GASKET Price: $7.49 |
| 21 |
2BG-1482K-00-00 |
PLATE Price: $15.49 |
| 22 |
5JW-14890-00-00 |
REED VALVE ASSY Price: $71.99 |
| 23 |
5JW-14889-00-00 |
CAP, CASE Price: $74.99 |
