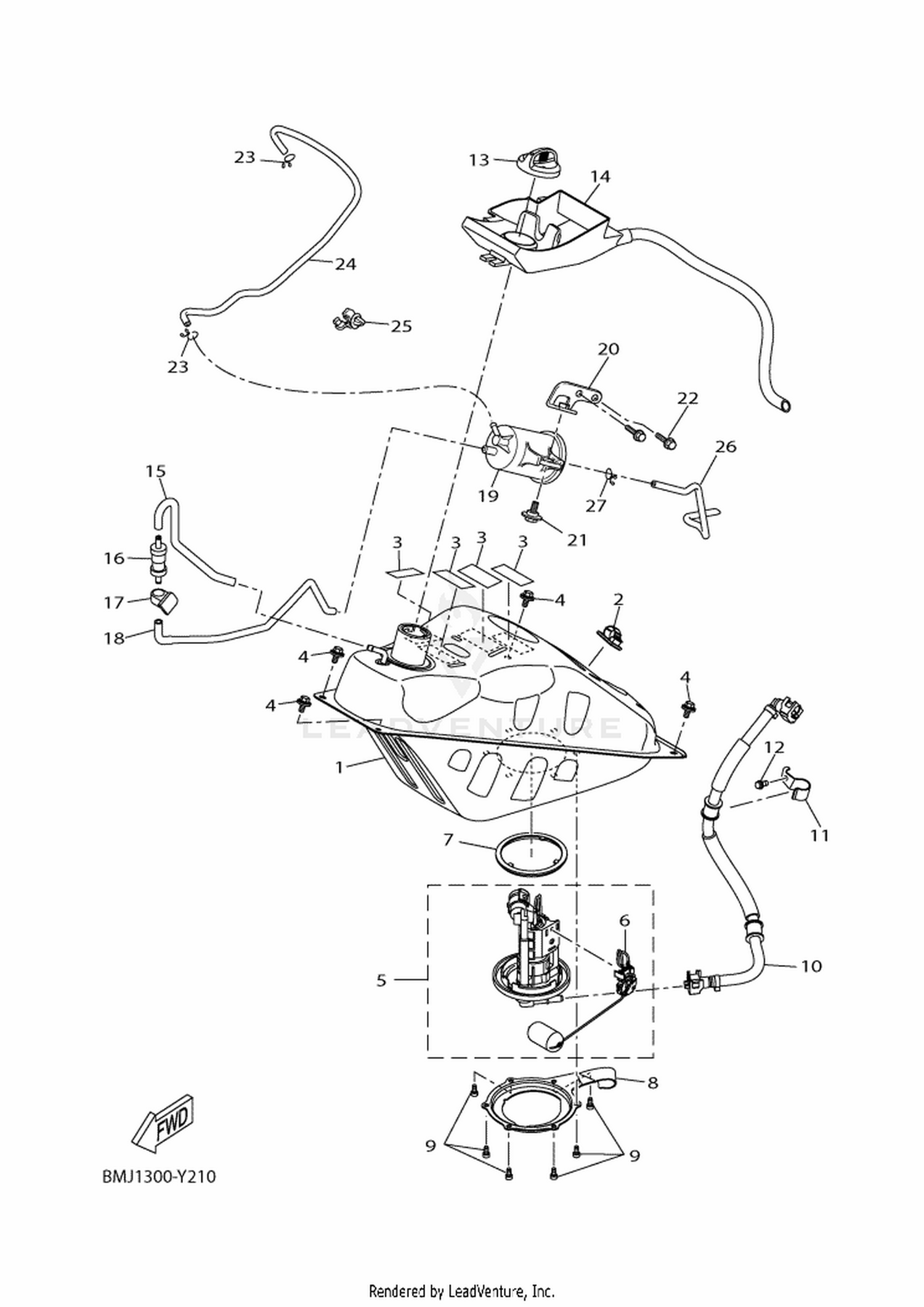

21 FUEL TANK
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B9Y-F4110-02 | FUEL TANK COMP. Price: Call Us |
| 2 | 90464-13185 | CLAMP Price: Call Us |
| 3 | BBR-F414G-20 | SEAL Price: Call Us |
| 4 | 90119-068A2 | BOLT, WITH WASHER Price: Call Us |
| 5 | B9Y-E3907-00 | FUEL PUMP COMP. Price: Call Us |
| 7 | 54P-F414G-10 | SEAL Price: Call Us |
| 8 | B9Y-F4425-00 | BRACKET, FUEL PUMP 1 Price: Call Us |
| 9 | 91312-05010 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 10 | B9Y-E3971-00 | PIPE, FUEL 1 Price: Call Us |
| 11 | B9Y-F419A-00 | HOLDER Price: Call Us |
| 12 | 95E37-06012 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 13 | B74-F4610-00 | CAP ASSY Price: Call Us |
| 14 | B74-F414A-00 | COVER, FILLER Price: Call Us |
| 15 | B74-F4313-00 | PIPE 3 Price: Call Us |
| 16 | 1DW-F4180-02 | ROLL OVER VALVE ASSY Price: Call Us |
| 17 | B74-F4135-00 | CLAMP 1 Price: Call Us |
| 18 | B74-F4314-01 | PIPE 4 Price: Call Us |
| 19 | B2T-F4170-00 | CANISTER ASSY Price: Call Us |
| 20 | B9Y-F452E-00 | STAY Price: Call Us |
| 21 | 90109-068B5 | BOLT Price: Call Us |
| 22 | 95E32-06012 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 23 | 90467-08003 | CLIP Price: Call Us |
| 24 | B9Y-F4315-00 | PIPE 5 Price: Call Us |
| 25 | 90464-12018 | CLAMP Price: Call Us |
| 26 | B9Y-F4316-00 | PIPE 6 Price: Call Us |
