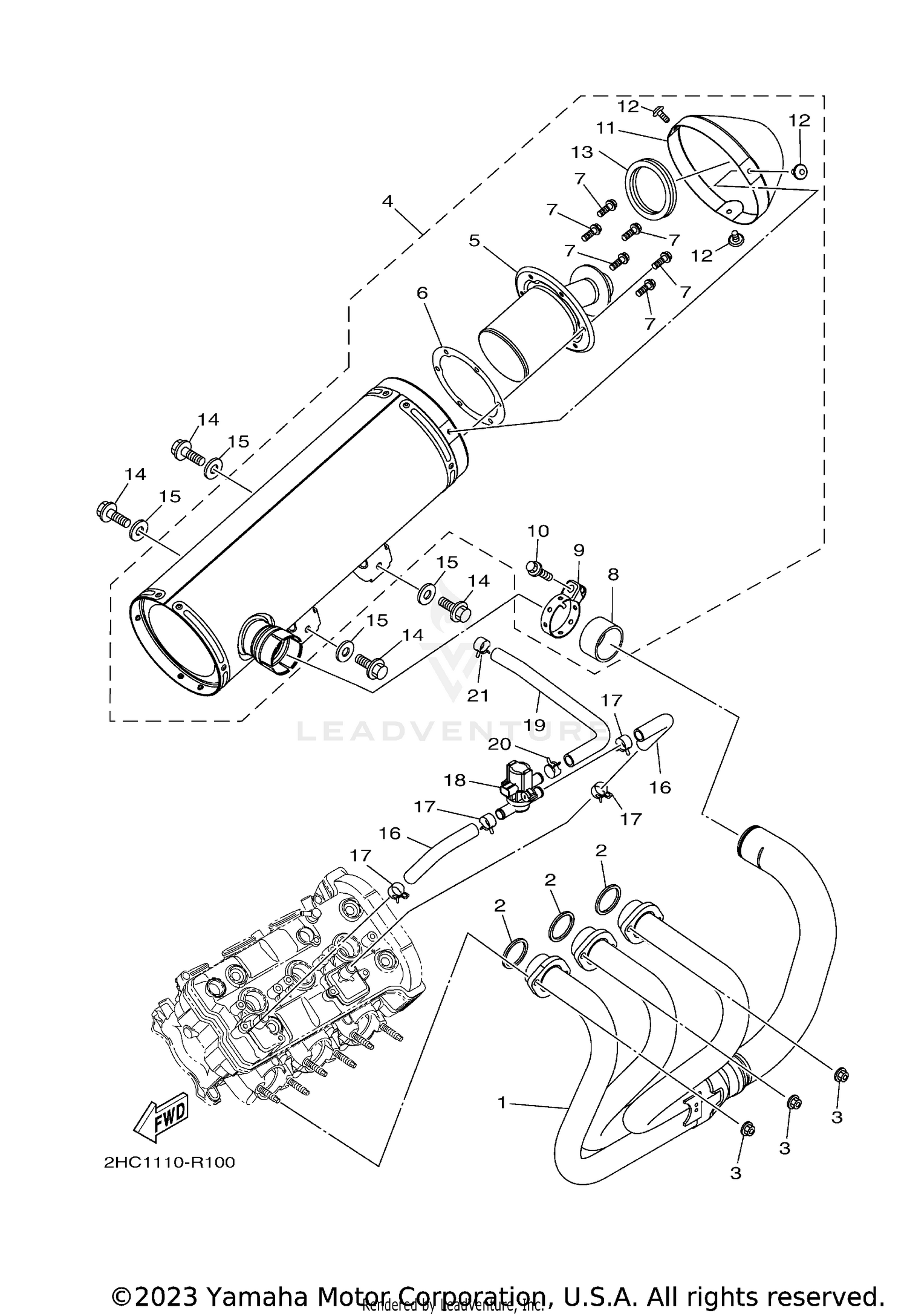

EXHAUST
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2HC-14602-00-00 | EXHAUST PIPE COMP. Price: $421.99 |
| 2 | 4FM-14613-00-00 | GASKET, EXHAUST PIPE Price: $13.49 |
| 3 | 90179-08410-00 | NUT Price: $6.49 |
| 4 | B5H-E4710-03-00 | MUFFLER ASSY 1 This part replaces B5H-E4710-01-00. Price: $848.99 |
| 5 | 2HC-14780-00-00 | SPARK ARRESTER ASSY Price: $47.99 |
| 6 | 2HC-14755-00-00 | GASKET, SILENCER Price: $24.99 |
| 7 | 95022-06012-00 | BOLT, FLANGE Price: $3.55 |
| 8 | 1SL-14714-00-00 | GASKET, MUFFLER Price: $32.99 |
| 9 | 1SL-14715-00-00 | BAND, MUFFLER Price: $33.99 |
| 10 | 95022-08035-00 | BOLT, FLANGE Price: $4.10 |
| 11 | B5H-14799-00-00 | CAP Price: $98.99 |
| 12 | 90149-06298-00 | SCREW Price: $6.49 |
| 13 | 2HC-1475P-00-00 | SEAT Price: $32.99 |
| 14 | 90101-10038-00 | BOLT Price: $8.49 |
| 15 | 90201-10034-00 | WASHER, PLATE Price: $8.49 |
| 16 | 2HC-E4881-00-00 | HOSE, BEND 1 Price: $3.60 |
| 17 | 90467-17128-00 | CLIP This part replaces 90467-17089-00. Price: $9.49 |
| 18 | 2HC-14840-00-00 | AIR CUT VALVE ASSY Price: $128.99 |
| 19 | 2HC-E4882-00-00 | HOSE, BEND 2 Price: $5.49 |
| 20 | 90467-17128-00 | CLIP This part replaces 90467-17089-00. Price: $9.49 |
