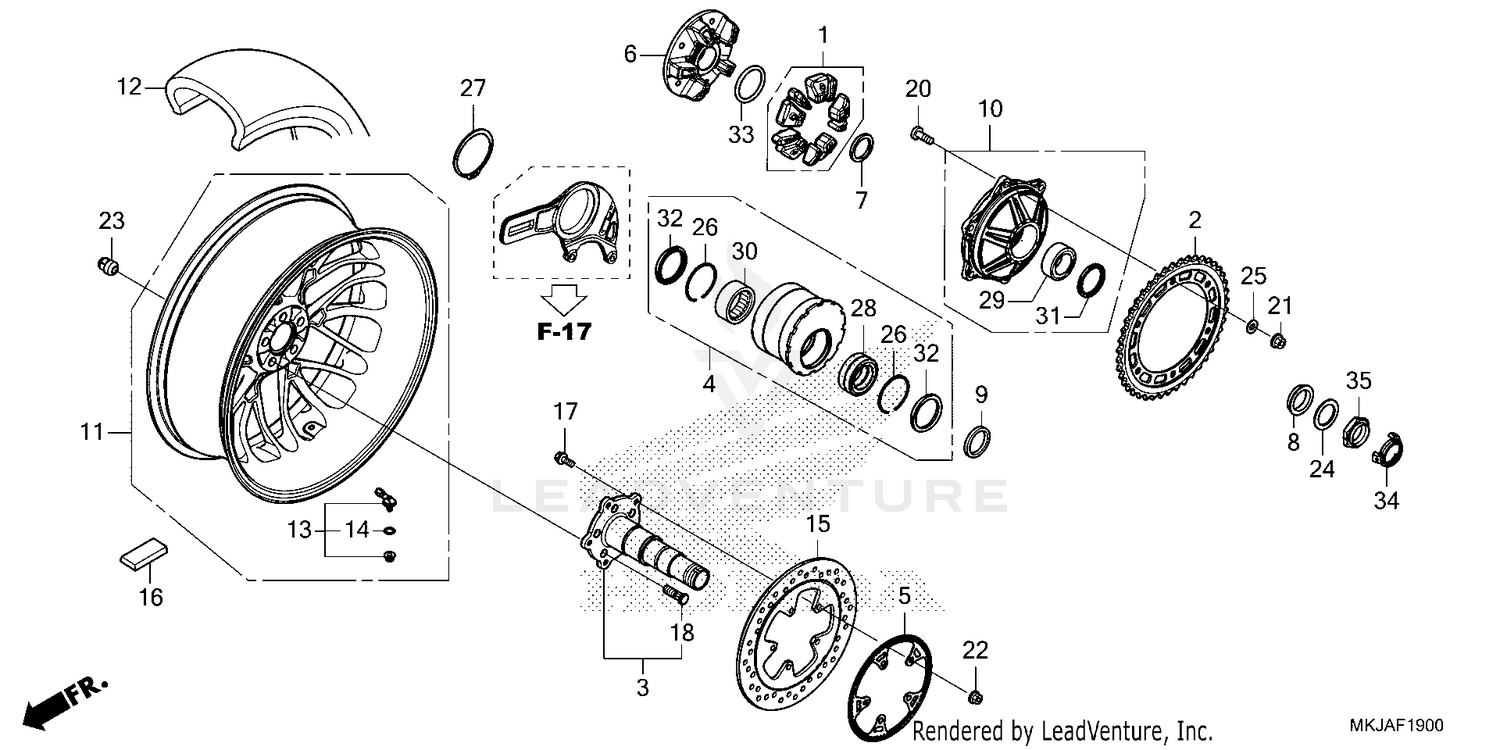

| Ref | Part Number | Description |
|---|
| 1 |
06410-MKJ-D00 |
DAMPER SET, FINAL DRIVEN Price: $65.04 |
| 2 |
41201-MKJ-D01 |
SPROCKET, FINAL DRIVEN (44T) Price: $102.78 |
| 3 |
42300-MKJ-E50 |
AXLE, RR. Price: $267.78 |
| 4 |
42500-MBG-000 |
HOLDER, BEARING Price: $338.38 |
| 5 |
42515-MKJ-D00 |
RING, RR. PULSER Price: $122.67 |
| 6 |
42605-MKJ-D00 |
HUB, FINAL DRIVEN Price: $164.78 |
| 7 |
42621-MKJ-D00 |
COLLAR, RR. AXLE DISTANCE Price: $12.25 |
| 8 |
42622-MT4-000 |
COLLAR, RR. AXLE SIDE Price: $25.00 |
| 9 |
42623-MBG-000 |
COLLAR, RR. AXLE Price: $25.76 |
| 10 |
42630-MKJ-D00 |
HUB ASSY., SPROCKET Price: $405.89 |
| 11 |
42650-MKJ-E60ZA |
WHEEL SUB (TYPE1) Price: $1,119.29 |
| 12 |
42711-MKJ-E51 |
TIRE, RR. Price: $283.44 |
| 12 |
42711-MKJ-E52 |
TIRE, RR. Price: $283.44 |
| 13 |
42755-MKA-D81 |
VALVE ASSY., CLAMP IN Price: $20.09 |
| 14 |
42758-MKA-D81 |
O-RING Price: $1.75 |
| 15 |
43251-MKJ-D00 |
DISK, RR. BRAKE Price: $357.25 |
| 16 |
44721-MGH-H21 |
WEIGHT, BALANCE (10G) Price: $4.05 |
| 16 |
44722-MGH-H21 |
WEIGHT, BALANCE (15G) Price: $4.85 |
| 16 |
44723-MGH-H21 |
WEIGHT, BALANCE (20G) Price: $4.63 |
| 17 |
90102-MFN-D00 |
BOLT, FLANGE (8X20) Price: $2.20 |
| 18 |
90113-SM1-005 |
BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-005. Price: $3.35 |
| 20 |
90121-MFN-D00 |
BOLT (10X30) Price: $3.33 |
| 21 |
90304-MFN-D01 |
NUT, U FLANGE (10MM) Price: $3.02 |
| 22 |
90309-428-731 |
NUT, FLANGE (M8X1.25) (SELF-LOCK) Price: $4.20 |
| 23 |
90304-TLA-A11 |
NUT, WHEEL (FUSE RASHI) Price: $2.58 |
| 24 |
90501-MBG-003 |
WASHER, CONICAL SPRING (35) Price: $8.82 |
| 25 |
90502-MFN-D00 |
WASHER (10MM) Price: $2.76 |
| 26 |
90651-ML0-731 |
CIRCLIP (INNER) (62MM) Price: $6.84 |
| 27 |
90652-ML0-731 |
CIRCLIP (OUTER) (75MM) Price: $11.91 |
| 28 |
91061-ML0-731 |
BEARING, RADIAL BALL (6908LU) Price: $57.64 |
| 29 |
91061-MT4-003 |
BEARING, RADIAL BALL (35X55X10) Price: $107.80 |
| 30 |
91062-MR7-003 |
BEARING, RR. AXLE NEEDLE Price: $51.42 |
| 31 |
91258-ML7-003 |
DUST SEAL (45X55X5) (ARAI) Price: $10.49 |
| 32 |
91284-MR7-003 |
DUST SEAL (50X62X5) Price: $15.49 |
| 33 |
91352-MN8-003 |
O-RING, SPROCKET HUB (52X2) Price: $2.98 |
| 34 |
42302-MKJ-E50 |
CAP, RR. AXLE NUT Price: $9.53 |
