Parts Catalog

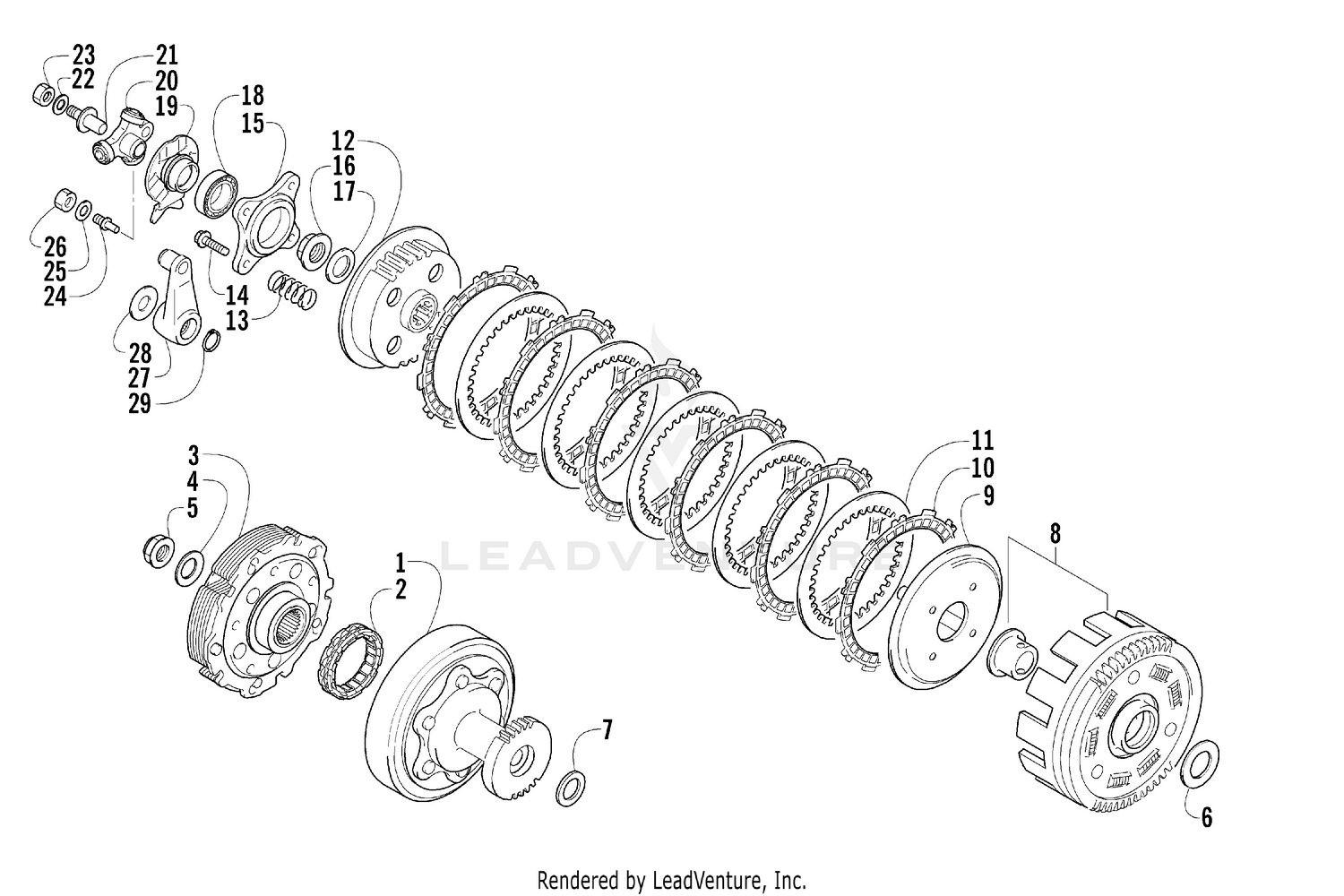

CLUTCH ASSEMBLY [60032]

Parts (28)

Ref	Part Number	Description
1	3446-329	HOUSING, STARTER CLUTCH Price: $266.95
2	3446-003	Clutch, One Way Price: $211.63
3	3446-330	SHOE, STARTER CLUTCH Price: $510.79
4	3423-032	WASHER,20MM Price: $4.36
5	3423-081	NUT, STARTER CLUTCH SHOE Price: $17.15
6	3423-122	WASHER, PRIMARY DRIVEN GEAR-M22X42 Price: $4.71
7	3423-350	WASHER,T:2.0,33MM Price: $7.23
8	3446-331	GEAR ASSY, PRIMARY DRIVEN Price: $472.95
9	3446-008	DISK, CLUTCH PRESSURE Price: $79.95
10	3446-332	PLATE, CLUTCH DRIVE Price: $63.67
11	3446-007	PLATE, CLUTCH DRIVEN Price: $39.91
12	3446-004	HUB, CLUTCH SLEEVE Price: $133.95
13	3423-544	SPRING, CLUTCH Price: $21.79
14	3423-330	BOLT 6X25 Price: $2.17
15	3446-009	Plate, Clutch Release Price: $50.71
16	3423-080	NUT, CLUTCH SLEEVE HUB Price: $15.82
17	3423-032	WASHER,20MM Price: $4.36
18	3402-186	BEARING,BALL(25X42X9) Price: $52.95
19	3446-334	GUIDE, CL RELEASE ROLLER Price: $67.95
20	3446-335	ROLLER ASSY, CLUTCH RELEASE Price: $87.95
21	3423-361	BOLT,CLUTCH RLSE.ADJ.NO.1 Price: $6.69
22	3423-360	WASHER,8X20X1 Price: $3.46
23	3423-359	NUT,8MM Price: $1.59
24	3423-083	BOLT, CLUTCH RELEASE ADJ NO.2 Price: $4.59
25	3423-027	WASHER,6.5X16X1.2 Price: $2.17
26	3008-014	Nut, Clutch Release - No. 2 Price: $2.24
27	3446-333	ARM, CLUTCH RELEASE Price: $128.95
28	3423-545	WASHER, CLUTCH RLSE ARM Price: $3.46
