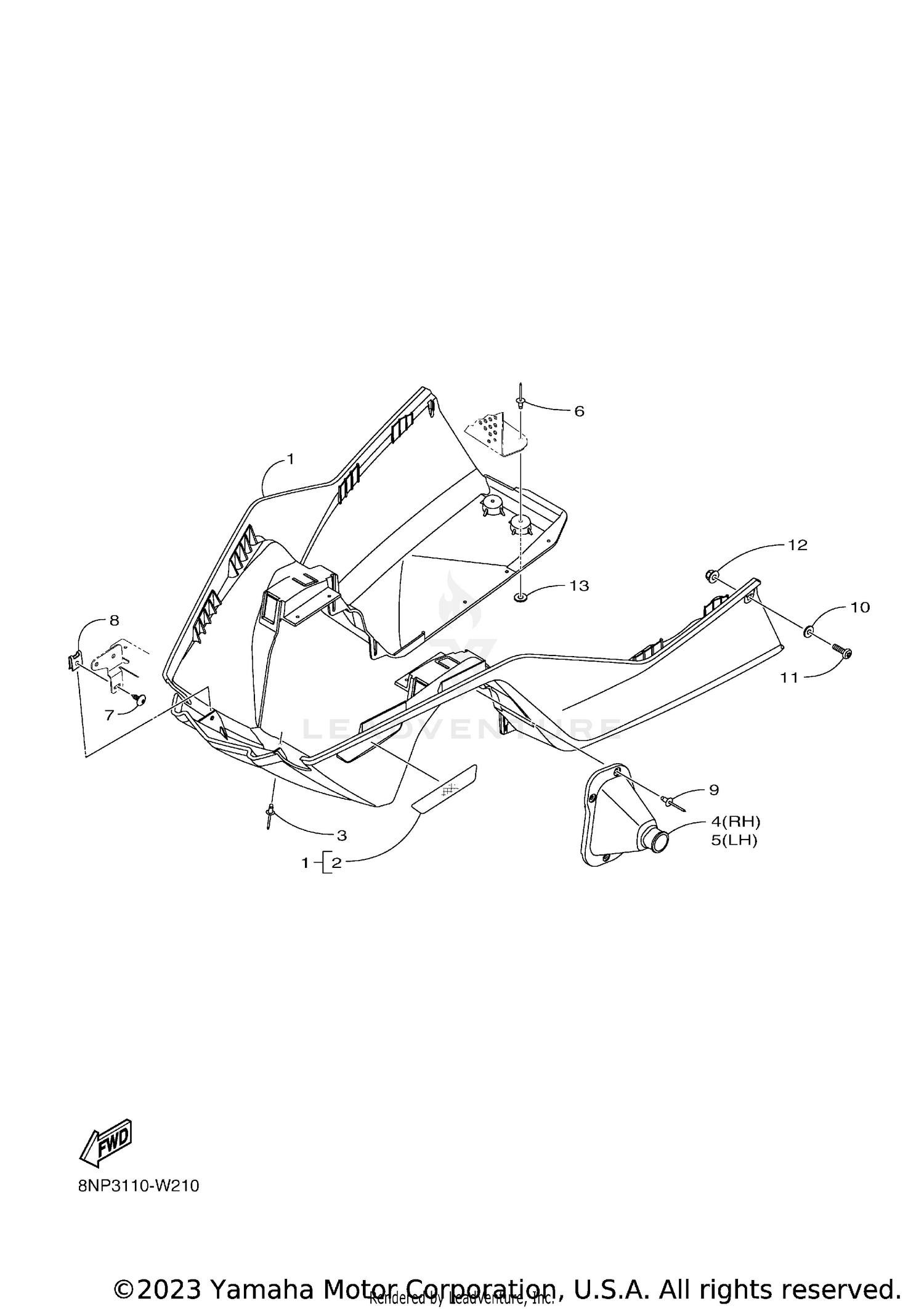

PANEL BODY
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 8NP-F1914-00-00 | PANEL, SUB FRAME 3 Price: $185.99 |
| 2 | 8MY-H5133-00-00 | TAPE, REFLECTOR Price: $23.99 |
| 6 | 8JM-RA502-00-00 | RIVET, BLIND 3 This part replaces 8JP-RA533-00-00. Price: $2.50 |
| 7 | 8KC-RA290-00-00 | SCREW Price: $2.25 |
| 8 | 8JP-RA352-00-00 | NUT, CLIP 10 Price: $1.85 |
| 9 | 8JM-RA503-00-00 | RIVET, BLIND 4 Price: $0.45 |
| 10 | 8ML-RA411-00-00 | WASHER, PLAIN 0.194 Price: $2.10 |
| 11 | 8JP-RA247-00-00 | SCREW, M5X0.8X35 Price: $1.35 |
| 12 | 8JP-RA363-00-00 | NUT, FLANGE LOCKING M5X0.8 Price: $1.35 |
