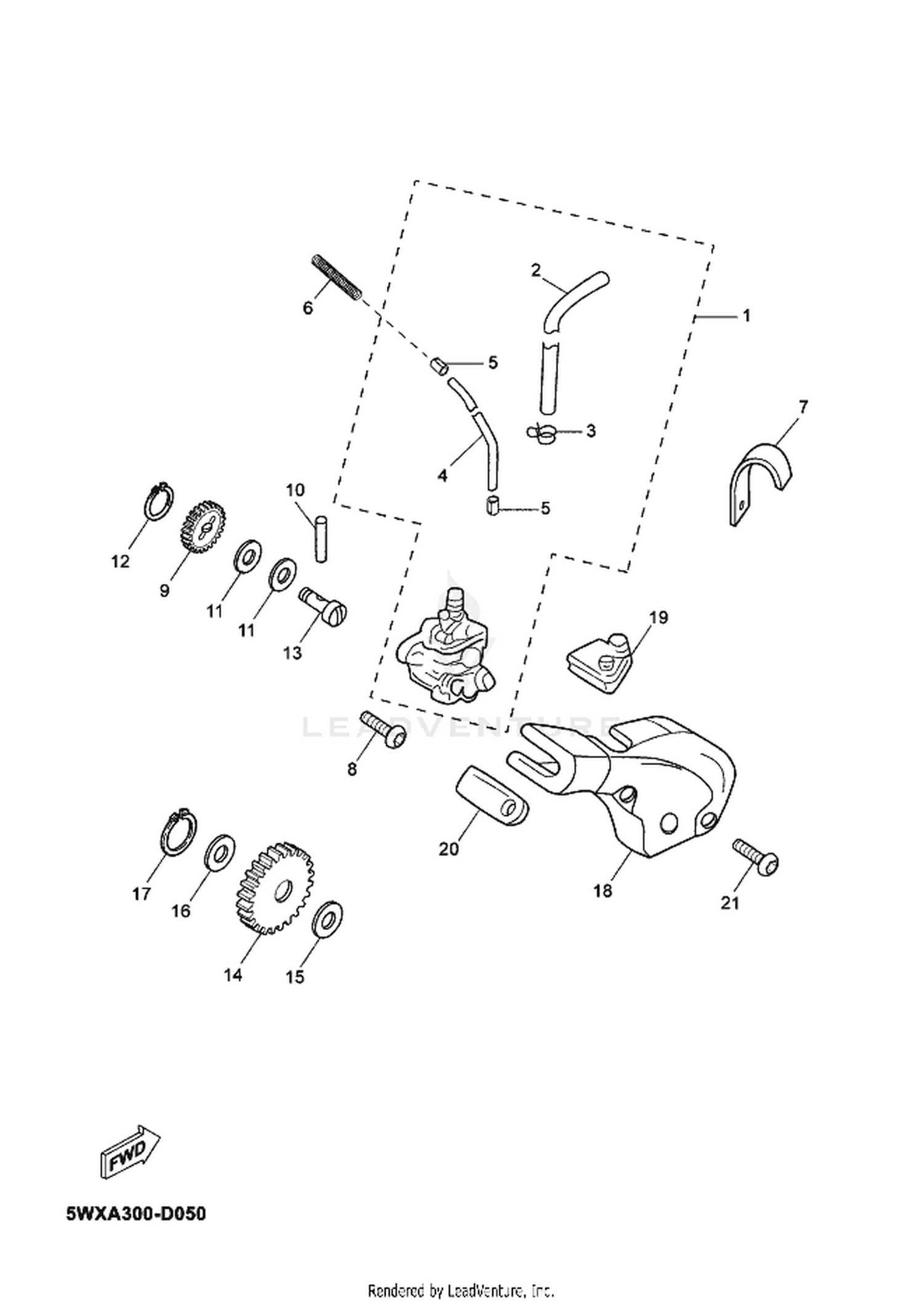

| Ref | Part Number | Description |
|---|
| 1 |
5WX-E3100-01 |
OIL PUMP ASSY Price: Call Us |
| 5 |
90468-02X00 |
CLIP Price: Call Us |
| 6 |
90501-05X00 |
SPRING, COMPRESSION Price: Call Us |
| 7 |
90465-08028 |
CLAMP Price: Call Us |
| 8 |
9131N-05016 |
BOLT Price: Call Us |
| 9 |
4YV-E3178-00 |
GEAR, PUMP DRIVE Price: Call Us |
| 10 |
93603-22X00 |
PIN, DOWEL Price: Call Us |
| 11 |
90201-088L3 |
WASHER, PLATE Price: Call Us |
| 12 |
93440-08130 |
CIRCLIP Price: Call Us |
| 13 |
4YV-E3226-00 |
SHAFT, DRIVE GEAR Price: Call Us |
| 14 |
4YV-E3179-00 |
GEAR, IDLE Price: Call Us |
| 15 |
90201-088L3 |
WASHER, PLATE Price: Call Us |
| 16 |
90201-08X10 |
WASHER, PLATE Price: Call Us |
| 17 |
93440-08130 |
CIRCLIP Price: Call Us |
| 18 |
5WX-E5416-00 |
COVER, OIL PUMP Price: Call Us |
| 19 |
5WX-E3174-00 |
HOLDER, OIL PIPE Price: Call Us |
| 20 |
5WX-E5379-00 |
SEAL, CRANKCASE Price: Call Us |
