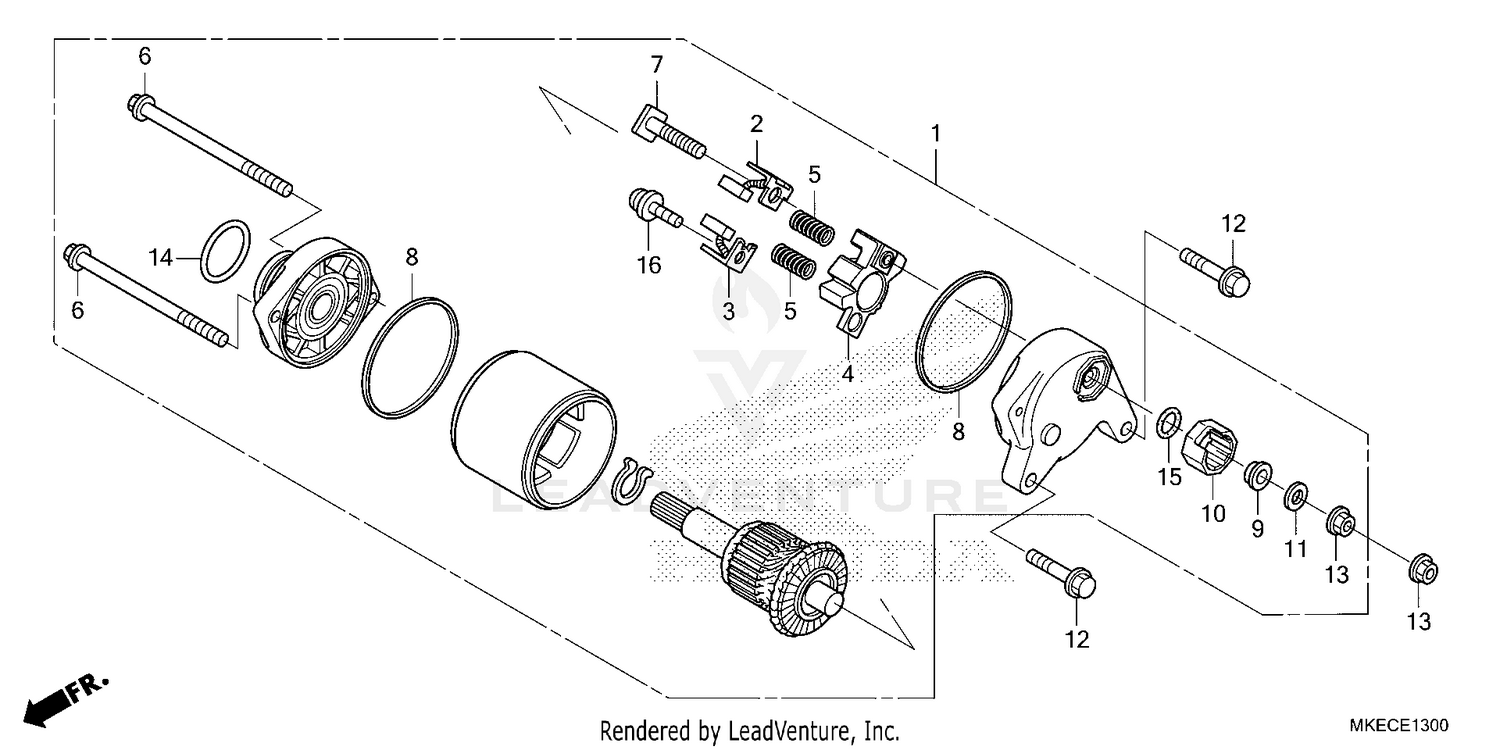

STARTING MOTOR
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31200-MKE-A71 | STARTER MOTOR ASSY. Price: $496.18 |
| 2 | 31201-KPC-D51 | BRUSH SET A, CARBON Price: $10.05 |
| 3 | 31202-KPC-D51 | BRUSH SET B, CARBON Price: $11.69 |
| 4 | 31203-KPC-D51 | HOLDER, BRUSH Price: $9.58 |
| 5 | 31204-MEW-921 | SPRING, CARBON BRUSH (Honda Code 8476798) Price: $15.30 |
| 6 | 31205-KPC-D51 | BOLT SET Price: $5.29 |
| 7 | 31206-MEW-921 | BOLT, TERMINAL Price: $3.35 |
| 8 | 31207-HP5-601 | RING Price: $2.45 |
| 9 | 31208-MEW-921 | INSULATOR (Honda Code 8476822) Price: $8.75 |
| 10 | 31209-MEW-921 | STOPPER, TERMINAL (Honda Code 8476830) Price: $12.98 |
| 11 | 31210-MEW-921 | WASHER Price: $2.07 |
| 12 | 90020-GHB-690 | BOLT, FLANGE (6X28) Price: $2.65 |
| 13 | 90071-MB0-000 | NUT-WASHER (6MM) Price: $2.36 |
| 14 | 91312-MG7-003 | O-RING (24.4X3.1) This part replaces 91309-425-003. Price: $7.98 |
| 15 | 91320-MB0-000 | O-RING (Honda Code 1292184) Price: $2.76 |
