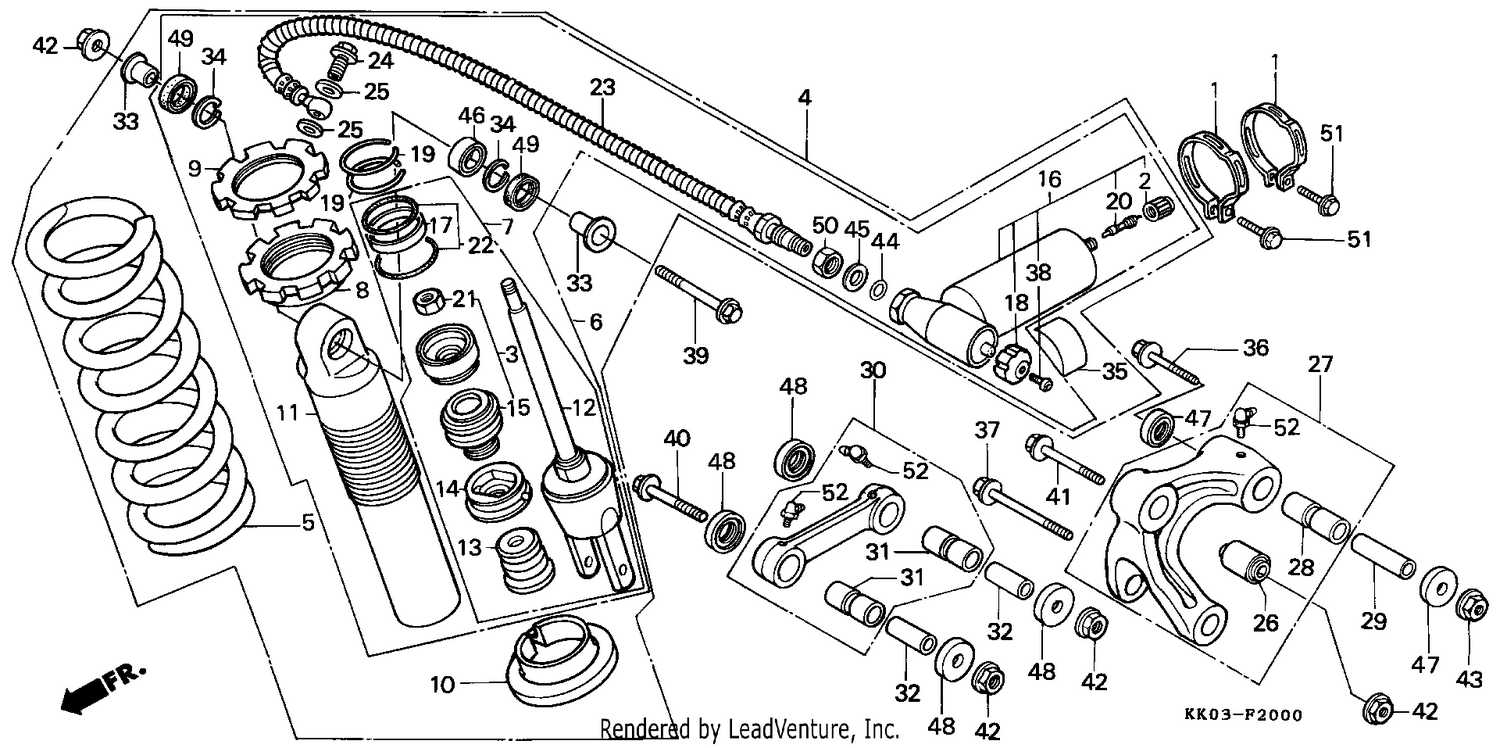

| Ref | Part Number | Description |
|---|
| 1 |
50252KK0000 |
BAND, SUB TANK Price: Call Us |
| 2 |
51453KK0004 |
CAP, AIR VALVE Price: Call Us |
| 3 |
524A2KA3731 |
CASE & NUT SET, ROD GUIDE Price: Call Us |
| 4 |
52400KK0004 |
CUSHION ASSY., RR. Price: Call Us |
| 4 |
52400KK0014 |
CUSHION ASSY., RR. Price: Call Us |
| 5 |
52401KK0004 |
SPRING, RR. CUSHION Price: Call Us |
| 6 |
52410KK0004 |
DAMPER COMP., RR. Price: Call Us |
| 6 |
52410KK0014 |
DAMPER COMP., RR. Price: Call Us |
| 7 |
52421KK0004 |
ROD COMP., PISTON Price: Call Us |
| 8 |
52422KA3731 |
SEAT, SPRING UPPER (KAYABA) Price: Call Us |
| 9 |
52423KA3731 |
NUT, ADJUSTER Price: Call Us |
| 10 |
52424KA3731 |
STOPPER, SPRING SEAT Price: Call Us |
| 11 |
52425KK0004 |
CASE, RR. DAMPER Price: Call Us |
| 12 |
52426KK0004 |
ROD COMP. Price: Call Us |
| 13 |
52427KK0004 |
RUBBER, BUMPER Price: Call Us |
| 14 |
52428KA3731 |
CAP, CASE Price: Call Us |
| 15 |
52429KA3731 |
CASE COMP., ROD GUIDE (KAYABA) Price: Call Us |
| 16 |
52430KK0004 |
SUB TANK ASSY. Price: Call Us |
| 16 |
52430KK0014 |
SUB TANK ASSY. Price: Call Us |
| 17 |
52431KA3731 |
RING, PISTON (KAYABA) Price: Call Us |
| 18 |
52433KK0004 |
DIAL, SUB TANK Price: Call Us |
| 19 |
52435KA3731 |
RING, SNAP Price: Call Us |
| 20 |
52437KA3731 |
CORE, VALVE Price: Call Us |
| 21 |
52438KA3731 |
NUT, HEX., 12MM Price: Call Us |
| 22 |
52439KA3731 |
O-RING SET (KAYABA) Price: Call Us |
| 23 |
52440KK0004 |
HOSE COMP., JOINT Price: Call Us |
| 24 |
52441KA3731 |
BOLT, OIL Price: Call Us |
| 25 |
52442KA3731 |
WASHER, OIL BOLT Price: Call Us |
| 26 |
52451MA0000 |
BUSH, DAMPER LOWER Price: Call Us |
| 27 |
52460KK0000 |
ARM ASSY., CUSHION Price: Call Us |
| 28 |
52462KF0003 |
BUSH, CUSHION ARM Price: Call Us |
| 29 |
52463KF0000 |
COLLAR, CUSHION ARM PIVOT Price: Call Us |
| 30 |
52470KF0000 |
ROD ASSY., CUSHION CONNECTING Price: Call Us |
| 31 |
52472MA0013 |
BUSH, CUSHION CONNECTING ROD Price: Call Us |
| 32 |
52473MA0010 |
COLLAR, CONNECTING ROD PIVOT Price: Call Us |
| 33 |
52486KA3731 |
COLLAR, DAMPER UPPER Price: Call Us |
| 34 |
52487KA3731 |
RING, STOPPER Price: Call Us |
| 35 |
87516KA3741 |
LABEL, RR. DAMPER CAUTION Price: Call Us |
| 36 |
90128KF0000 |
BOLT, FLANGE, 12X90 Price: Call Us |
| 37 |
90129KF0000 |
BOLT, FLANGE, 10X77 Price: Call Us |
| 38 |
90137KK0004 |
SCREW, PAN, 3X6 Price: Call Us |
| 39 |
90150KK0000 |
BOLT, FLANGE, 10X83 Price: Call Us |
| 40 |
90151KF0000 |
BOLT, FLANGE, 10X69 Price: Call Us |
| 41 |
90153KK0000 |
BOLT, FLANGE, 10X58 Price: Call Us |
| 42 |
90304GE8003 |
NUT, U, 10MM Price: Call Us |
| 43 |
90306KF0003 |
NUT, FLANGE, 12MM Price: Call Us |
| 44 |
90351KK0004 |
O-RING, 1.9X9.8 Price: Call Us |
| 45 |
90501KK0004 |
WASHER, 10MM Price: Call Us |
| 46 |
91077KA3731 |
BEARING, SPHERICAL, 14MM Price: Call Us |
| 47 |
91261KA3711 |
SEAL, CUSHION ARM PIVOT (NOK) Price: Call Us |
| 47 |
91261KA3712 |
SEAL, CUSHION ARM PIVOT (ARAI) Price: Call Us |
| 48 |
91262KA3711 |
SEAL, CUSHION CONNECTING ROD PIVOT (NOK) Price: Call Us |
| 48 |
91262KA3712 |
SEAL, CUSHION CONNECTING ROD PIVOT (ARAI) Price: Call Us |
| 49 |
91351KA3731 |
DUST SEAL, RR. CUSHION UPPER Price: Call Us |
| 50 |
94002120000S |
NUT, HEX., 12MM Price: Call Us |
| 51 |
960000602200 |
BOLT, FLANGE, 6X22 Price: Call Us |
