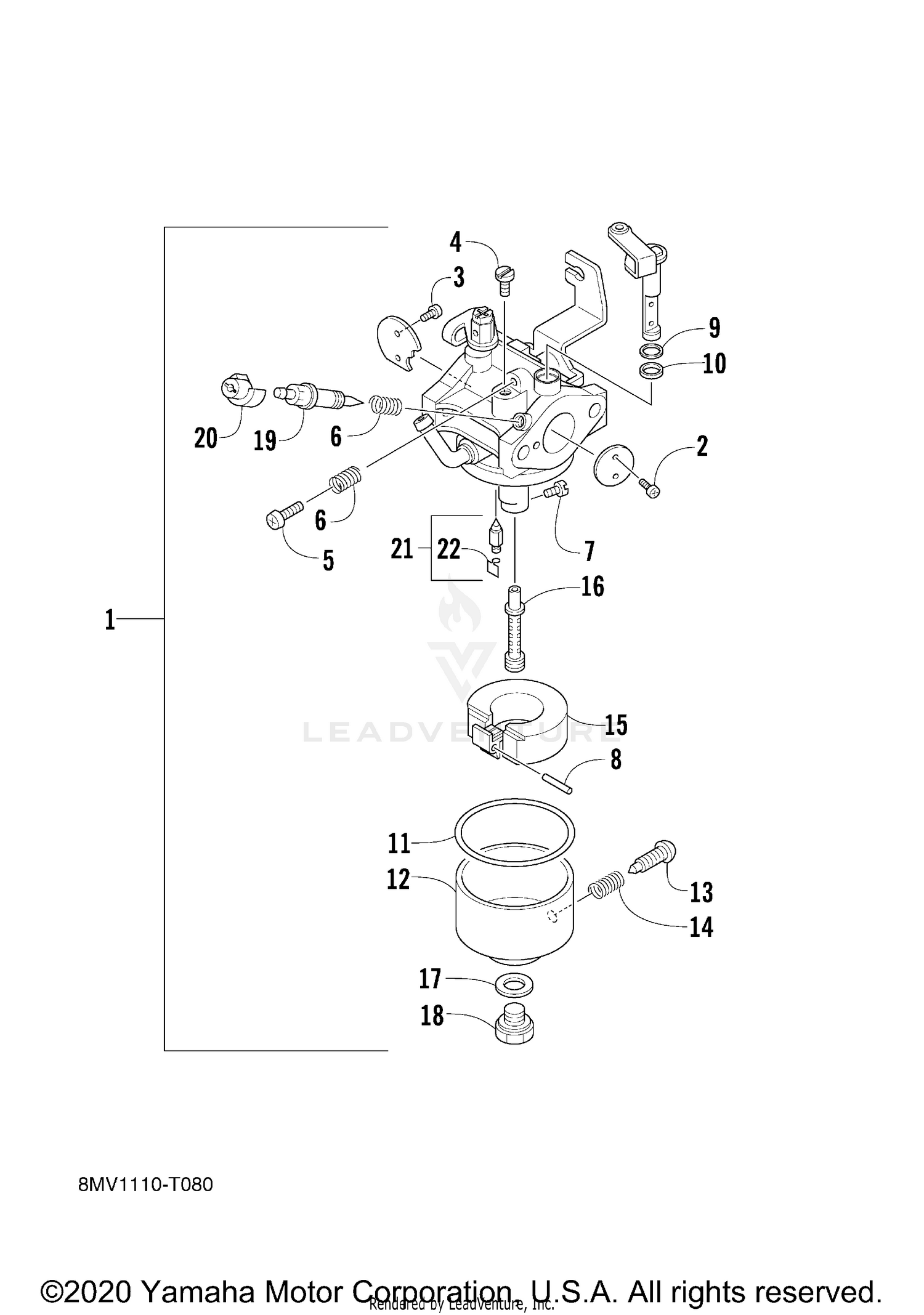

| Ref | Part Number | Description |
|---|
| 1 |
7CL-E4101-42-00 |
CARBURETOR ASSY 1 Price: $260.99 |
| 2 |
7RH-14216-00-00 |
SCREW Price: $2.97 |
| 3 |
Y06-01816-00-00 |
SCREW, ROD This part replaces 7RH-14486-00-00. Price: $2.45 |
| 4 |
620-14142-37-A0 |
JET, PILOT (#37.5) Price: $7.99 |
| 5 |
1WG-14922-00-00 |
SCREW, THROTTLE Price: $4.20 |
| 6 |
73A-14212-00-00 |
SPRING, PILOT ADJUSTING Price: $3.30 |
| 7 |
1HX-1423A-66-A0 |
JET, MAIN (#77.5) Price: $13.49 |
| 8 |
22F-14186-00-00 |
PIN, FLOAT Price: $3.10 |
| 9 |
22F-14953-00-00 |
WASHER Price: $0.60 |
| 10 |
6K8-14597-10-00 |
WASHER Price: $3.75 |
| 11 |
7CN-E4997-00-00 |
SEAL Price: $28.99 |
| 12 |
7EG-14181-00-00 |
BODY, FLOAT CHAMBER 1 Price: $95.99 |
| 13 |
7E1-14191-00-00 |
PLUG, DRAIN Price: $6.49 |
| 14 |
73A-14212-00-00 |
SPRING, PILOT ADJUSTING Price: $3.30 |
| 15 |
Y06-01431-00-00 |
Float This part replaces 7LG-14185-00-00. Price: $26.99 |
| 16 |
7NM-1495F-2B-00 |
NOZZLE, MAIN Price: $22.99 |
| 17 |
7G0-14227-00-00 |
WASHER Price: $1.96 |
| 18 |
7NJ-14162-00-00 |
BOLT, HOLDING Price: $6.99 |
| 19 |
7NJ-14211-00-00 |
SCREW, PILOT ADJUSTING Price: $7.99 |
| 20 |
Y06-01437-00-00 |
CAP This part replaces 7LV-14118-00-00. Price: $6.99 |
| 21 |
7LG-14150-11-00 |
NEEDLE ASSY Price: $26.99 |
