| Ref | Part Number | Description |
|---|
| 1 |
30510-MKC-A01 |
COIL ASSY., PLUG TOP Price: $138.96 |
| 2 |
32100-MLJ-M61 |

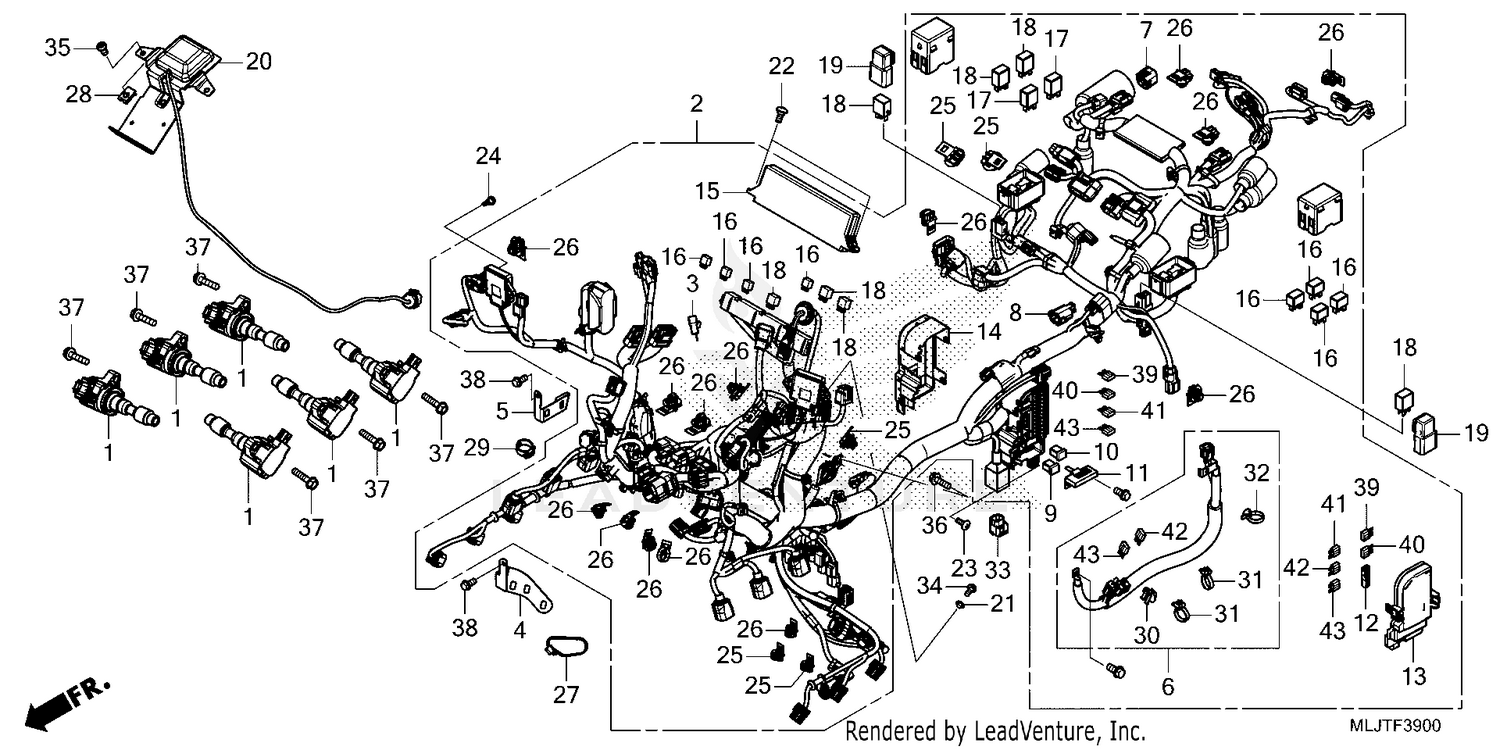

WIRE HARNESS Price: $2,467.02 |
| 3 |
32146-S84-003 |
CONNECTOR, DIODE (2P) (3A) Price: $18.03 |
| 4 |
32153-MKC-A00 |
STAY, CONNECTOR B Price: $12.55 |
| 5 |
32158-MKC-A00 |
STAY, CONNECTOR C Price: $8.35 |
| 6 |
32401-MLJ-A30 |
CABLE, START BAT Price: $97.05 |
| 7 |
32605-GEV-761 |
CAP, DUMMY (WPC 4P 090 M) (NATURAL) Price: $9.51 |
| 9 |
38211-MCA-A61 |
FUSE, BLOCK (60A) (LOW-PROFILE) Price: $2.55 |
| 10 |
38211-SNA-A21 |
FUSE, BLOCK (40A) Price: $5.43 |
| 11 |
38231-SFE-J01 |
FUSE A, MULTI BLOCK (120A/40A) Price: $26.72 |
| 12 |
38235-S04-003 |
PULLER, MINI FUSE (SUMITOMO) Price: $1.07 |
| 13 |
38255-MLJ-M60 |
COVER SET (UPPER) Price: $16.76 |
| 14 |
38256-MCA-A61 |
COVER (LOWER) Price: $7.85 |
| 15 |
38282-MKC-A01 |
COVER (UPPER) Price: $21.85 |
| 16 |
38501-MKP-DN1 |
RELAY (MICRO ISO 4P) Price: $5.85 |
| 17 |
38502-MCS-G01 |
RELAY, POWER (MICRO ISO 5P) Price: $12.56 |
| 18 |
38503-MCA-A61 |
RELAY, POWER (MICRO ISO 4P) Price: $17.69 |
| 19 |
38506-MCS-G00 |
SUSPENSION, POWER RELAY Price: $7.02 |
| 20 |
39125-MLJ-M01 |
ANTENNA ASSY., SXM Price: $160.38 |
| 21 |
90007-MA3-770 |
COLLAR (6X5.5) Price: $2.33 |
| 22 |
93903-25380 |
SCREW, TAPPING (5X16) Price: $0.95 |
| 23 |
90109-KBV-000 |
SCREW, TRUSS (5X14) Price: $2.24 |
| 24 |
90300-GB6-920 |
SCREW, SPLASH GUARD Price: $2.55 |
| 25 |
90651-K1N-V61 |
CLIP, CONNECTOR (DARK BLUE) (NOT AVAILABLE) Price: $0.96 |
| 26 |
90651-K2T-V01 |
CLIP, CONNECTOR Price: $1.33 |
| 27 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $3.65 |
| 28 |
90677-KAN-961 |
NUT, CLIP (5MM) Price: $5.11 |
| 29 |
90683-KJ2-003 |
CLIP, WIRE HARNESS Price: $4.47 |
| 30 |
91533-S04-003 |
CLIP, CONNECTOR (NATURAL) Price: $4.08 |
| 31 |
91540-S7S-003 |
CLIP, HARNESS BAND (157.7MM) (BLACK) Price: $6.08 |
| 32 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.15 |
| 33 |
91771-MKK-H11 |
CAP, DUMMY (6P) (RED) Price: $25.67 |
| 34 |
93500-04014-0A |
SCREW, PAN (4X14) Price: $0.87 |
| 35 |
93500-05010-0A |
SCREW, PAN (5X10) Price: $0.95 |
| 36 |
95701-06020-08 |
BOLT, FLANGE (6X20) Price: $0.40 |
| 37 |
95701-06025-08 |
BOLT, FLANGE (6X25) BOLT, FLANGE (6X16) Price: $1.88 |
| 38 |
96001-06012-07 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $1.88 |
| 39 |
98200-40500 |
FUSE, MINI (5A) (Honda Code 5026521) Price: $1.38 |
| 40 |
98200-41000 |
FUSE, MINI (10A) Price: $1.38 |
| 41 |
98200-41500 |
FUSE, MINI (15A) (Honda Code 4853438) Price: $1.27 |
| 42 |
98200-42000 |
FUSE, MINI (20A) Price: $1.27 |
