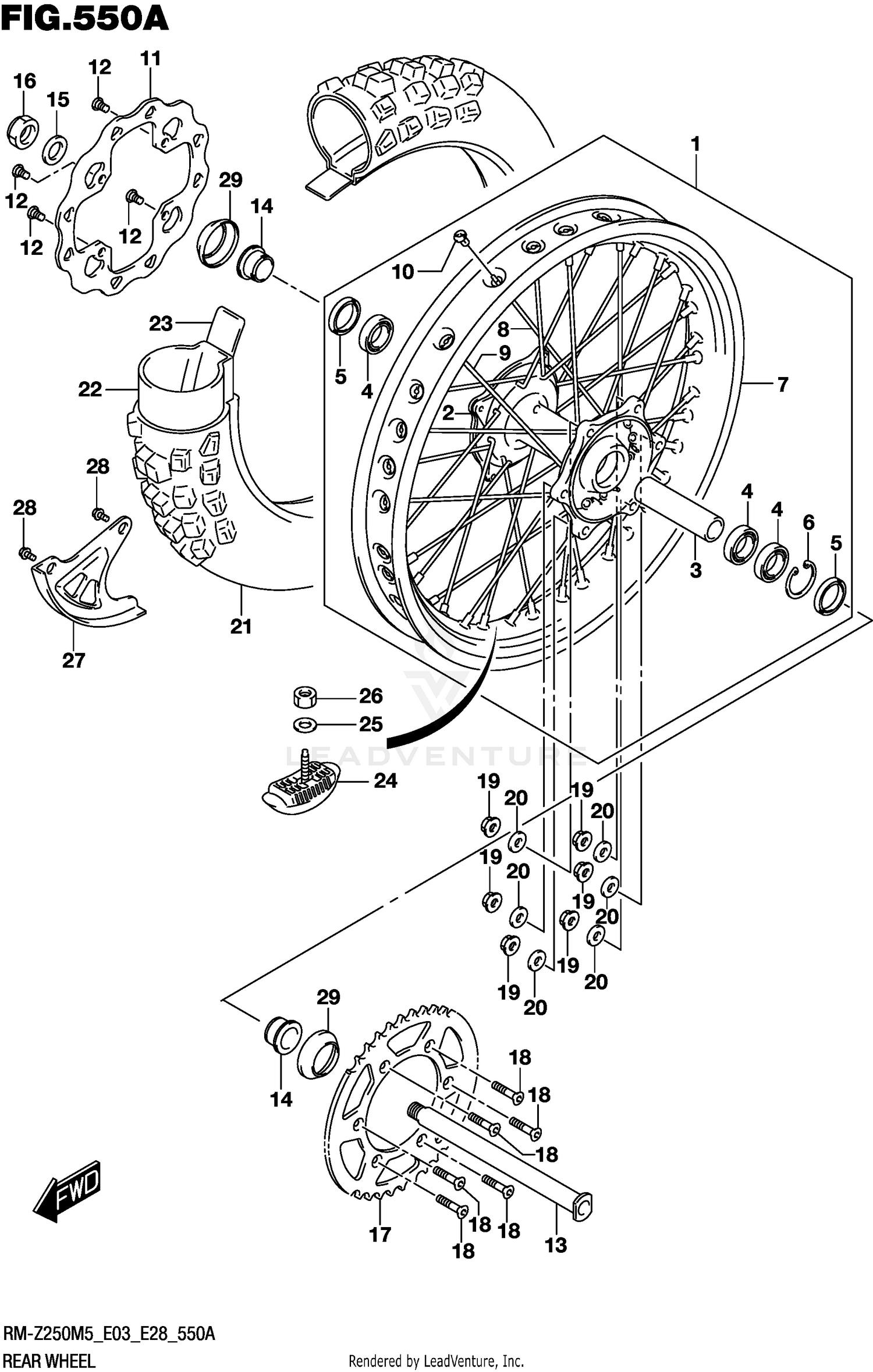

REAR WHEEL
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 64100-46K01 | WHEEL ASSY,REAR Price: $740.81 |
| 11 | 69211-28H10 | DISC,RR BRAKE Price: $225.94 |
| 12 | 09139-08022 | SCREW (8X15) Price: $4.68 |
| 13 | 64711-35G10 | AXLE,RR Price: $126.90 |
| 14 | 64751-28H10 | SPACER,RR AXLE Price: $35.24 |
| 15 | 09160-22081 | WASHER (22X35X2) Price: $3.70 |
| 16 | 64721-13K00 | NUT Price: $15.58 |
| 18 | 09120-08017 | BOLT (8X28) Price: $2.72 |
| 19 | 09159-08133 | NUT Price: $6.74 |
| 20 | 09160-08082 | WASHER (8.5X16X1.2) Price: $1.98 |
| 21 | 65110-46K00 | TIRE,REAR Price: $275.52 |
| 22 | 55200-44611 | TUBE Price: $42.86 |
| 23 | 65261-01B30 | PROTECTOR,WHEEL INNER TUBE Price: $8.86 |
| 24 | 65270-43D00 | STOPPER, BEAD Price: $63.46 |
| 25 | 08322-0108A | WASHER Price: $2.22 |
| 26 | 08310-0008A | NUT Price: $2.25 |
| 27 | 69231-37F20 | COVER,REAR DISC Price: $17.65 |
| 28 | 09116-06197 | BOLT (6X12) Price: $3.20 |
