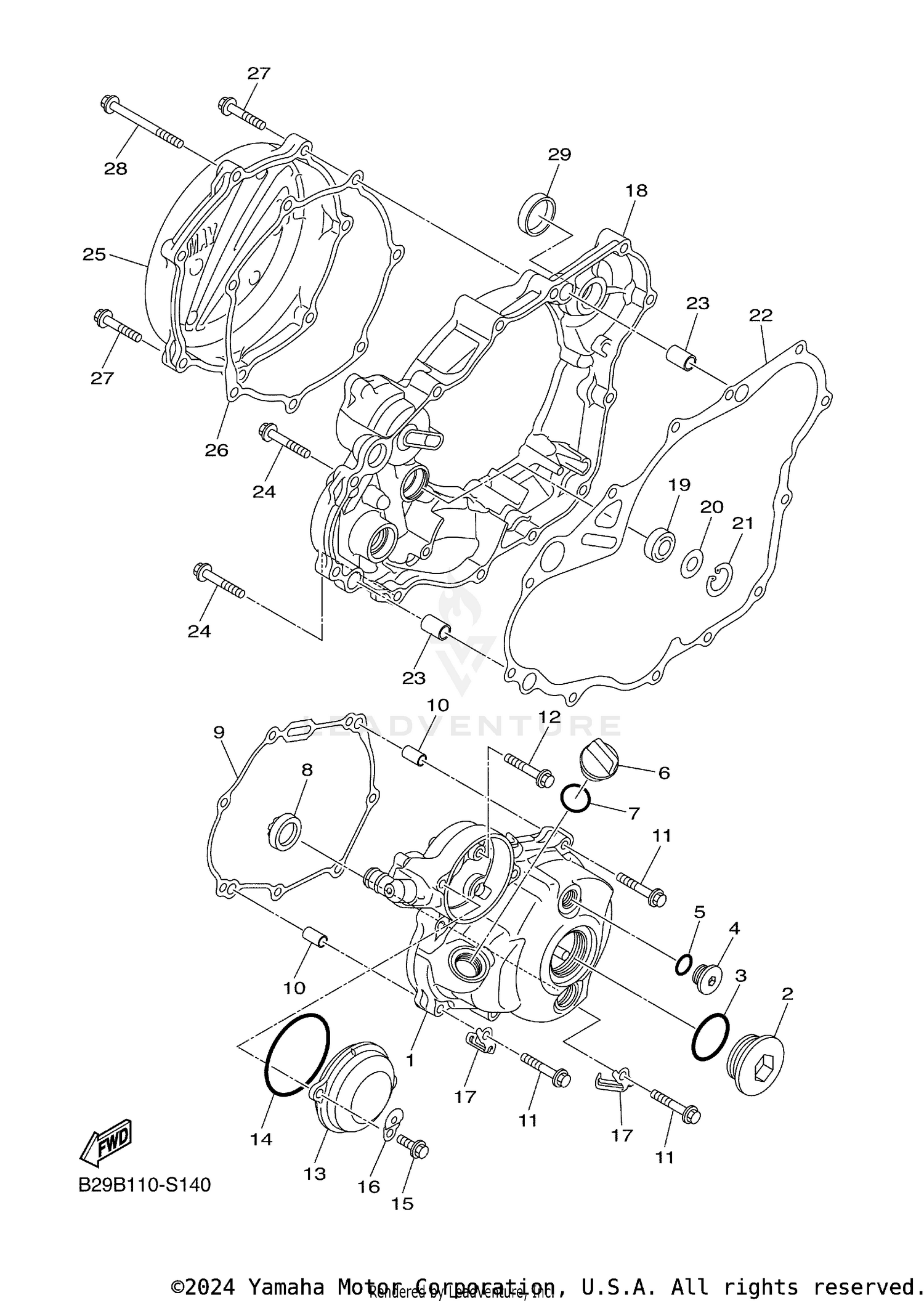

| Ref | Part Number | Description |
|---|
| 1 |
2GB-15411-10-00 |
COVER, CRANKCASE 1 Price: $203.99 |
| 2 |
90340-36007-00 |
PLUG, STRAIGHT SCREW Price: $29.99 |
| 3 |
93210-35804-00 |
O-RING This part replaces 93210-357A3-00. Price: $0.60 |
| 4 |
90340-14021-00 |
PLUG, STRAIGHT SCREW Price: $34.99 |
| 5 |
93210-14369-00 |
O-RING Price: $8.49 |
| 6 |
3Y1-15363-10-00 |
PLUG, OIL Price: $19.99 |
| 7 |
93210-19123-00 |
O-RING Price: $8.99 |
| 8 |
3Y6-15361-00-00 |
GAUGE, LEVEL Price: $35.99 |
| 10 |
91808-16023-00 |
PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
| 11 |
95022-06030-00 |
BOLT, FLANGE Price: $1.80 |
| 12 |
95022-06020-00 |
BOLT, FLANGE Price: $3.90 |
| 13 |
5TJ-1549B-40-00 |
COVER ASSY 2 Price: $72.99 |
| 14 |
93210-58346-00 |
O-RING Price: $11.49 |
| 15 |
95022-06014-00 |
BOLT, FLANGE Price: $3.40 |
| 16 |
2GB-15199-00-00 |
BRACKET Price: $4.75 |
| 17 |
90465-08062-00 |
CLAMP Price: $4.65 |
| 18 |
1SM-15431-00-00 |
COVER, CRANKCASE 3 Price: $143.99 |
| 19 |
93101-14164-00 |
OIL SEAL Price: $12.49 |
| 20 |
90201-15701-00 |
WASHER, PLATE (T=1.0) Price: $9.49 |
| 21 |
99009-22500-00 |
CIRCLIP Price: $9.49 |
| 23 |
99530-12016-00 |
PIN, DOWEL Price: $4.89 |
| 24 |
90105-06102-00 |
BOLT, FLANGE Price: $4.30 |
| 25 |
1SM-15415-10-00 |
COVER, 1 Price: $262.99 |
| 27 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 28 |
95022-06060-00 |
BOLT, FLANGE Price: $9.49 |
