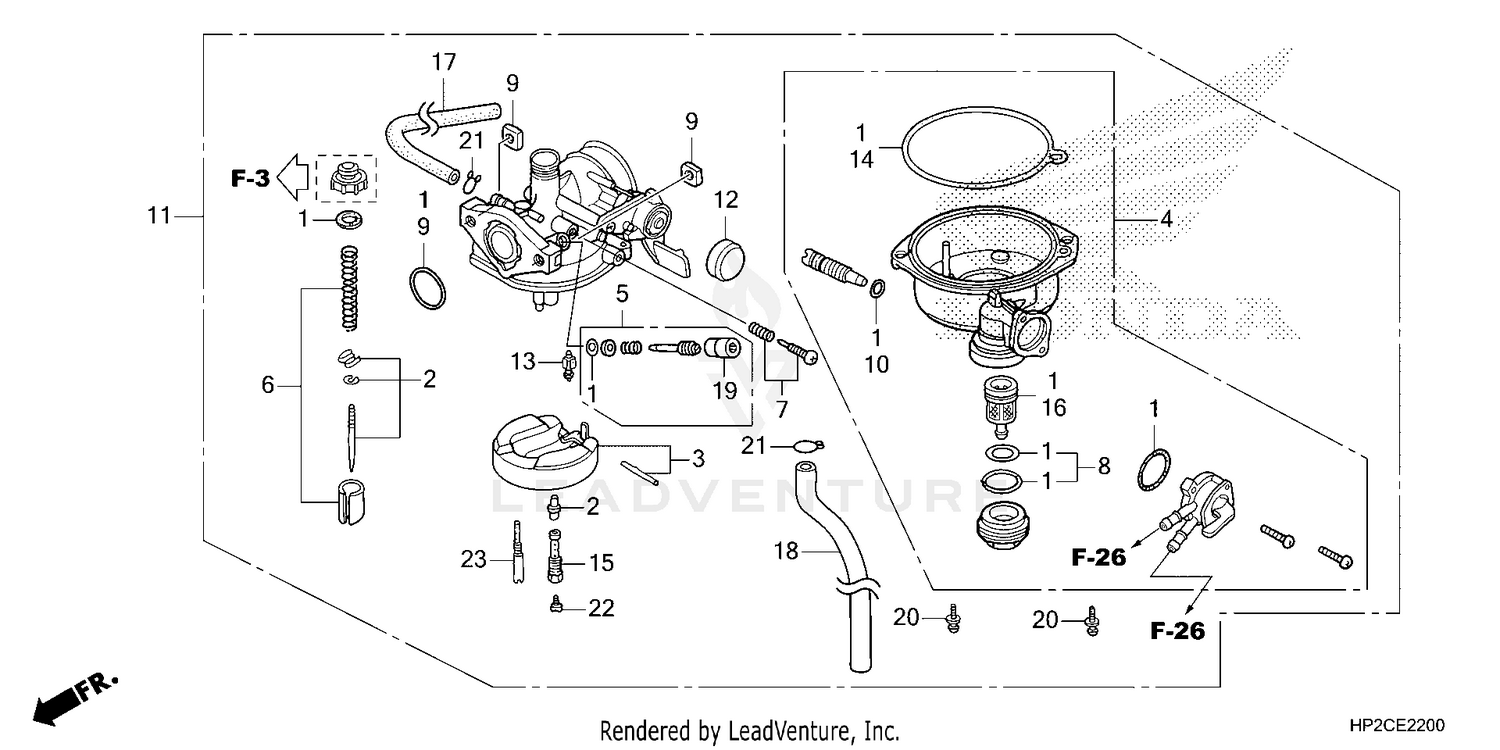

| Ref | Part Number | Description |
|---|
| 1 |
16010-HP2-A22 |
GASKET SET Price: $26.00 |
| 2 |
16012-HP2-671 |
NEEDLE SET, JET Price: $25.31 |
| 3 |
16013-HP2-671 |
FLOAT SET Price: $36.75 |
| 4 |
16015-HP2-672 |
CHAMBER SET, FLOAT Price: $118.42 |
| 5 |
16016-HP2-A21 |
SCREW SET Price: $15.24 |
| 6 |
16022-HF7-A11 |
VALVE SET, THROTTLE Price: $37.13 |
| 7 |
16028-GC8-004 |
SCREW SET B Price: $19.82 |
| 8 |
16040-KEV-900 |
GASKET SET Price: $10.33 |
| 9 |
16041-GB1-910 |
NUT SET, SQUARE Price: $6.95 |
| 10 |
16075-GHB-640 |
O-RING (1.3X4.3) Price: $3.33 |
| 11 |
16100-HP2-A22 |
CARBURETOR ASSY. (PB5FD B) Price: $228.18 |
| 12 |
16148-HP2-671 |
CAP, CHOKE DUST Price: $3.53 |
| 13 |
16155-GZ5-000 |
VALVE, FLOAT Price: $40.96 |
| 14 |
16163-GFP-901 |
GASKET, FLOAT CHAMBER Price: $11.76 |
| 15 |
16165-HF7-000 |
HOLDER, NEEDLE JET Price: $47.45 |
| 16 |
16176-HP2-671 |
SCREEN, FUEL STRAINER Price: $7.96 |
| 17 |
16198-GAN-730 |
TUBE Price: $14.04 |
| 18 |
16198-HF7-000 |
TUBE, OVERFLOW Price: $10.18 |
| 19 |
16312-KYK-911 |
CAP, ADJUSTING SCREW Price: $3.09 |
| 20 |
93892-04014-08 |
SCREW-WASHER (4X14) Price: $1.15 |
| 21 |
95002-02650 |
CLIP, TUBE (B6.5) Price: $1.55 |
| 22 |
99101-HP2-0820 |
JET, MAIN (#82) Price: $9.89 |
