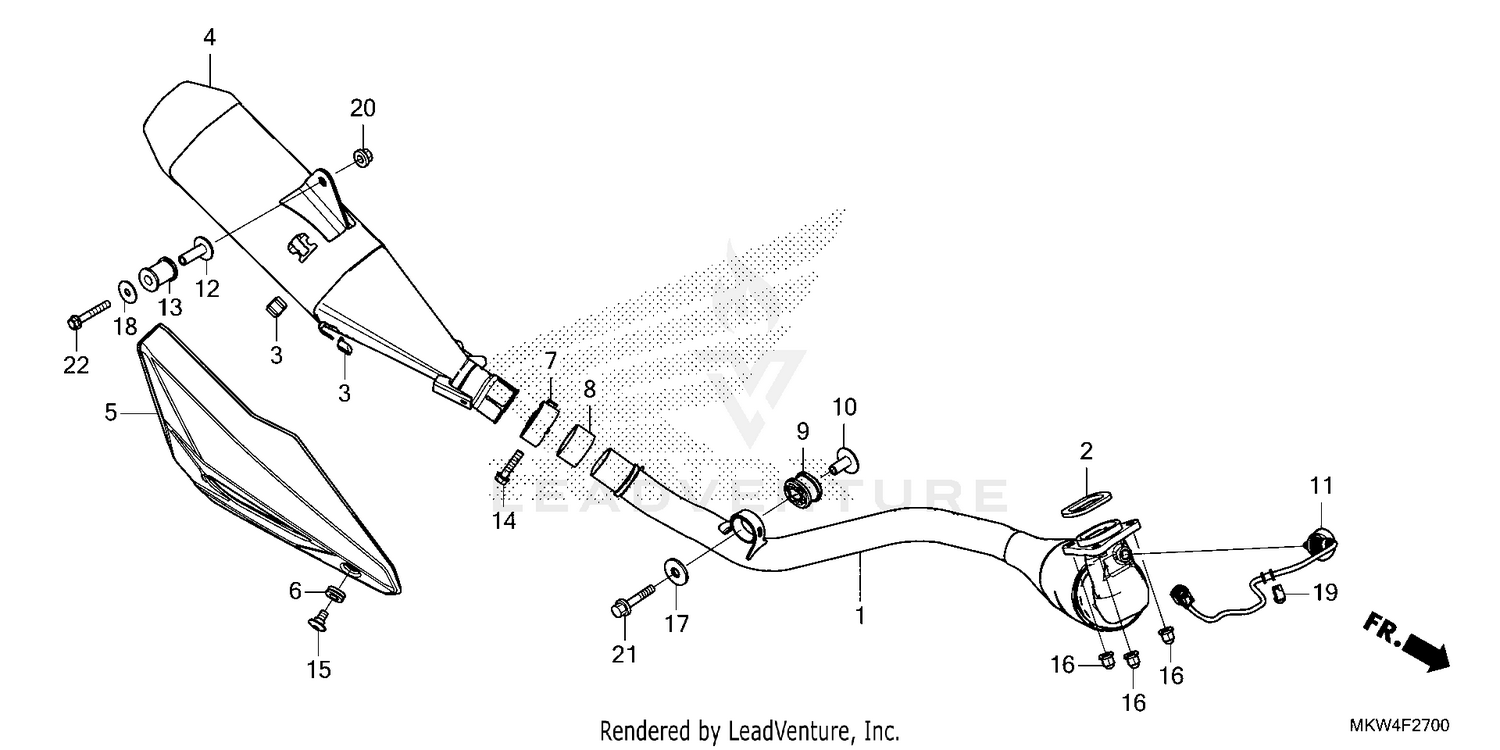

| Ref | Part Number | Description |
|---|
| 1 |
18150-MKW-D01 |
PIPE, EX. Price: $1,314.11 |
| 2 |
18291-MGS-D31 |
GASKET, EX. PIPE Price: $12.93 |
| 3 |
18293-MCA-A20 |
RUBBER, PROTECTOR GASKET Price: $2.35 |
| 4 |
18310-MKW-D01 |
MUFFLER Price: $555.35 |
| 5 |
18342-MKA-D81 |
COVER, MUFFLER Price: $82.49 |
| 6 |
18345-MBT-610 |
RUBBER, PROTECTOR MOUNTING Price: $2.49 |
| 7 |
18373-413-000 |
BAND, R. FR. MUFFLER (L. RR.) (L.) Price: $44.47 |
| 8 |
18392-MK4-000 |
GASKET, MUFFLER Price: $16.55 |
| 9 |
18422-MFJ-D10 |
RUBBER, EX. PIPE MOUNTING Price: $21.11 |
| 10 |
18423-MGS-D30 |
COLLAR, EX. PIPE MOUNTING Price: $8.78 |
| 11 |
36533-MKW-D01 |
SENSOR, AIR FUEL RATIO Price: $268.07 |
| 12 |
50607-KK6-000 |
COLLAR, MOUNTING RUBBER Price: $11.07 |
| 13 |
50608-KV0-000 |
RUBBER, MUFFLER MOUNTING Price: $7.82 |
| 14 |
90103-KCM-620 |
BOLT, FLANGE (8X35) Price: $1.80 |
| 15 |
90113-GFP-B00 |
SCREW, PAN (6X12) Price: $4.49 |
| 16 |
90304-ME1-670 |
NUT, CAP (8MM) Price: $7.47 |
| 17 |
90501-819-000 |
WASHER (8MM) Price: $1.88 |
| 18 |
90534-MV4-000 |
WASHER (8.5X28) Price: $3.29 |
| 19 |
90683-MGC-920 |
CLIP, HARNESS Price: $3.56 |
| 20 |
94050-08080 |
NUT, FLANGE (8MM) Price: $0.98 |
| 21 |
96300-08045-04 |
BOLT, FLANGE (8X45) Price: $1.73 |
