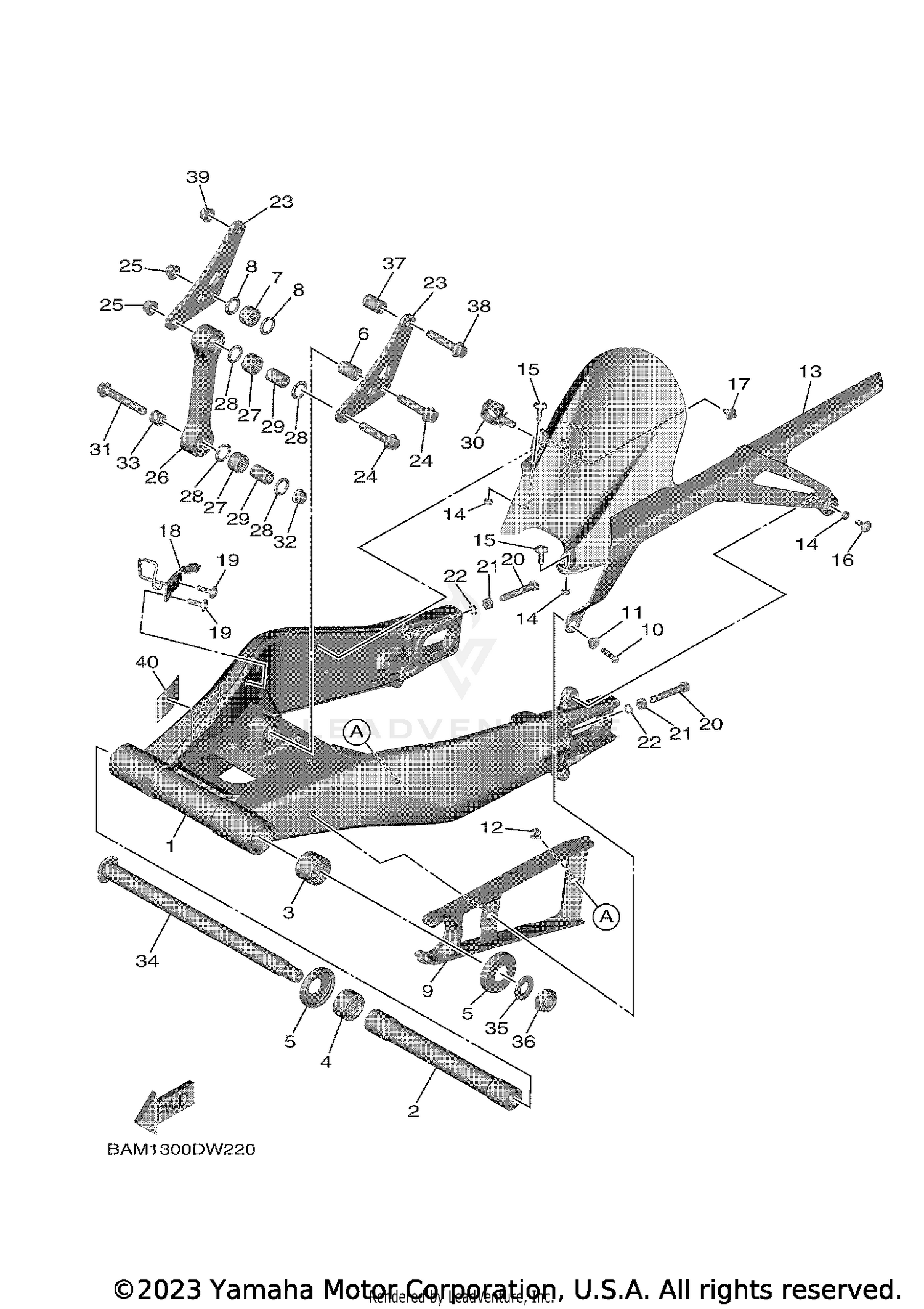

| Ref | Part Number | Description |
|---|
| 1 |
BAM-22110-10-00 |
REAR ARM COMP. Price: $1,285.99 |
| 2 |
90387-22037-00 |
COLLAR Price: $82.99 |
| 3 |
93317-330A0-00 |
BEARING Price: $38.99 |
| 4 |
93317-330A1-00 |
BEARING Price: $35.99 |
| 5 |
5VY-22128-00-00 |
COVER, THRUST 1 Price: $15.49 |
| 6 |
90387-1012A-00 |
COLLAR Price: $23.99 |
| 7 |
93315-31758-00 |
BEARING Price: $44.99 |
| 8 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 9 |
B7N-22151-00-00 |
SEAL, GUARD Price: $25.99 |
| 10 |
92012-06025-00 |
BOLT, BUTTON HEAD Price: $3.40 |
| 11 |
90387-062X0-00 |
COLLAR Price: $22.99 |
| 12 |
90269-07007-00 |
RIVET Price: $4.40 |
| 13 |
B7N-21650-01-00 |
REAR FENDER COMP. Price: $41.99 |
| 14 |
90387-06106-00 |
COLLAR This part replaces 90387-06372-00. Price: $8.49 |
| 15 |
90149-06104-00 |
SCREW Price: $4.95 |
| 16 |
90111-06151-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.45 |
| 17 |
90269-07007-00 |
RIVET Price: $4.40 |
| 18 |
B7N-22538-00-00 |
STAY Price: $25.99 |
| 19 |
90149-06104-00 |
SCREW Price: $4.95 |
| 20 |
90101-08013-00 |
BOLT Price: $3.60 |
| 21 |
95302-08600-00 |
NUT, HEXAGON Price: $10.49 |
| 22 |
90201-08052-00 |
WASHER, PLATE Price: $2.55 |
| 23 |
B7N-2217A-00-00 |
ARM, RELAY Price: $35.99 |
| 24 |
90105-10030-00 |
BOLT, FLANGE Price: $9.49 |
| 25 |
95607-10200-00 |
NUT, U FLANGE Price: $4.15 |
| 26 |
B7N-2217M-00-00 |
ARM 1 Price: $51.99 |
| 27 |
93315-31758-00 |
BEARING Price: $44.99 |
| 28 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 29 |
90387-1012A-00 |
COLLAR Price: $23.99 |
| 30 |
90464-20009-00 |
CLAMP Price: $2.25 |
| 31 |
90105-10211-00 |
BOLT, FLANGE Price: $9.49 |
| 32 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 33 |
90387-10043-00 |
COLLAR Price: $31.99 |
| 34 |
B7N-22141-00-00 |
SHAFT, PIVOT Price: $75.99 |
| 35 |
90201-18013-00 |
WASHER, PLATE Price: $8.49 |
| 36 |
90185-18009-00 |
NUT, SELF-LOCKING Price: $20.99 |
| 37 |
90387-10125-00 |
COLLAR Price: $9.49 |
| 38 |
90105-10030-00 |
BOLT, FLANGE Price: $9.49 |
| 39 |
95607-10200-00 |
NUT, U FLANGE Price: $4.15 |
