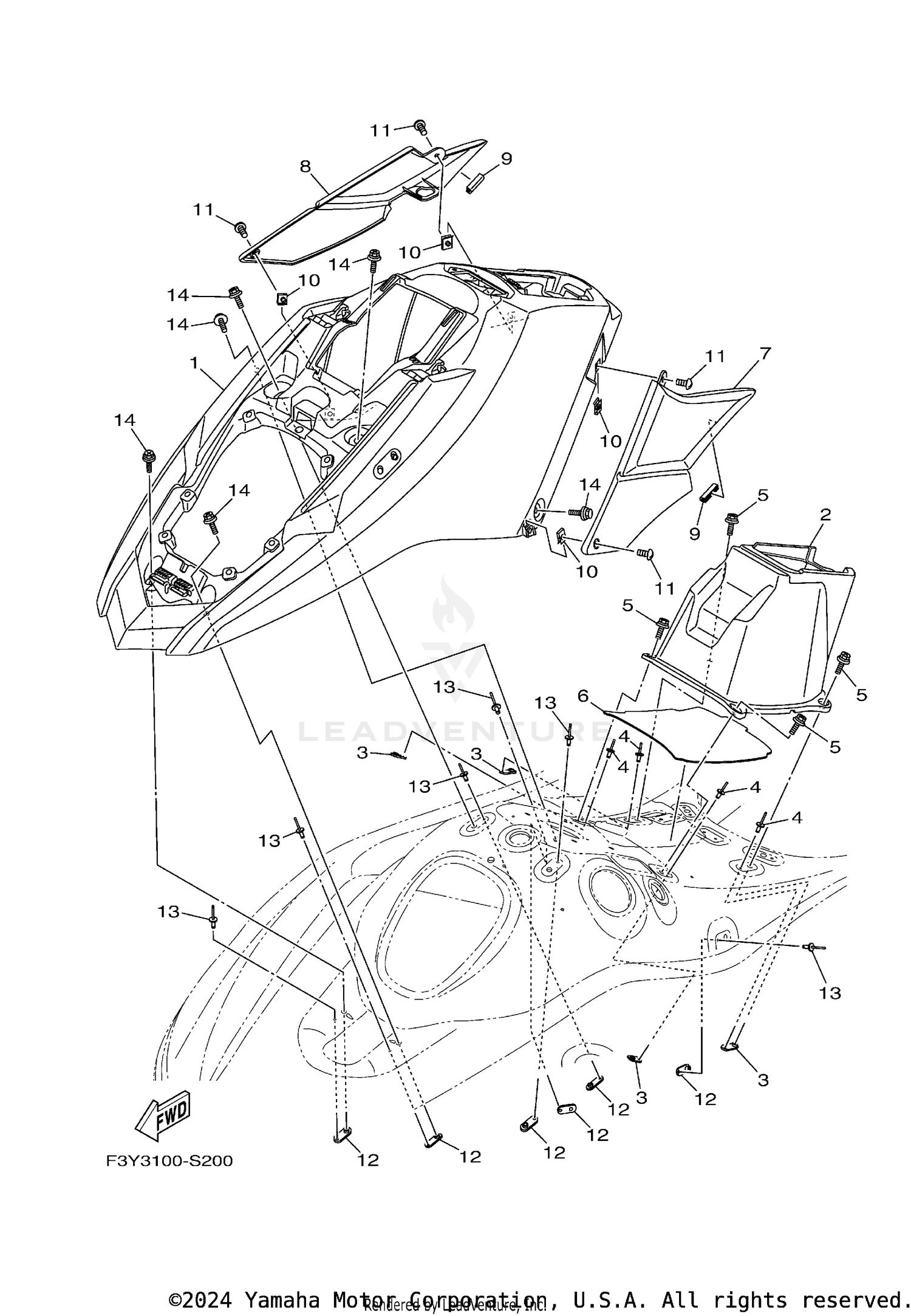

ENGINE HATCH 1
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | F3Y-U516N-00-00 | COVER, ENGINE HATCH Price: $171.99 |
| 2 | F3Y-U516P-00-00 | BOX GLOVE Price: $25.99 |
| 3 | F2X-U5175-00-00 | PLATE, FIX Price: $5.99 |
| 4 | 90267-48938-00 | RIVET, BLIND This part replaces 90267-489U1-00. Price: $5.49 |
| 5 | 90119-06878-00 | BOLT, WITH WASHER This part replaces 90119-06882-00. Price: $8.99 |
| 6 | F3Y-U759B-00-00 | MAT 1 Price: $18.99 |
| 9 | F3Y-U828H-00-00 | TRIM, 1 Price: $10.99 |
| 10 | 90183-06902-00 | NUT, SPRING Price: $12.49 |
| 11 | F4G-U7823-00-00 | SCREW Price: $2.20 |
| 12 | F2X-U5175-00-00 | PLATE, FIX Price: $5.99 |
| 13 | 90267-48938-00 | RIVET, BLIND This part replaces 90267-489U1-00. Price: $5.49 |
