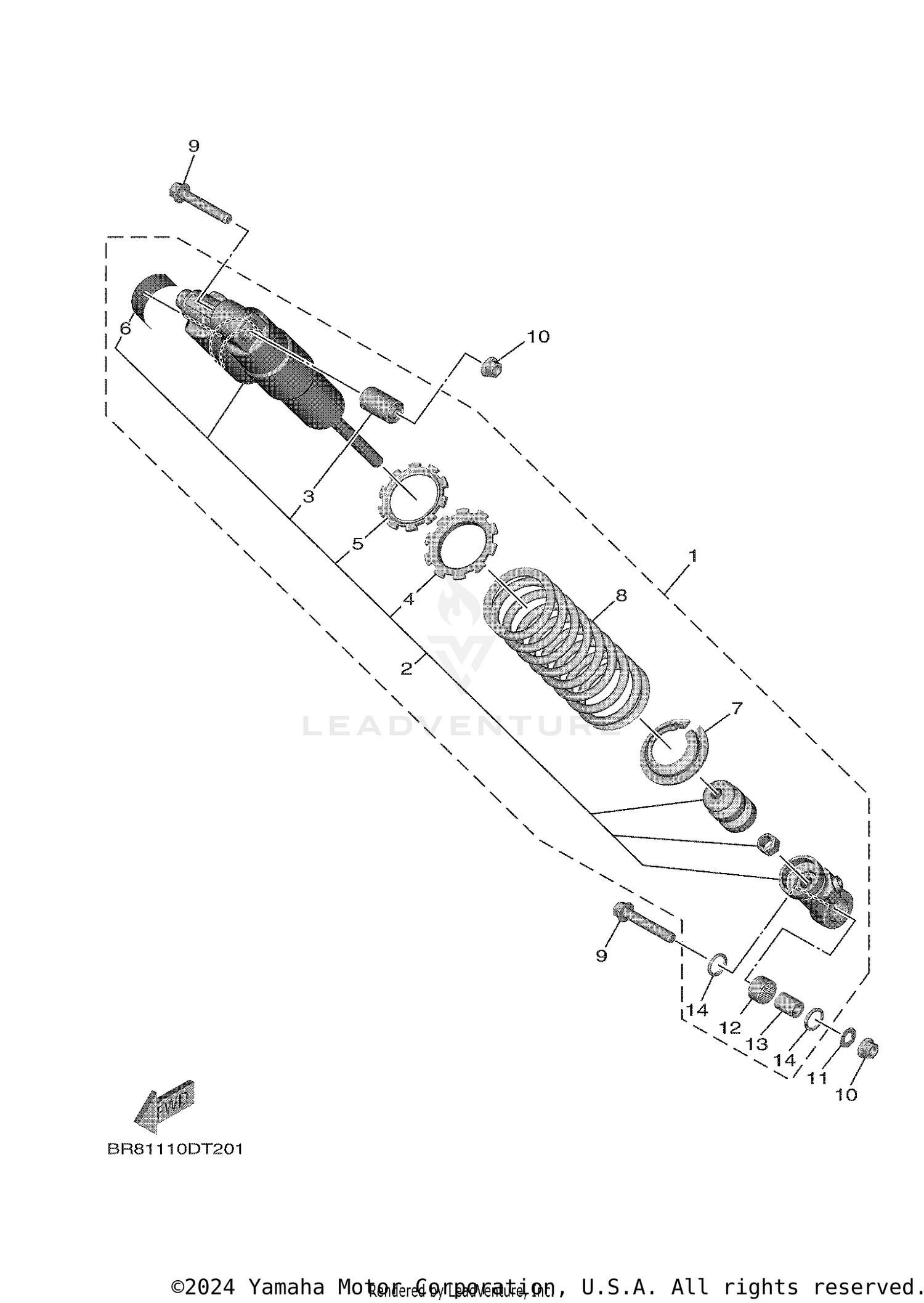

REAR ARM SUSPENSION
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BR8-22200-01-00 | SHOCK ABSORBER ASSY, REAR Price: $667.99 |
| 2 | BR8-22201-01-00 | DAMPER SUB ASSY Price: $698.99 |
| 3 | 4ES-22216-00-00 | BUSH, REAR SHOCK ABSORBER Price: $41.99 |
| 4 | 4ES-22214-00-00 | GUIDE, SPRING 1 Price: $33.99 |
| 5 | 4ES-22251-00-00 | NUT 1 Price: $30.99 |
| 6 | 4AA-22259-80-00 | LABEL, WARNING Price: $14.49 |
| 7 | BR8-22214-00-00 | GUIDE, SPRING 1 Price: $24.99 |
| 8 | BR8-22212-00-00 | SPRING (K=40N/MM) Price: $235.99 |
| 9 | 90105-10390-00 | BOLT, FLANGE Price: $8.49 |
| 10 | 90179-10024-00 | NUT Price: $11.49 |
| 11 | 90201-10045-00 | WASHER, PLATE Price: $9.49 |
| 12 | 5UN-22176-00-00 | BEARING Price: $35.99 |
| 13 | BR8-22184-00-00 | BUSH Price: $43.99 |
