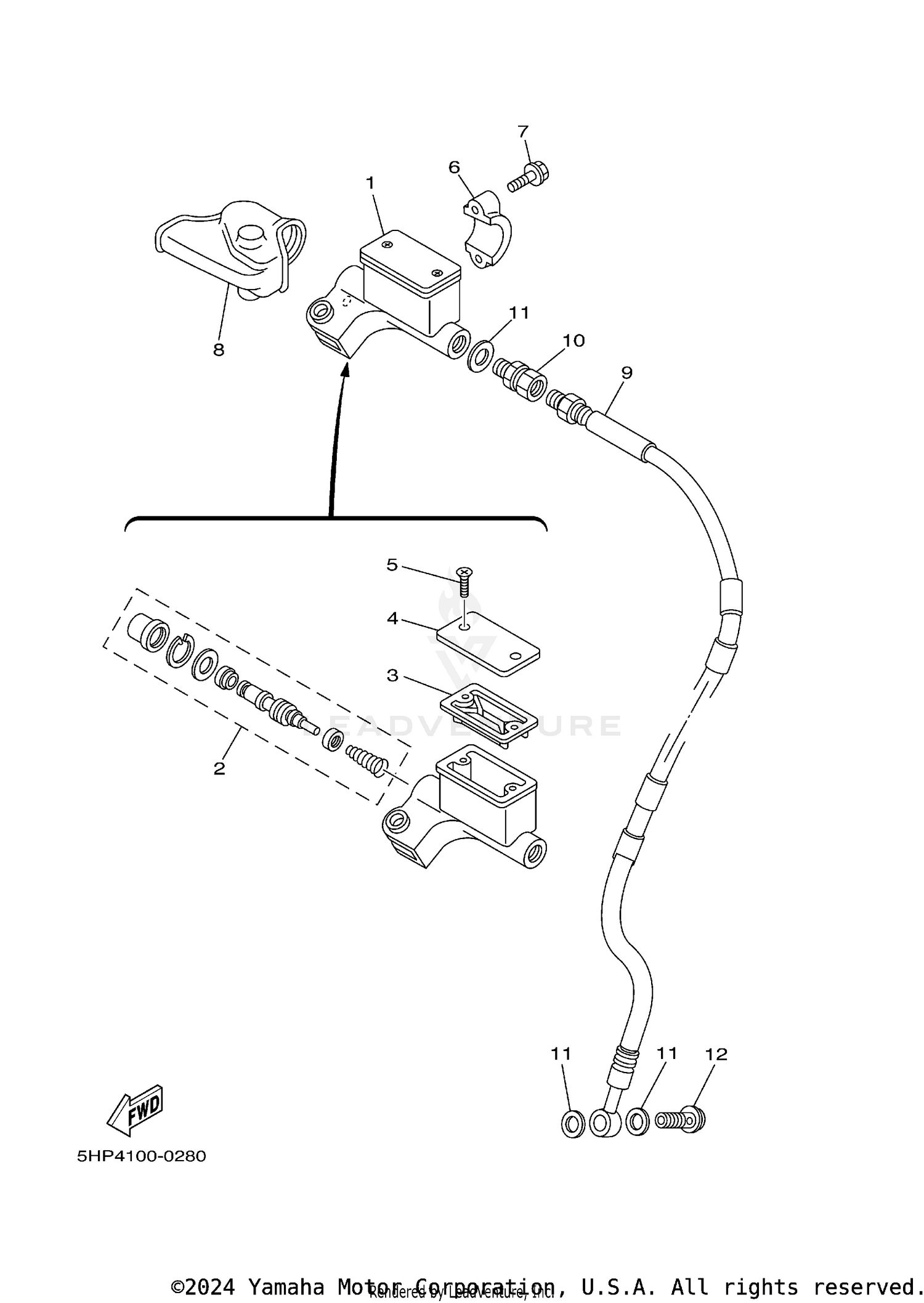

FRONT MASTER CYLINDER
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3SP-25870-01-00 | MASTER CYLINDER SUB ASSY Price: $380.99 |
| 2 | 3SP-W0041-00-00 | CYLINDER KIT, MASTER Price: $63.99 |
| 3 | 56A-25854-00-00 | DIAPHRAGM, RESERVOIR Price: $42.99 |
| 4 | 2VN-25852-02-00 | CAP, RESERVOIR This part replaces 2VN-25852-01-00. Price: $17.99 |
| 5 | 98707-04012-00 | SCREW, FLAT HEAD This part replaces 98706-04012-00. Price: $1.85 |
| 6 | 56A-25867-00-00 | BRACKET, MASTER CYLINDER Price: $31.99 |
| 7 | 95027-06025-00 | BOLT, FLANGE This part replaces 9502M-06025-00. Price: $4.16 |
| 8 | 1B2-F6372-00-00 | COVER, HANDLE LEVER 1 Price: $6.49 |
| 9 | 1B2-25872-00-00 | HOSE, BRAKE 1 Price: $142.99 |
| 10 | 3LC-25885-00-00 | JOINT Price: $31.99 |
| 11 | 90201-10118-00 | WASHER, PLATE Price: $3.80 |
