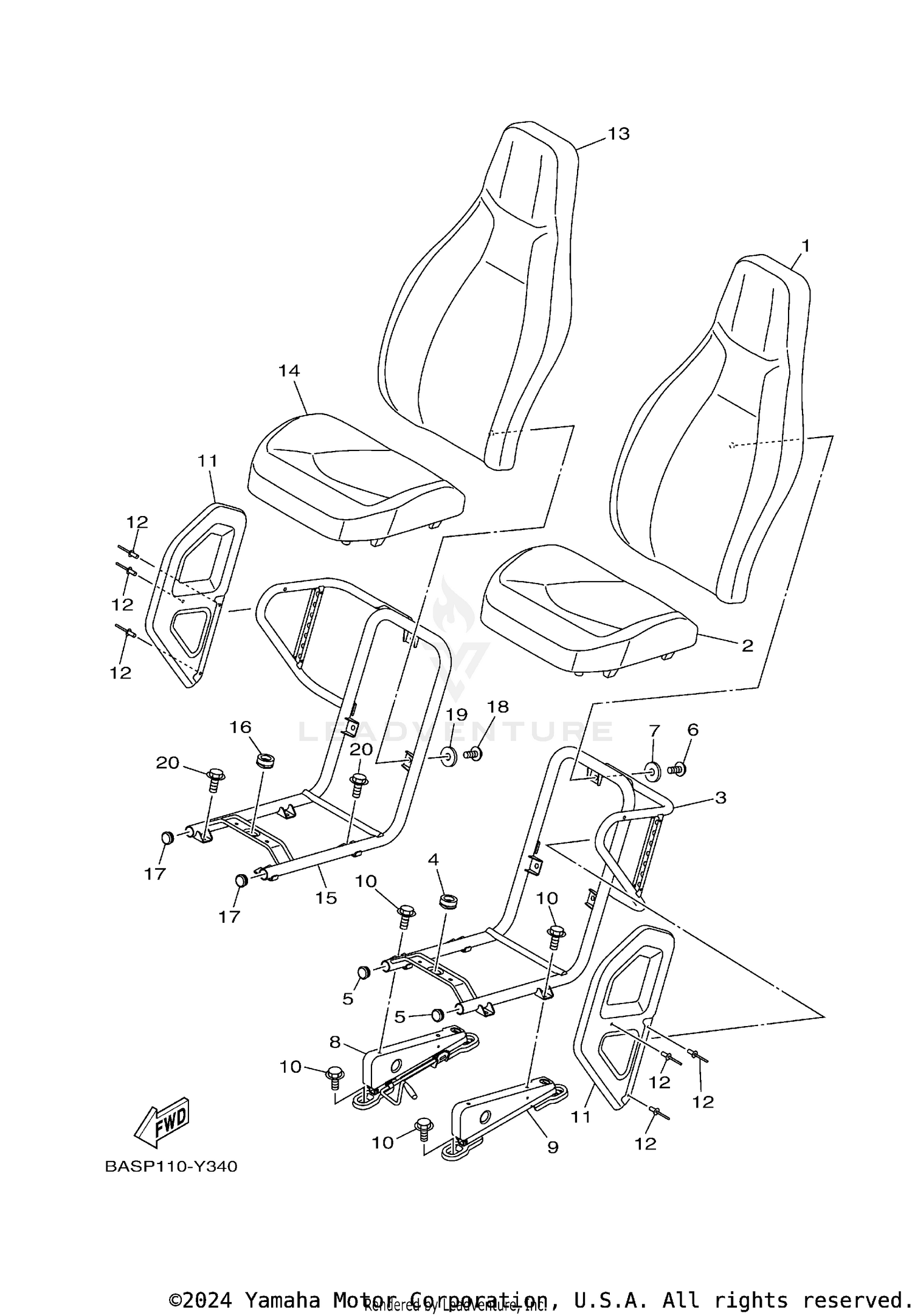

SEAT
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BAS-F4790-90-00 | SEAT BACK ASSY Price: $189.99 |
| 2 | BAS-F4700-90-00 | SEAT ASSY Price: $655.99 |
| 3 | 2HC-F473C-01-00 | FRAME, SEAT 1 Price: $275.99 |
| 4 | 1XD-F4742-00-00 | GROMMET Price: $4.00 |
| 5 | 2HC-F2417-00-00 | PLUG Price: $2.35 |
| 6 | 90111-06180-00 | BOLT,HEX. SOCKET BUT Price: $2.20 |
| 7 | 90201-06095-00 | WASHER, PLATE This part replaces 90201-06063-00. Price: $9.49 |
| 8 | BAS-F7270-00-00 | ADJUSTER ASSY Price: $352.99 |
| 9 | BAS-F7260-00-00 | ADJUSTER ASSY Price: $172.99 |
| 10 | 95817-08012-00 | BOLT, FLANGE This part replaces 95812-08012-00. Price: $5.49 |
| 11 | 2HC-F475X-01-00 | COVER,2 Price: $44.99 |
| 12 | 90267-489U9-00 | RIVET, BLIND Price: $4.30 |
| 13 | BAS-F4790-90-00 | SEAT BACK ASSY Price: $189.99 |
| 14 | BAS-F4700-90-00 | SEAT ASSY Price: $655.99 |
| 15 | 2HC-F473D-01-00 | FRAME, SEAT 2 Price: $274.99 |
| 16 | 1XD-F4742-00-00 | GROMMET Price: $4.00 |
| 17 | 2HC-F2417-00-00 | PLUG Price: $2.35 |
| 18 | 90111-06180-00 | BOLT,HEX. SOCKET BUT Price: $2.20 |
| 19 | 90201-06095-00 | WASHER, PLATE This part replaces 90201-06063-00. Price: $9.49 |
